17Door Mounted Spare Tire Carrier

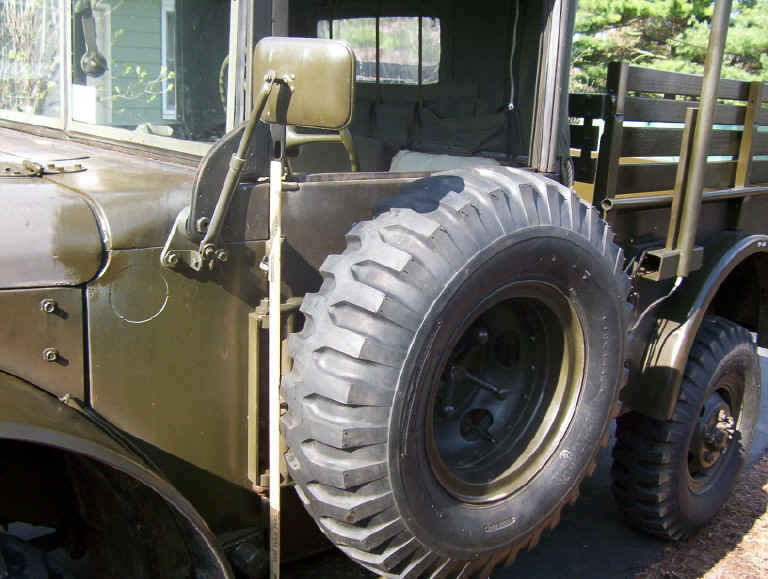

These are a sketch and some photos of Carter's door mounted spare tire carrier showing the layout and placement of the hinge and cab brace that can be used when installing a door mounted spare on a truck that previously did not have one mounted or to insure that you have all the parts when re-mounting one on a truck. Note that the yardstick is resting on the top of the running board in the photos where the bottom is not shown in the shot...
| 1 |
2 |
3 |
4 |
| 5 |
6 |
7 |
8 |
| 9 |
10 |
11 |
12 |
| 13 |
14 |
15 |
16 |
| 17 |
| Image | Title |

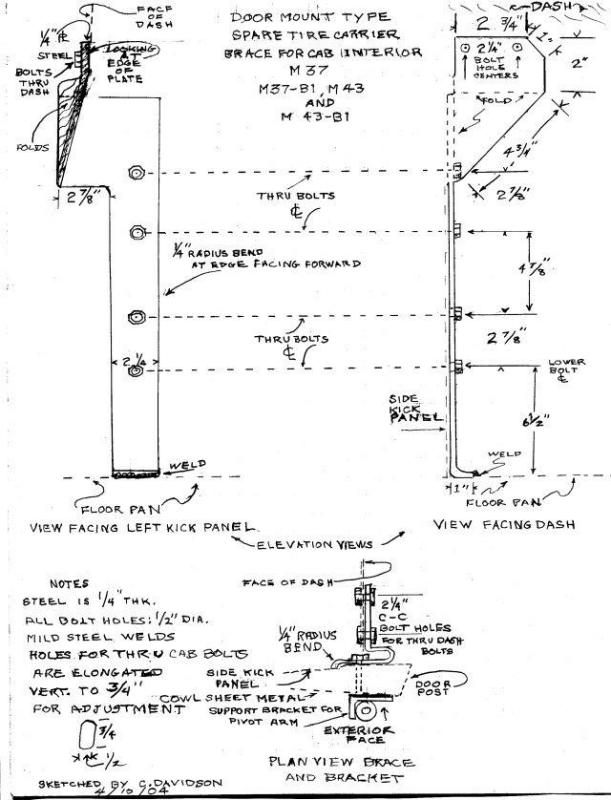

| 1 | Sketch showing the cab brace and arrangement of bolts and assorted hardware. |

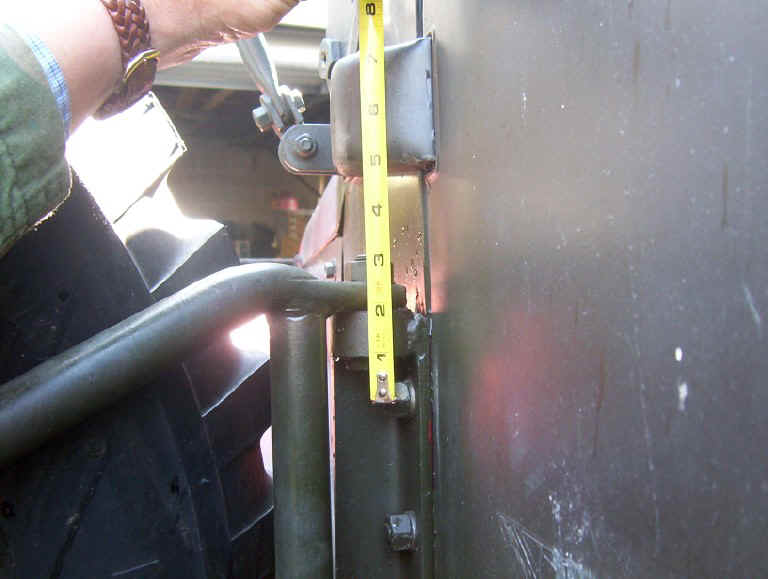

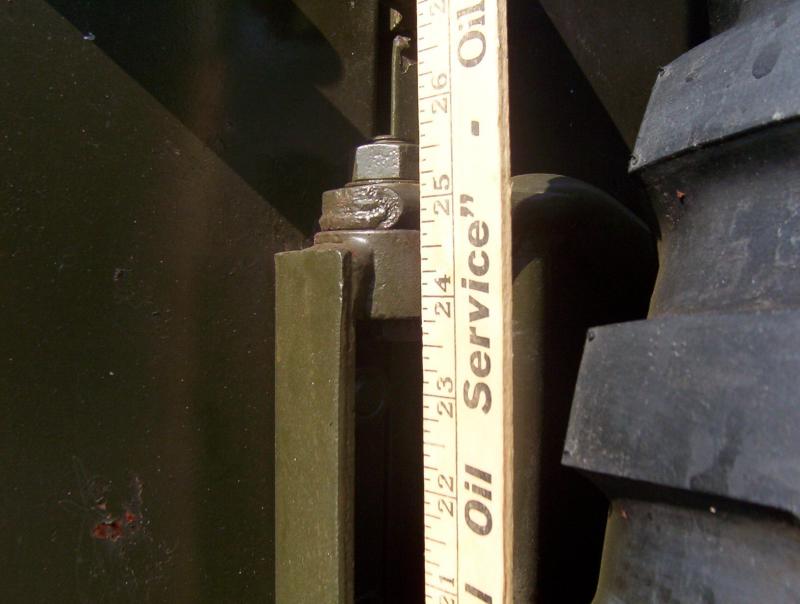

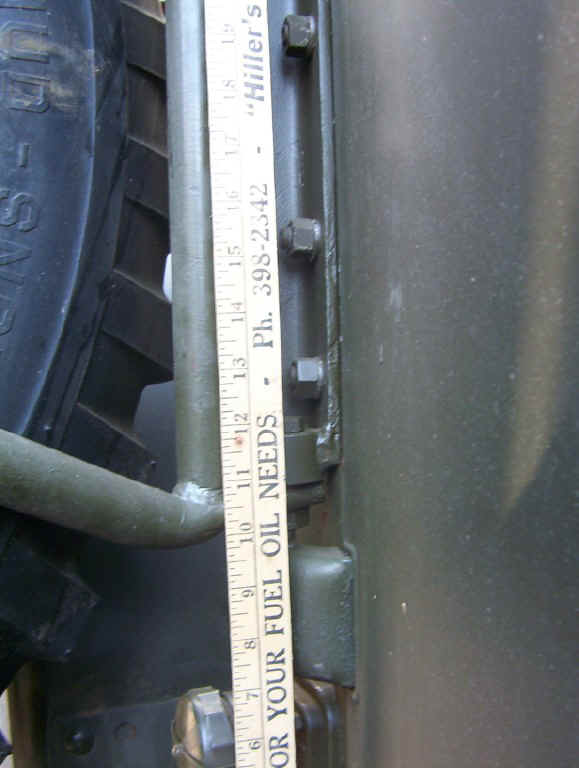

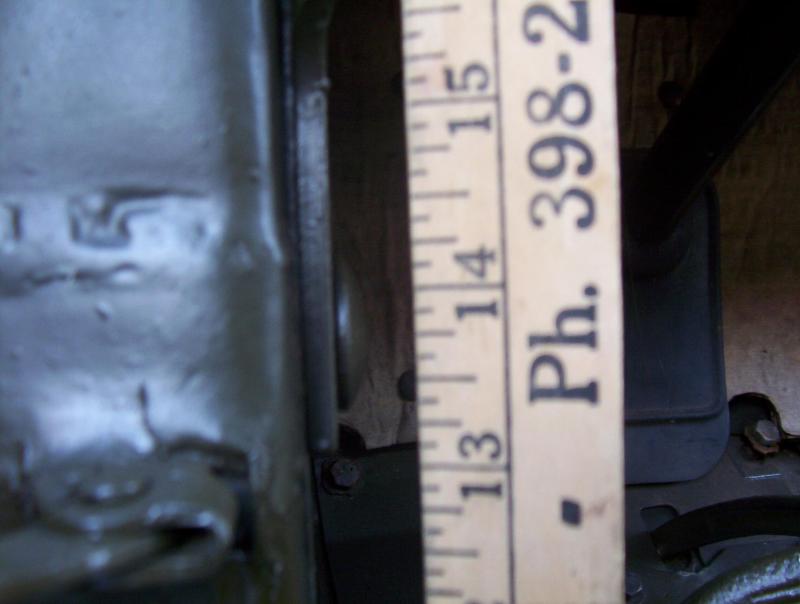

| 2 | Location of the top of the hinge relative to the running board (yardstick is sitting on the running board). |

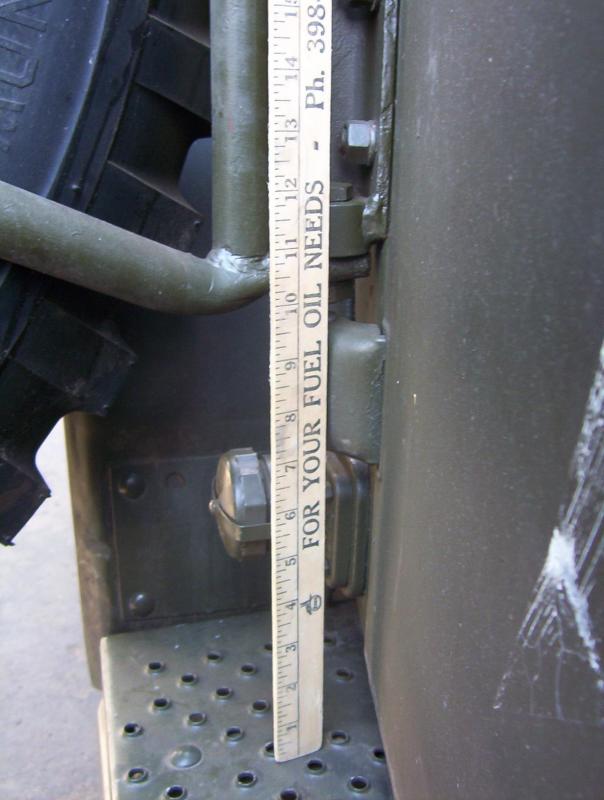

| 3 | Location of the bottom of the hinge relative to the running board (yardstick is sitting on the running board). |

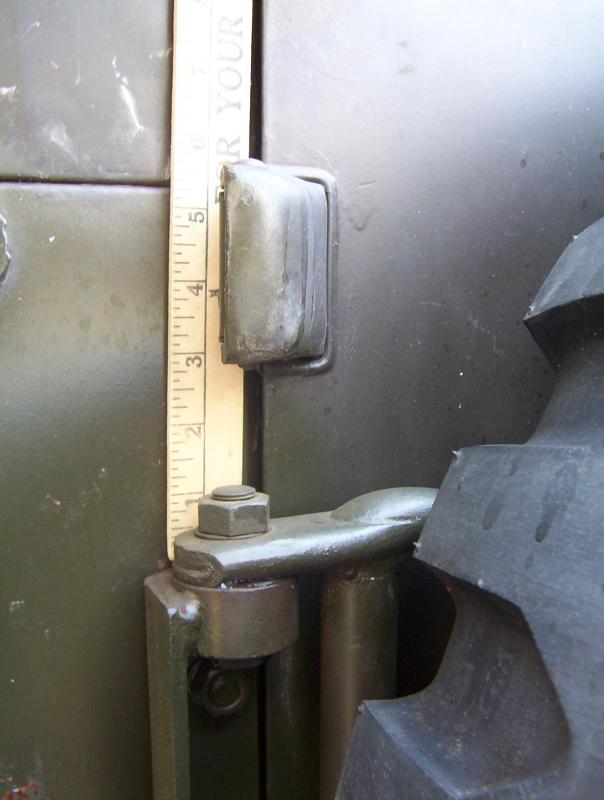

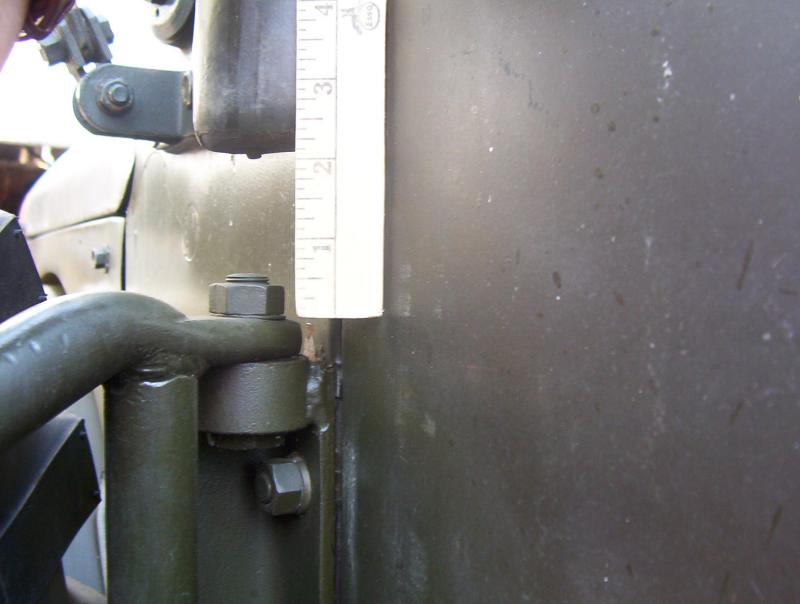

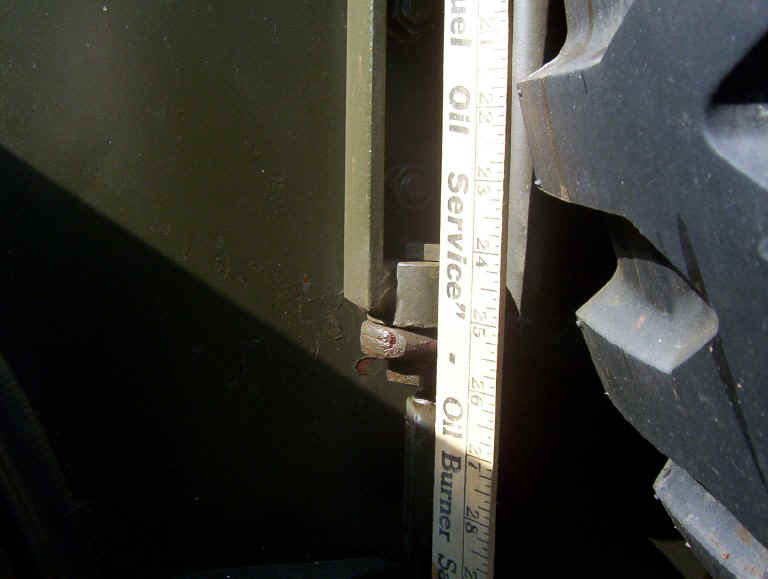

| 4-5 | Relation of the top of the tire carrier hinge to the top door hinge. |

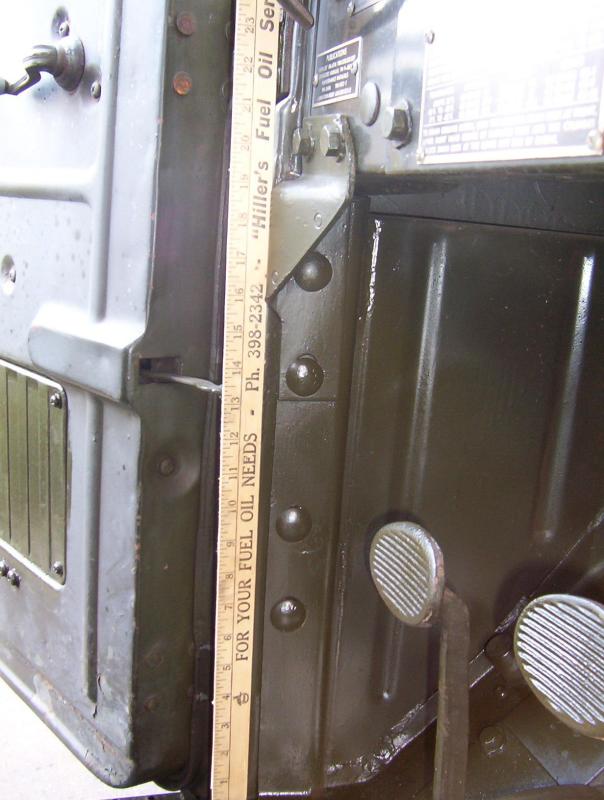

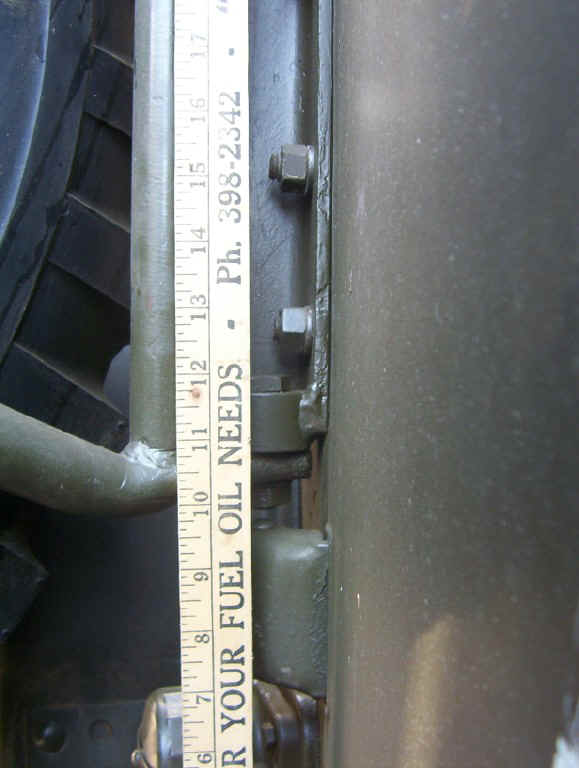

| 6 | Bottom of cab brace on door, yardstick resting on running board. |

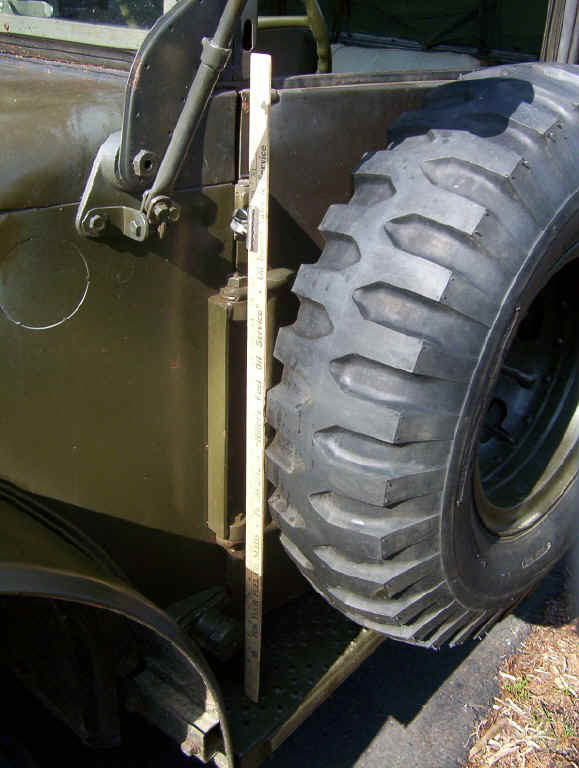

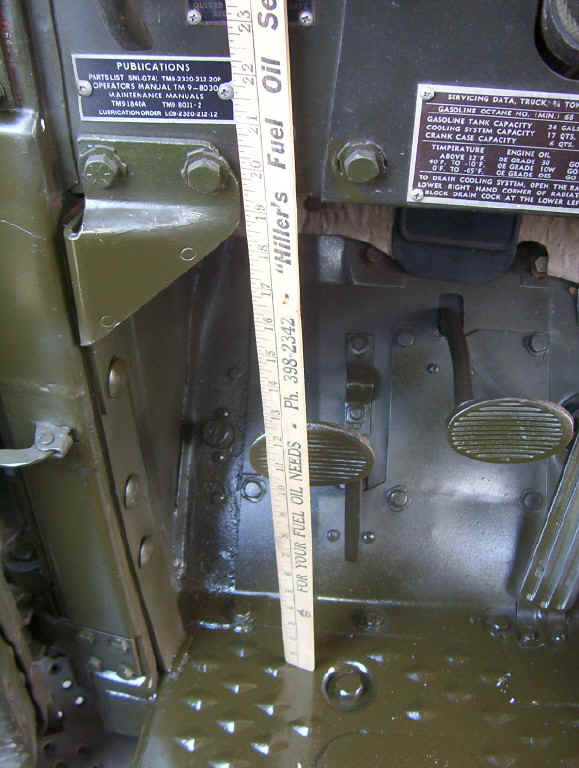

| 7 | Cab corner brace, yardstick is resting on the running board. |

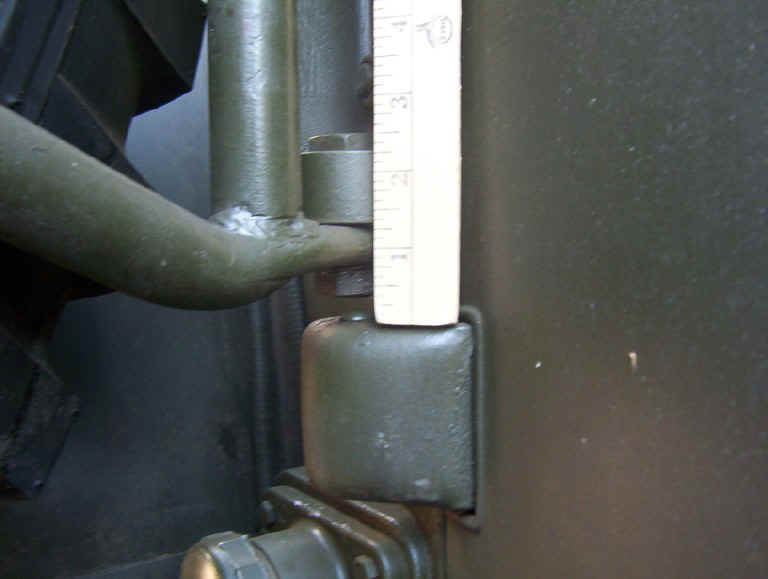

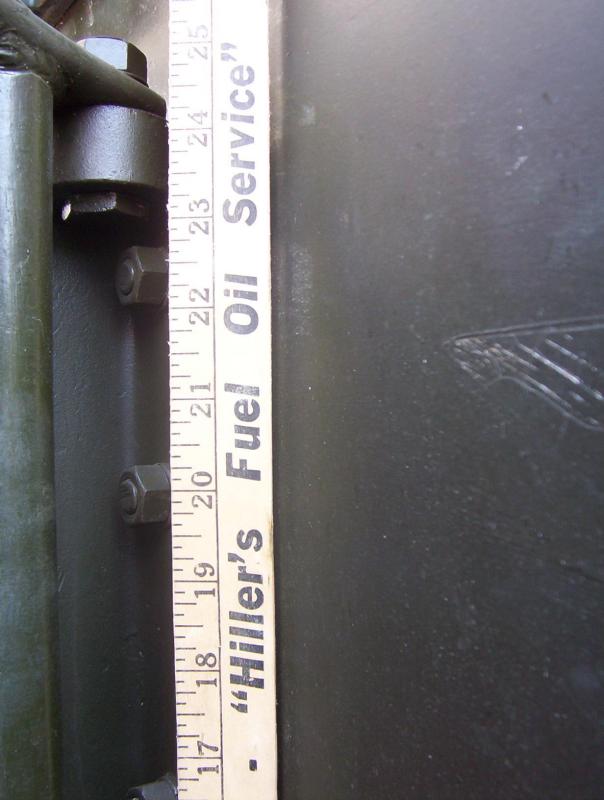

| 8 | Location of the top of the hinge relative to the running board (yardstick is sitting on the running board). |

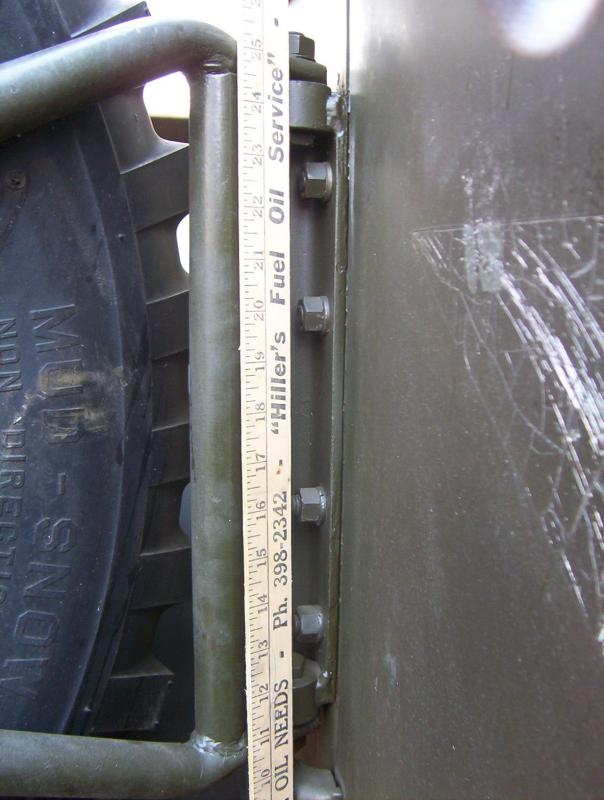

| 9 | Location of the hinge relative to the running board (yardstick is sitting on the running board). |
