Photos of my 1960 M101 3/4 ton trailer.

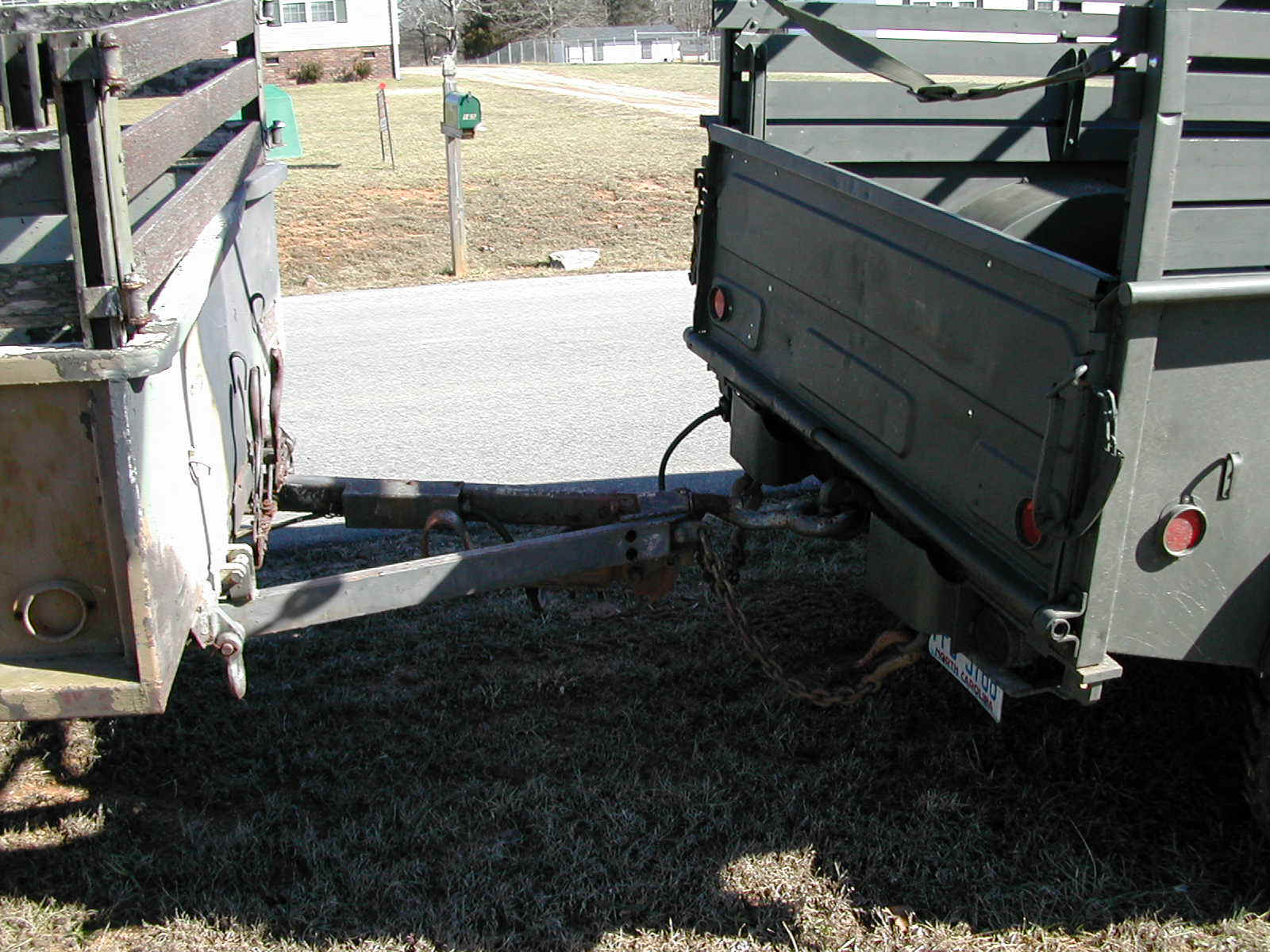

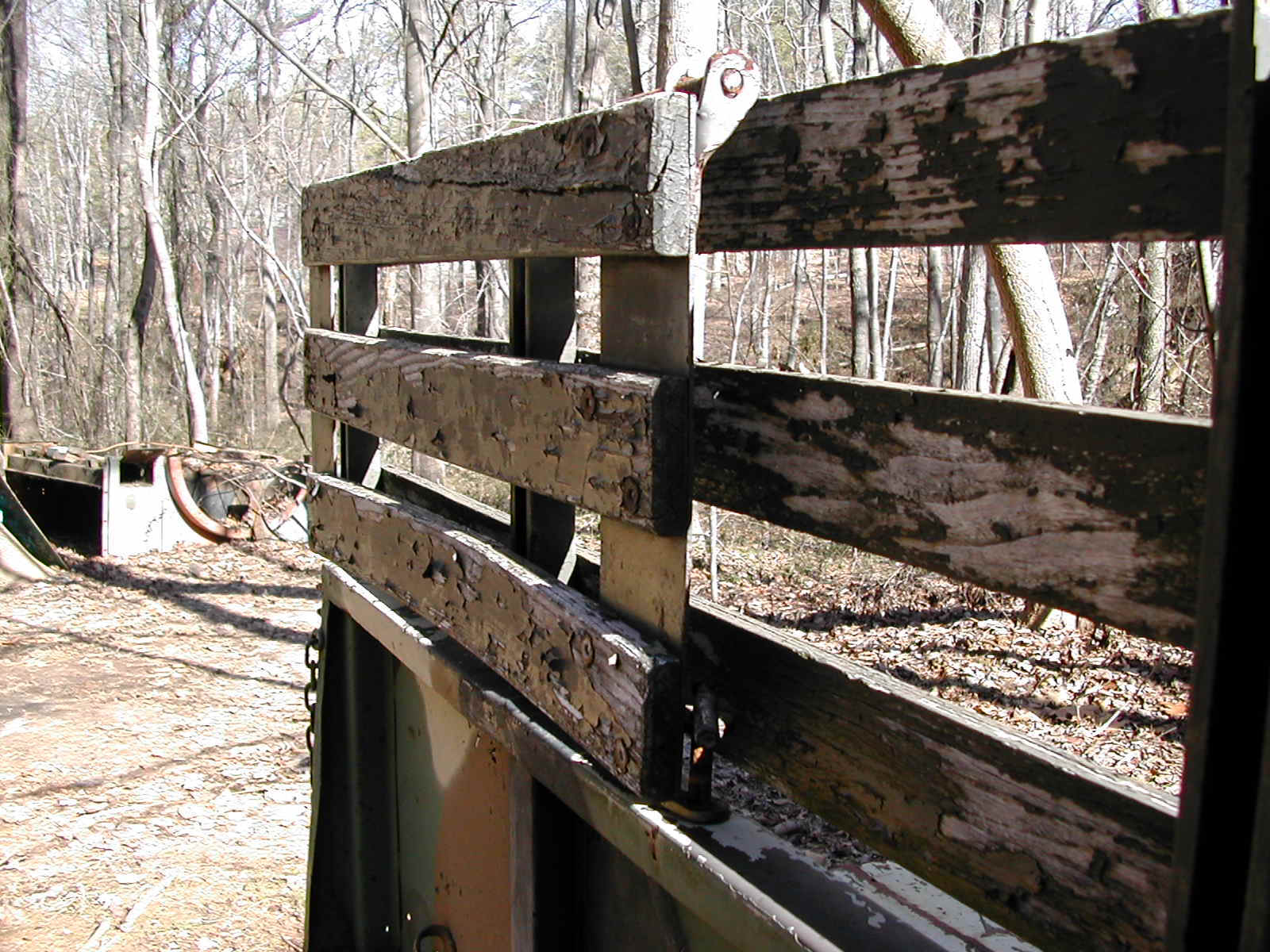

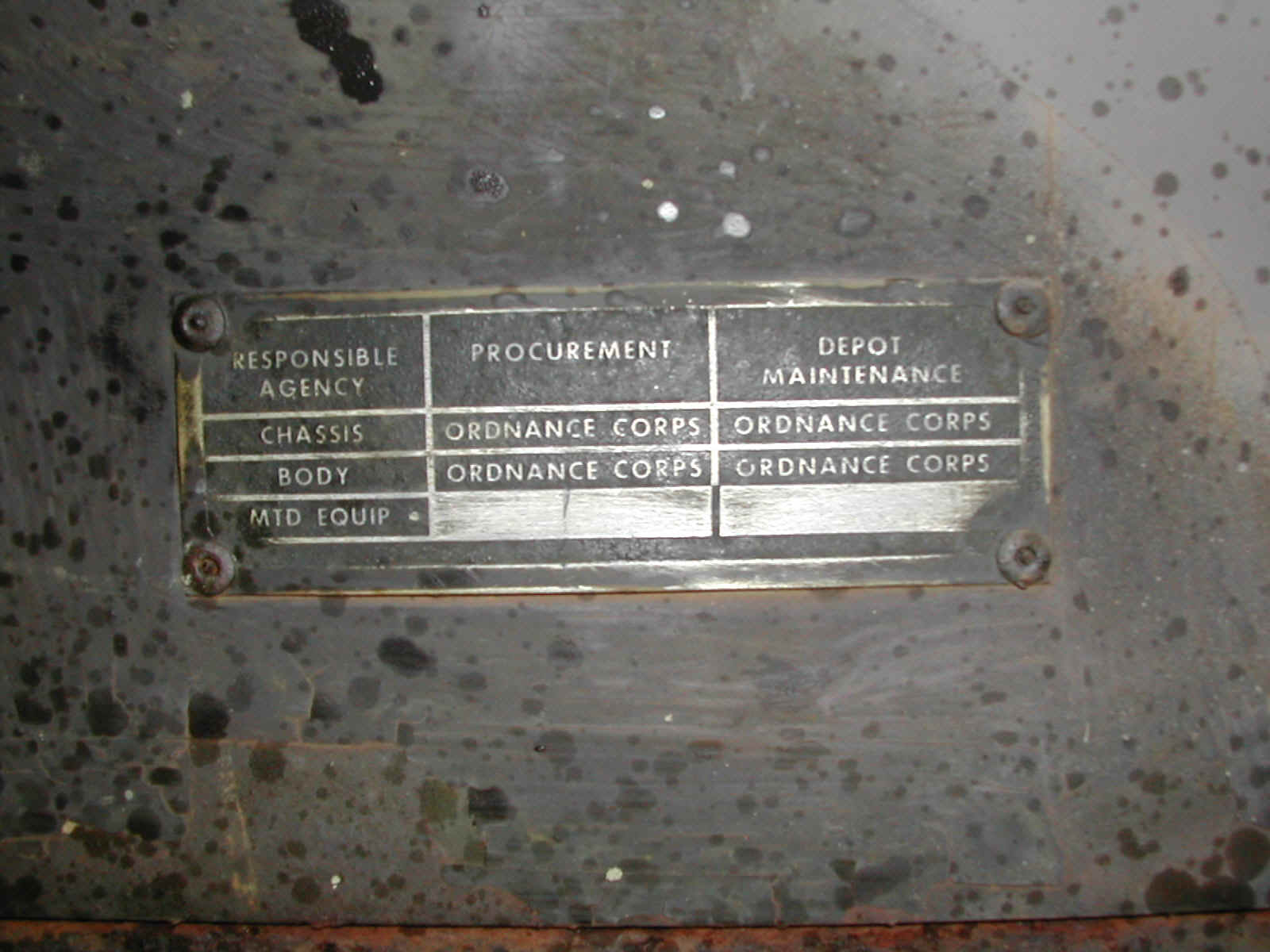

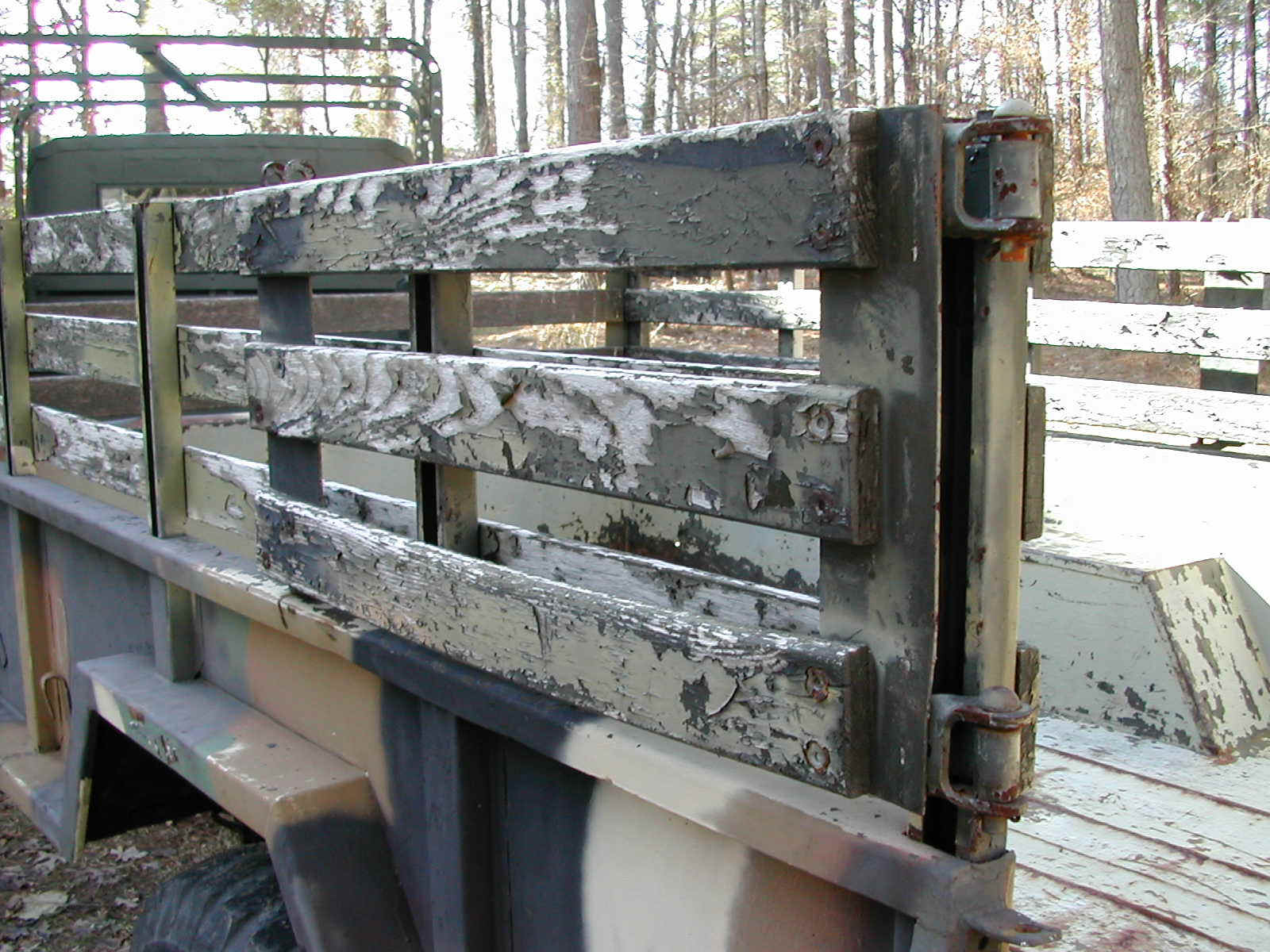

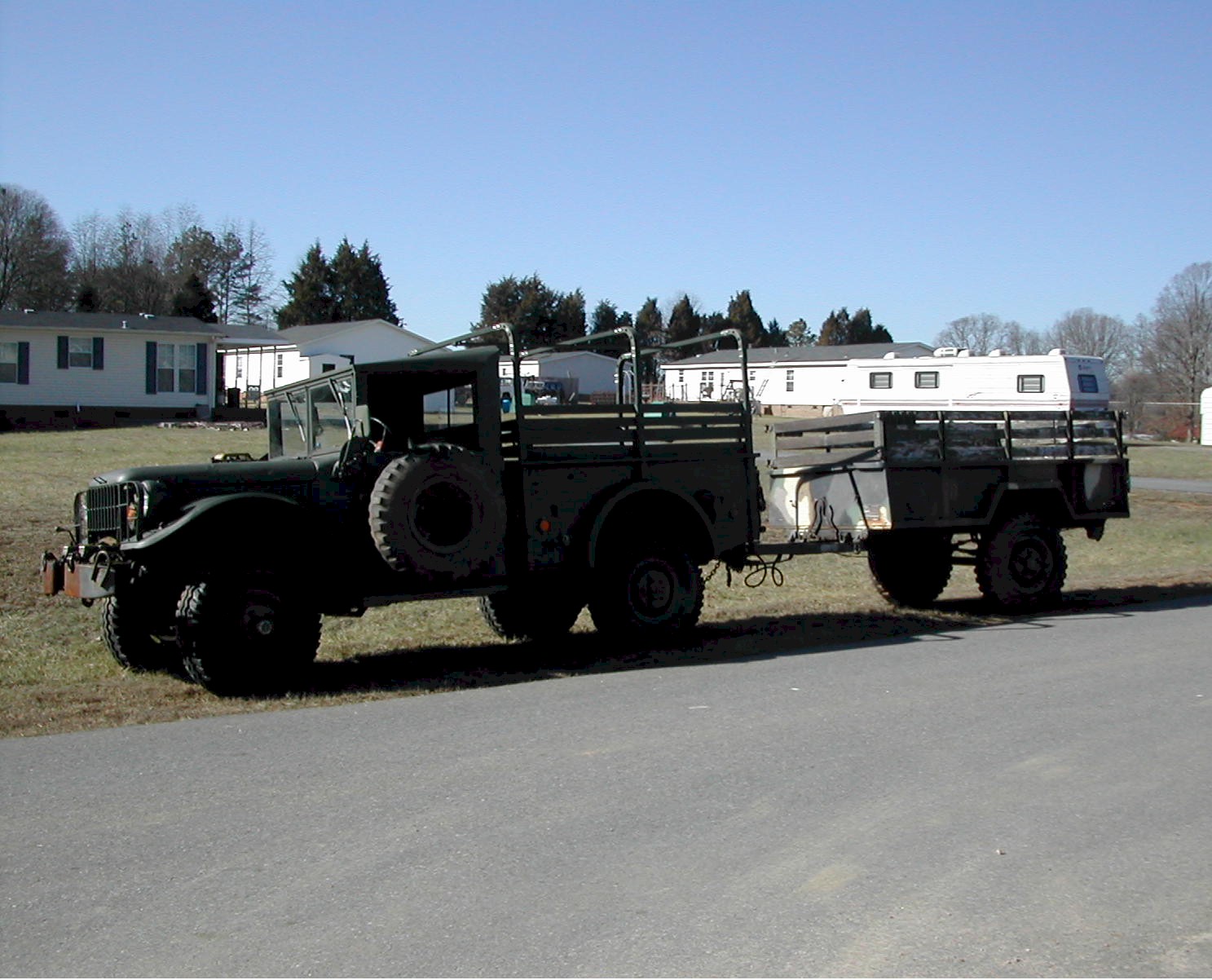

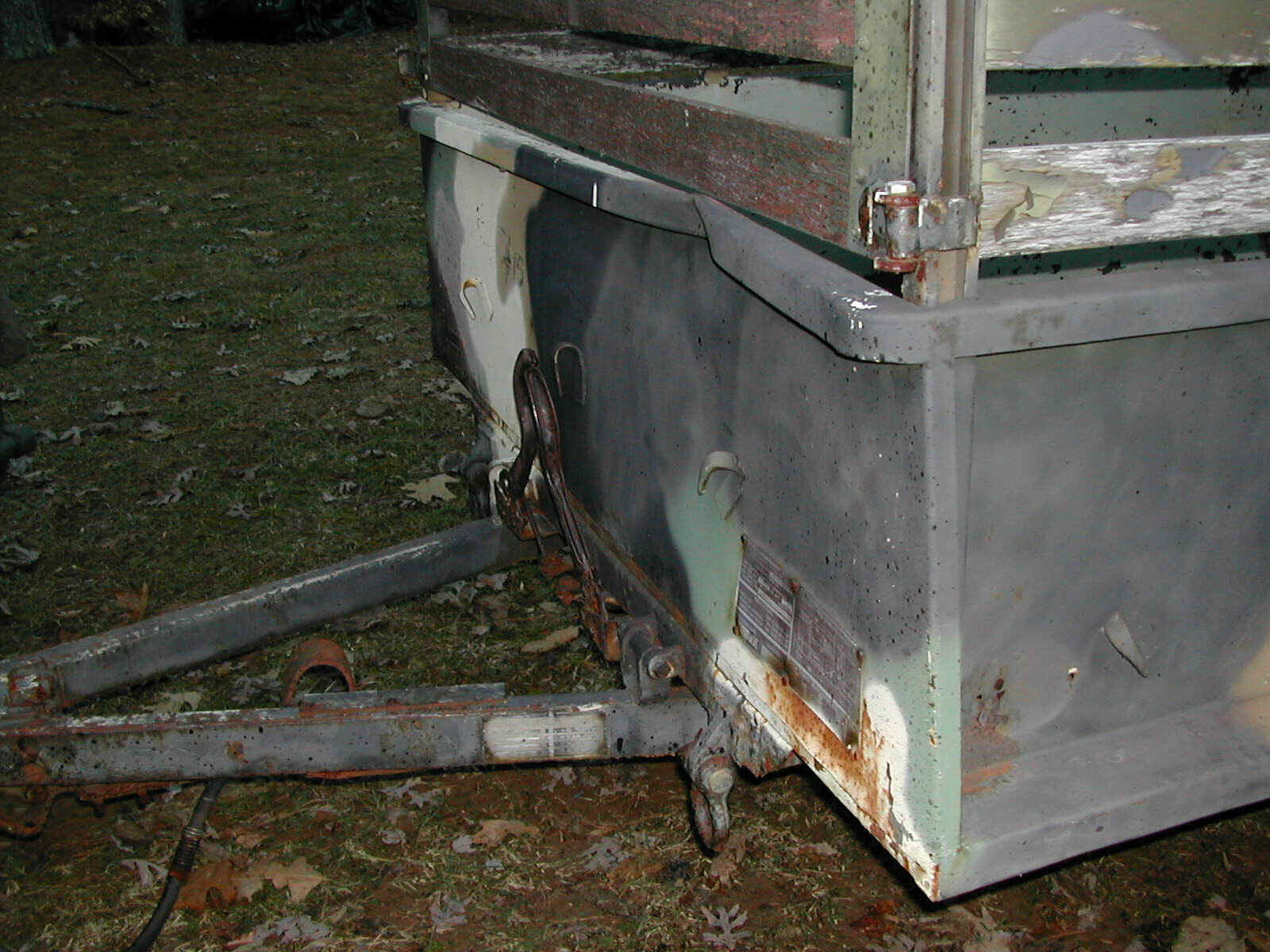

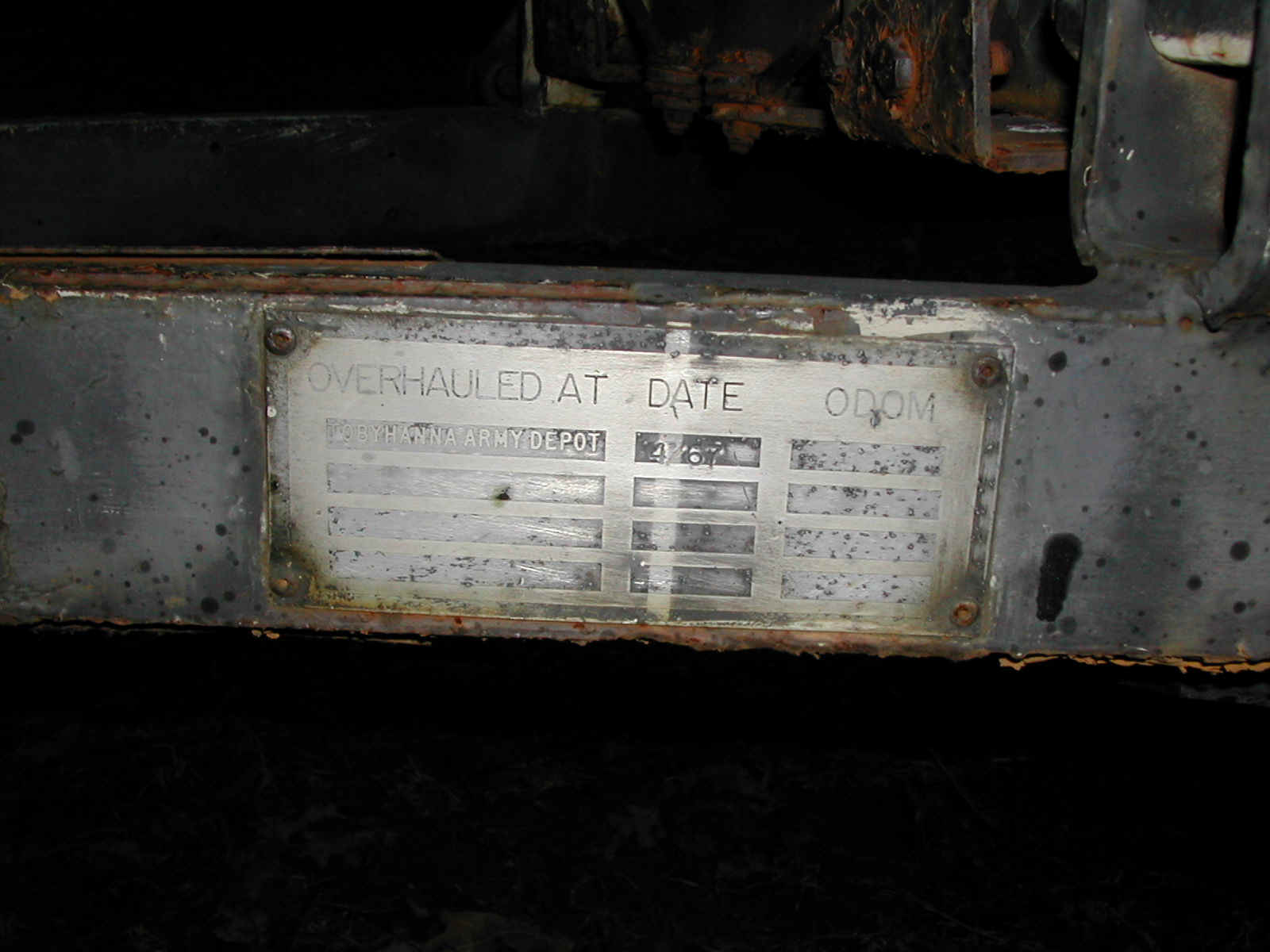

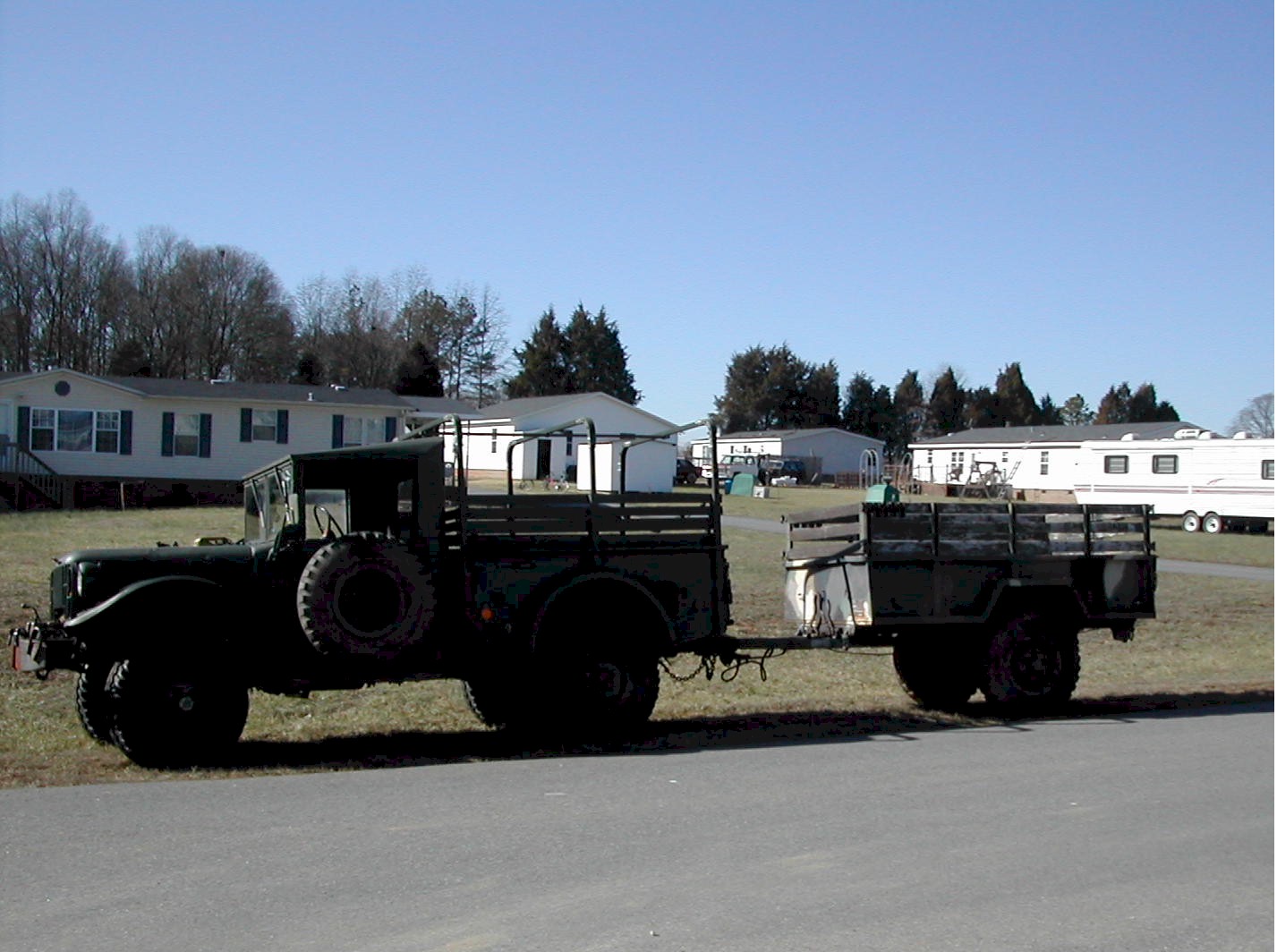

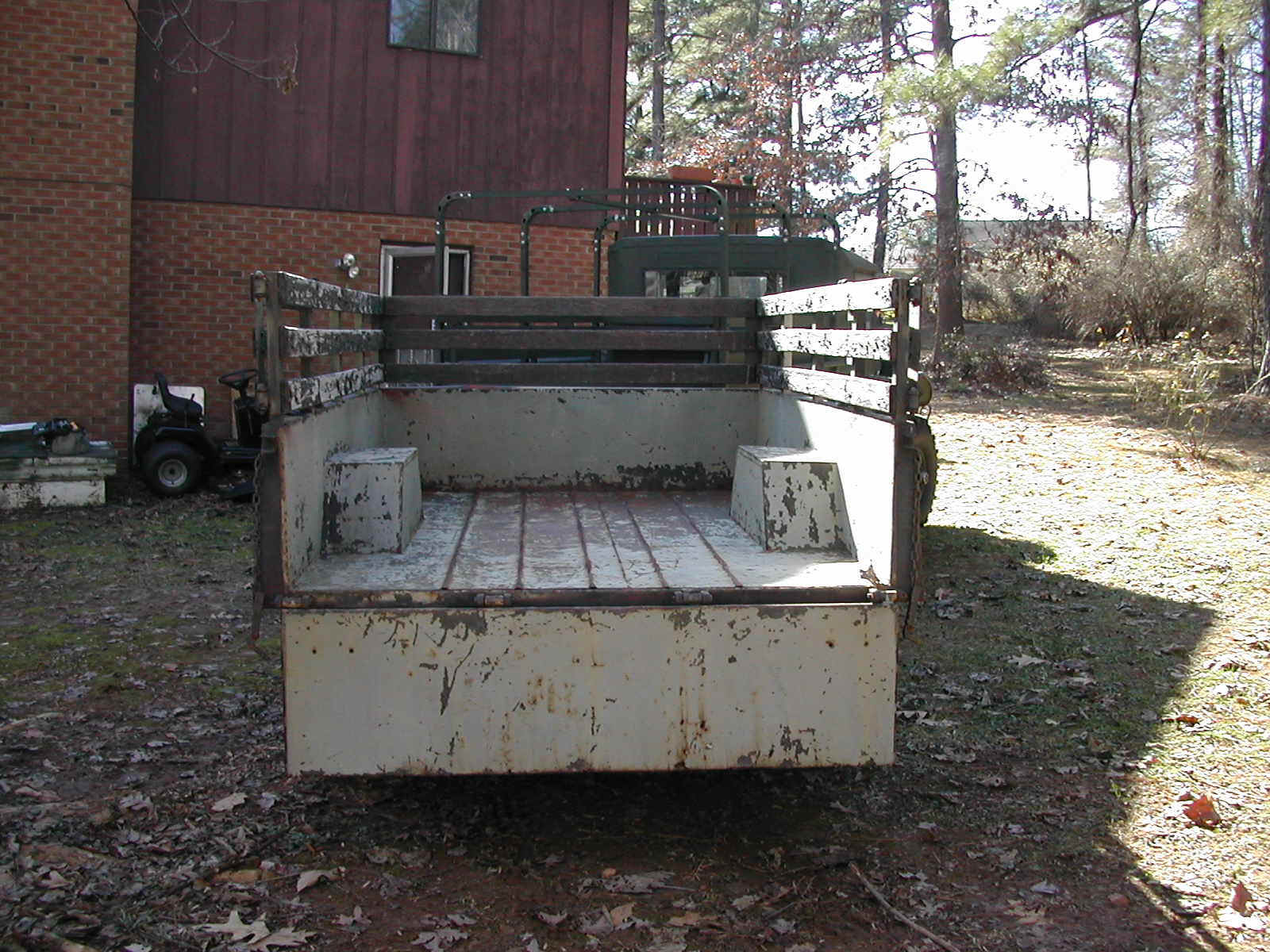

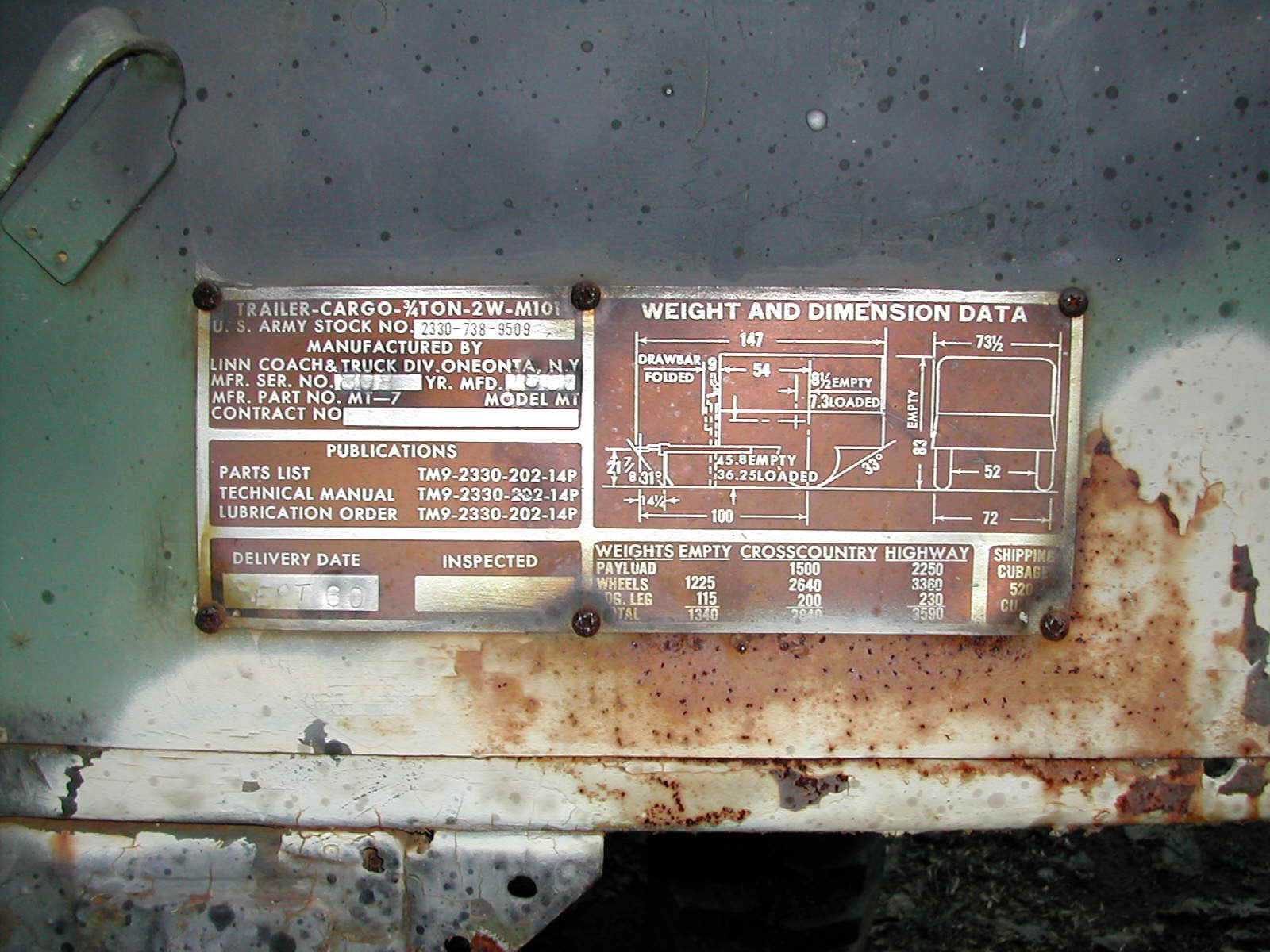

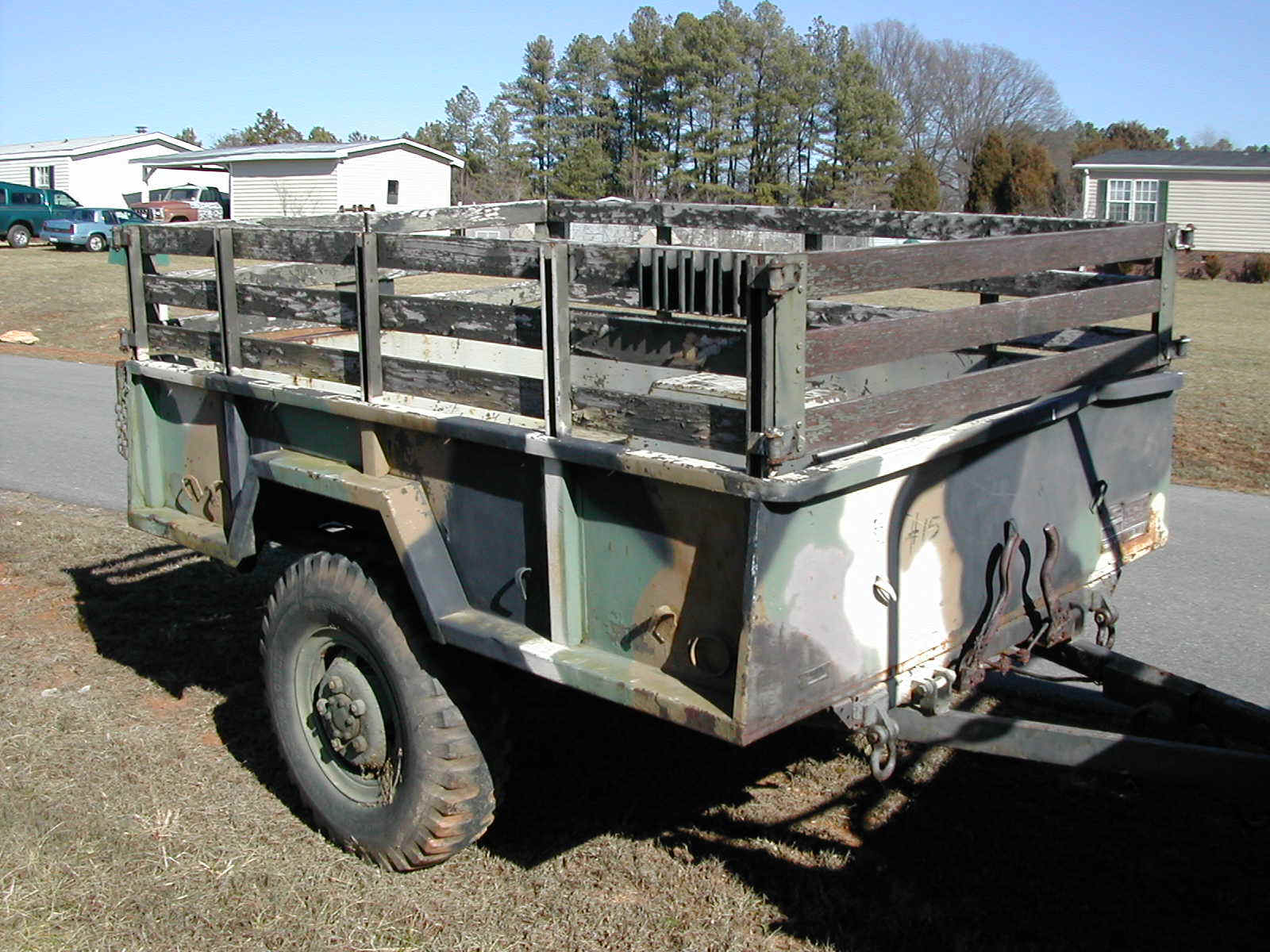

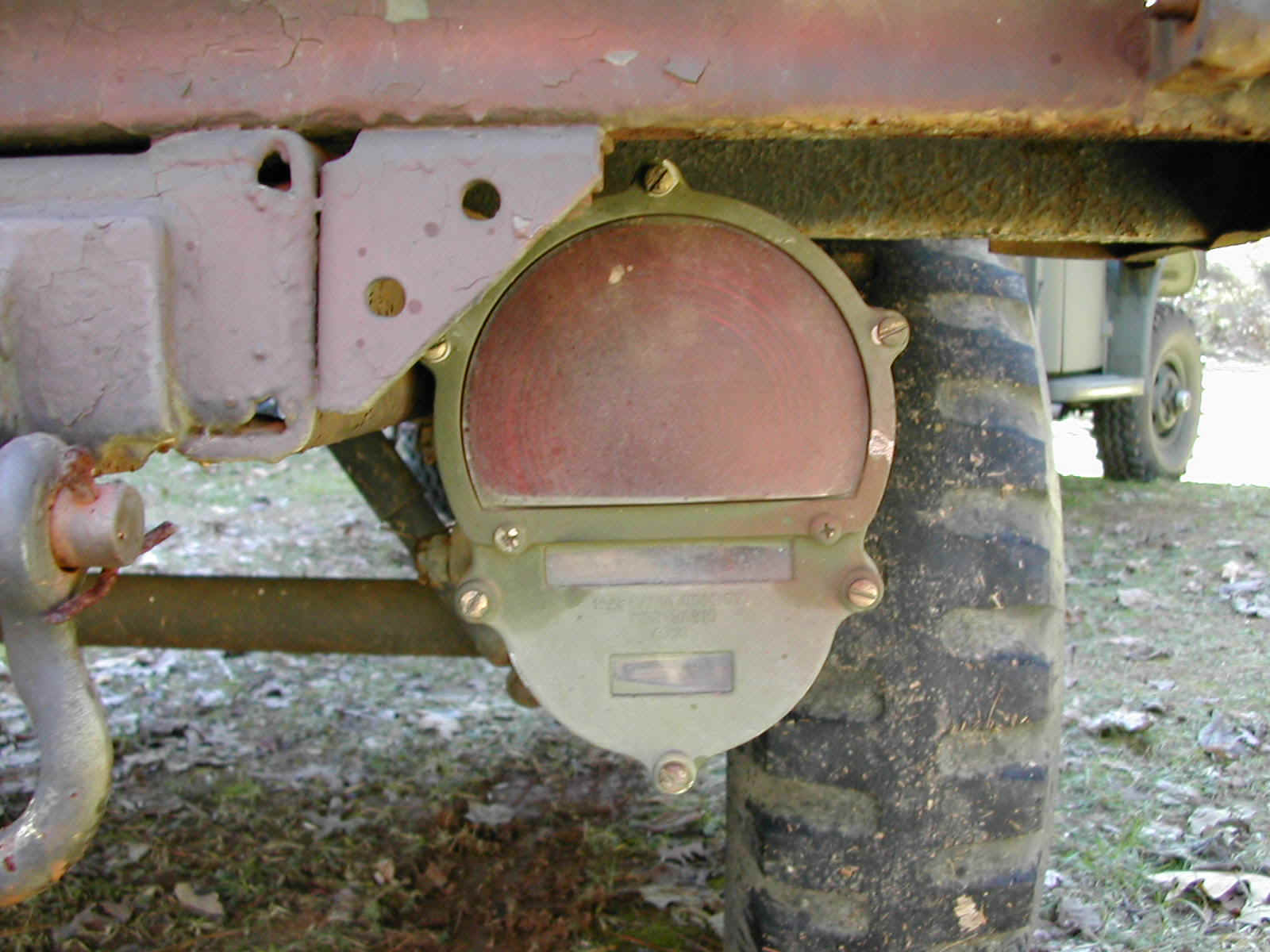

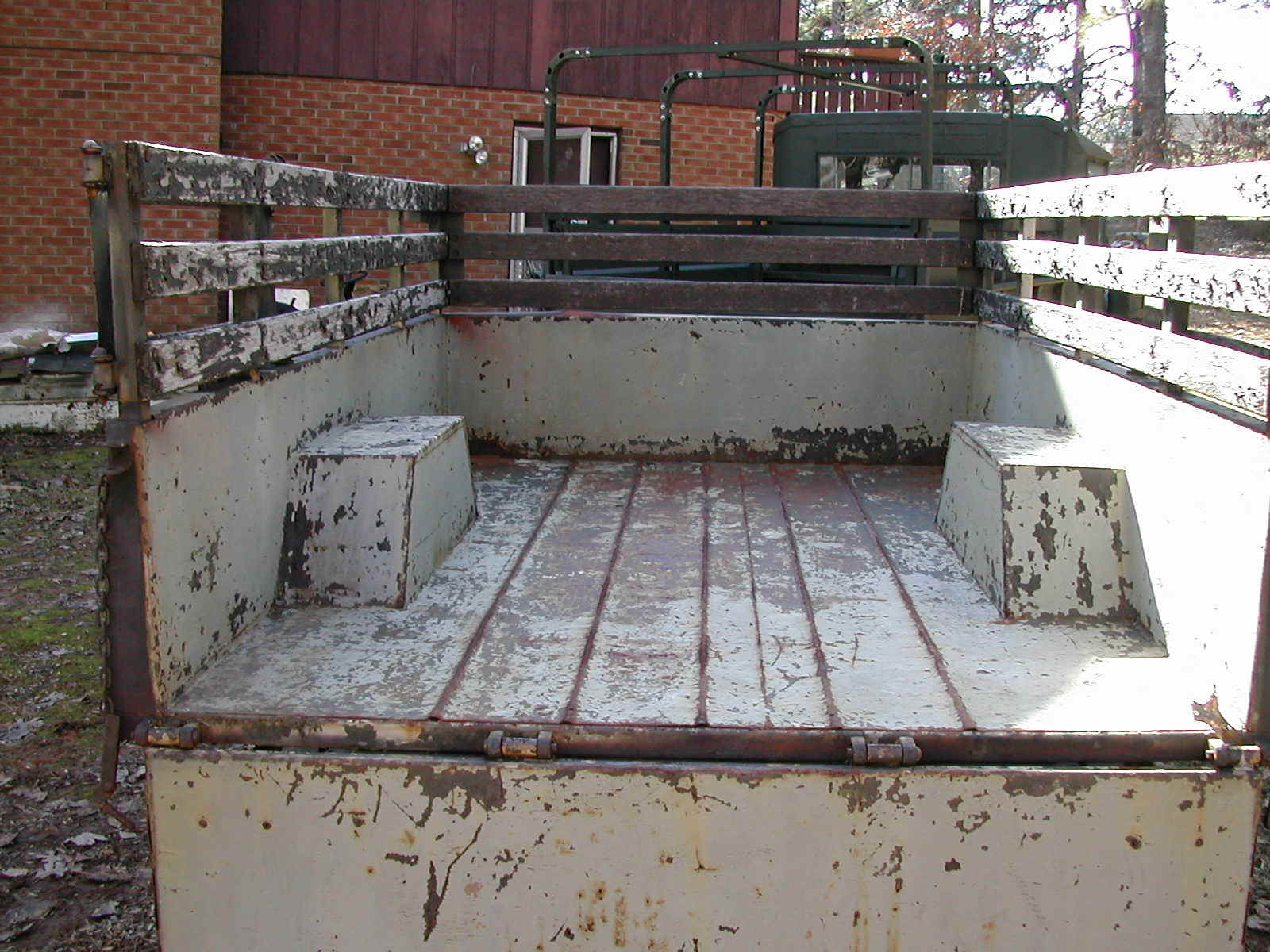

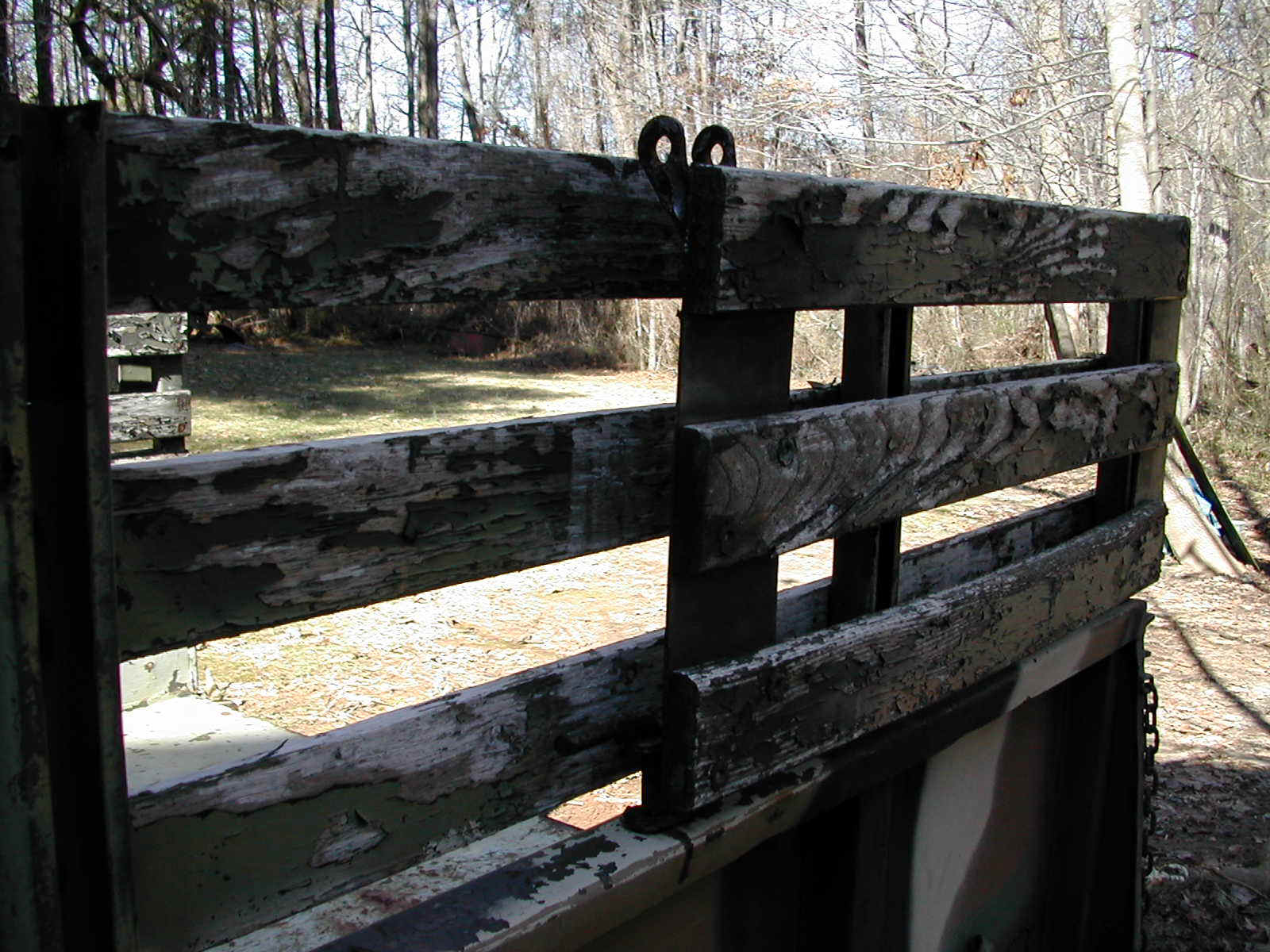

These are some photos that I took of my 1960 M101 3/4 ton trailer on the day that I purchased it in China Grove, NC.  This trailer is one of the first generation 3/4 ton trailers that was designed to be towed behind the M37 and was built by Linn Coach and Truck Division in New York.  The trailer went through an overhaul at Tobyhanna Army Depot in 1967 where I believe it received the newer style wiring harness and taillights, but retained the wheels and hubs that match the M37.

If you have questions about any of these photos, send me an email and I'll try to provide an answer.

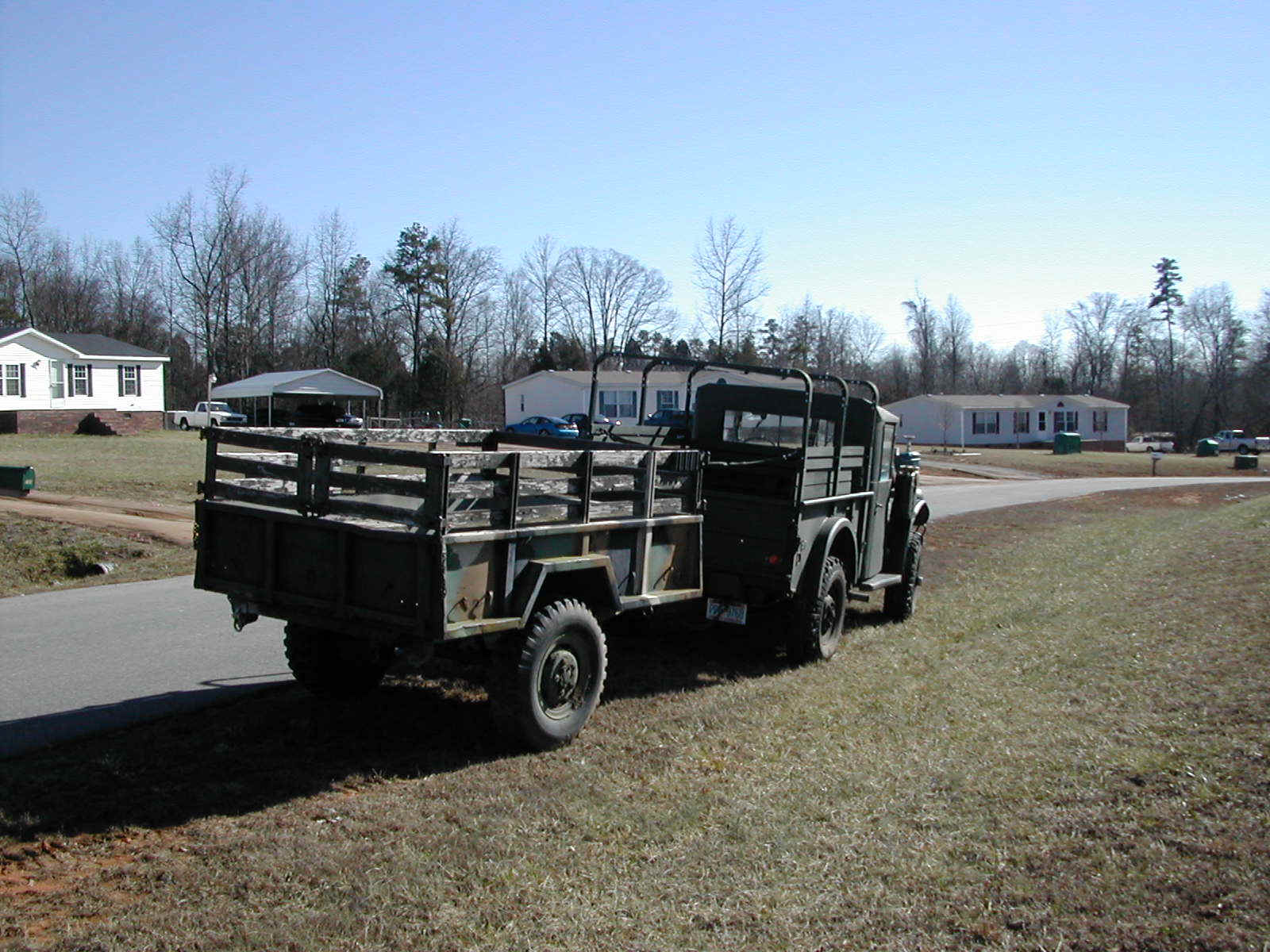

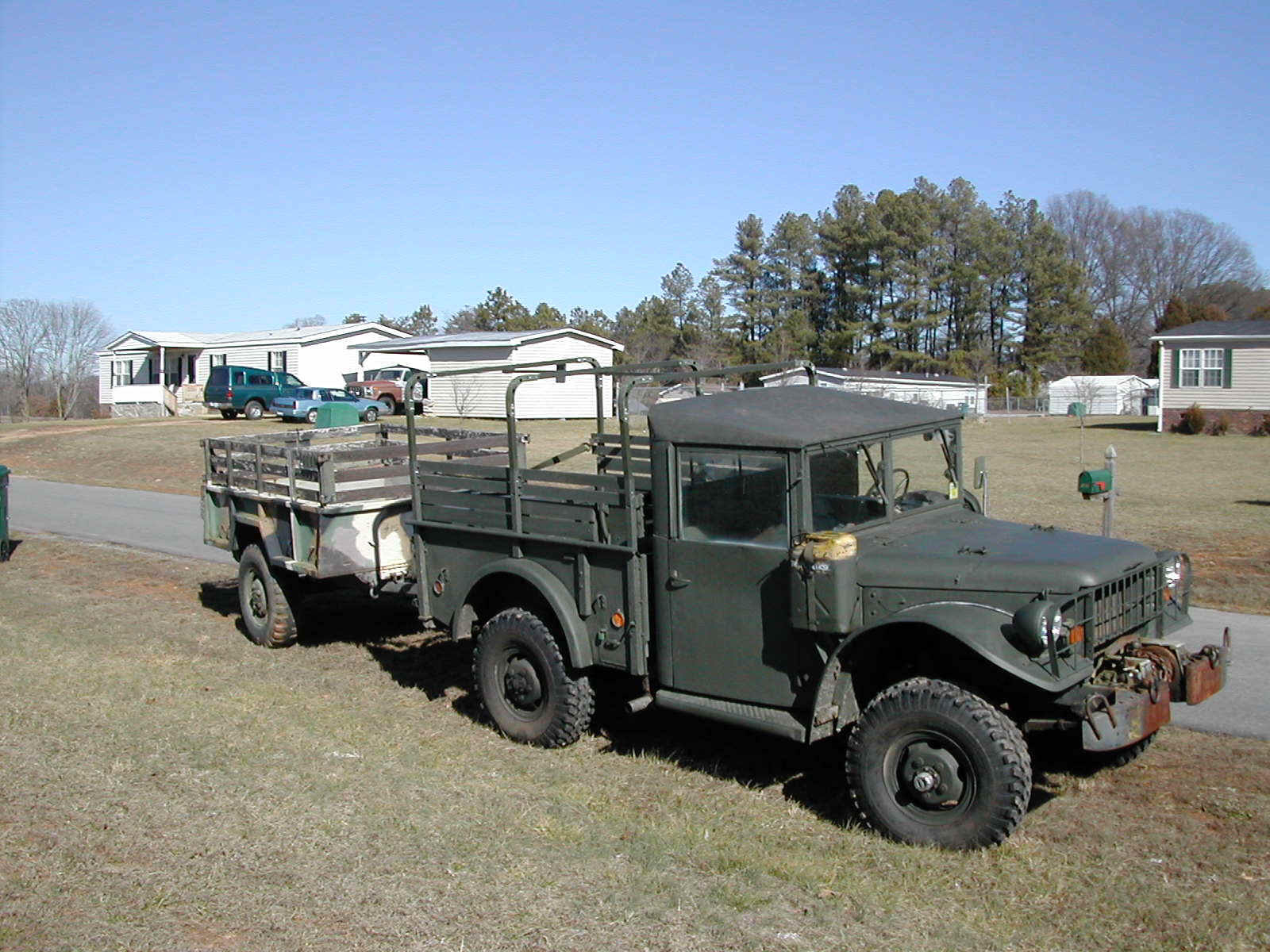

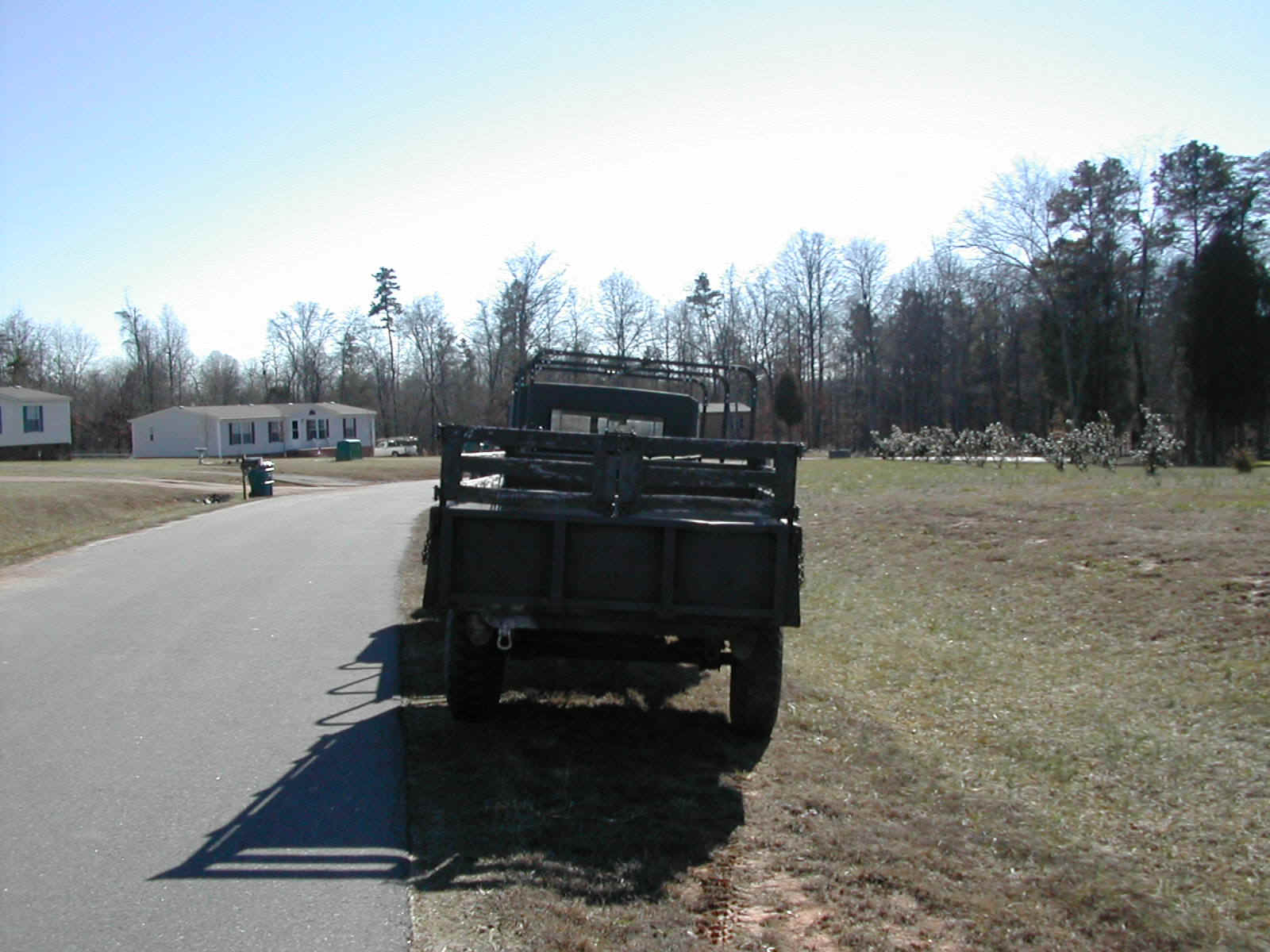

 Dscn0242.jpg (231170 bytes)1  Dscn0243.jpg (230253 bytes)2  Dscn0244.jpg (230654 bytes)3  Dscn0245.jpg (226242 bytes)4

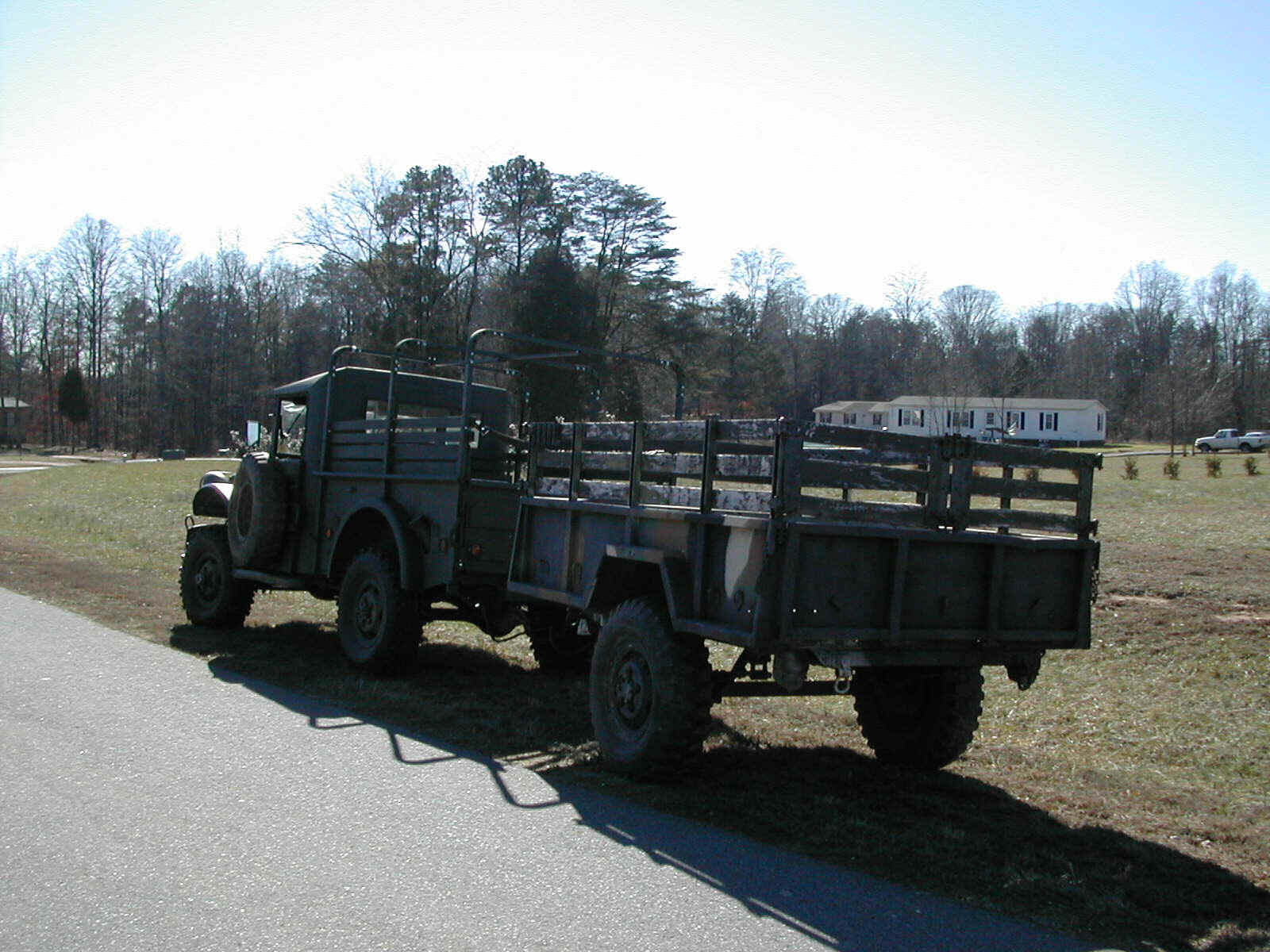

 Dscn0246.jpg (224329 bytes)5  Dscn0247.jpg (228859 bytes)6  Dscn0249.jpg (280469 bytes)7 Dscn0250.jpg (198936 bytes)8

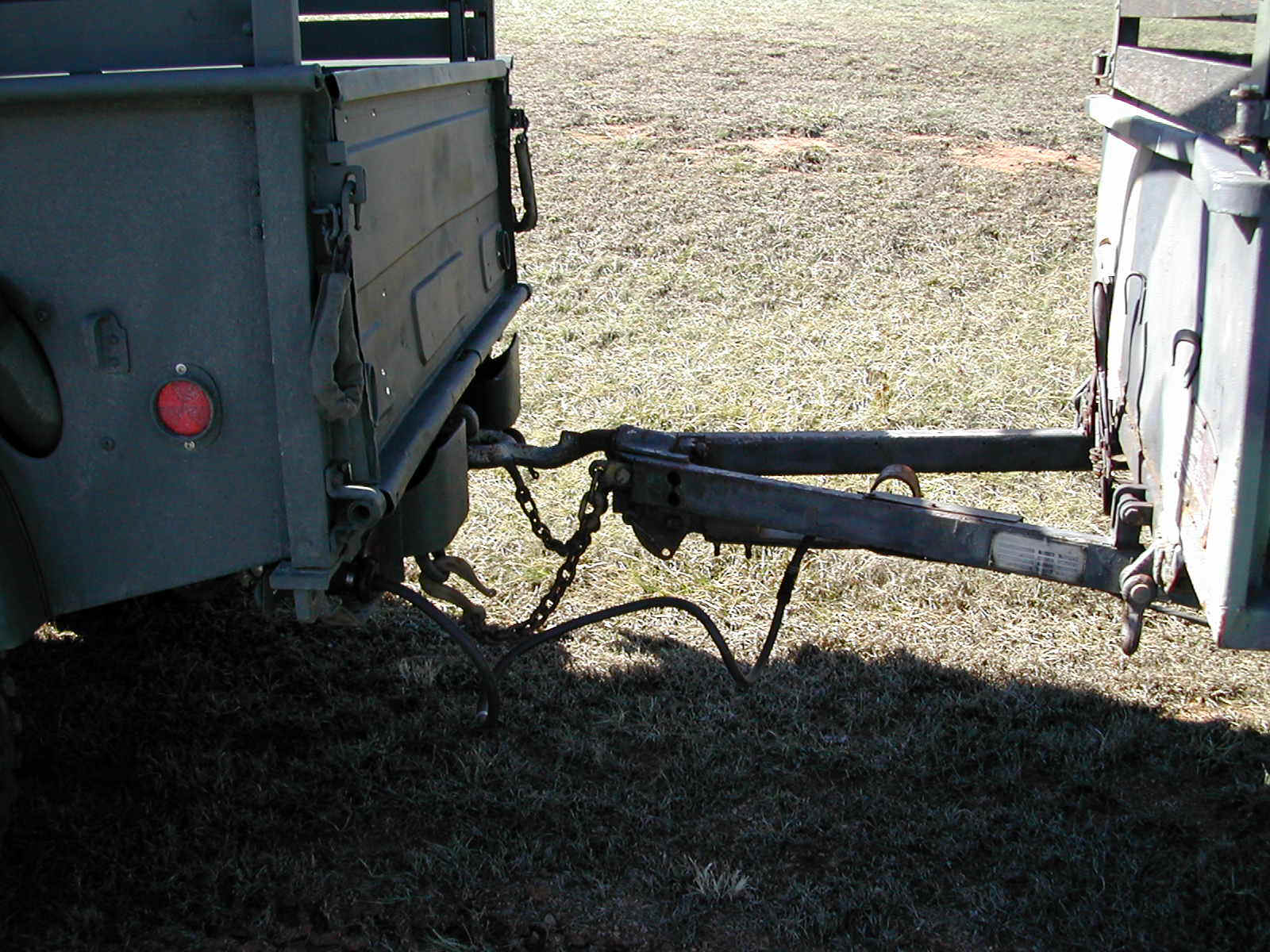

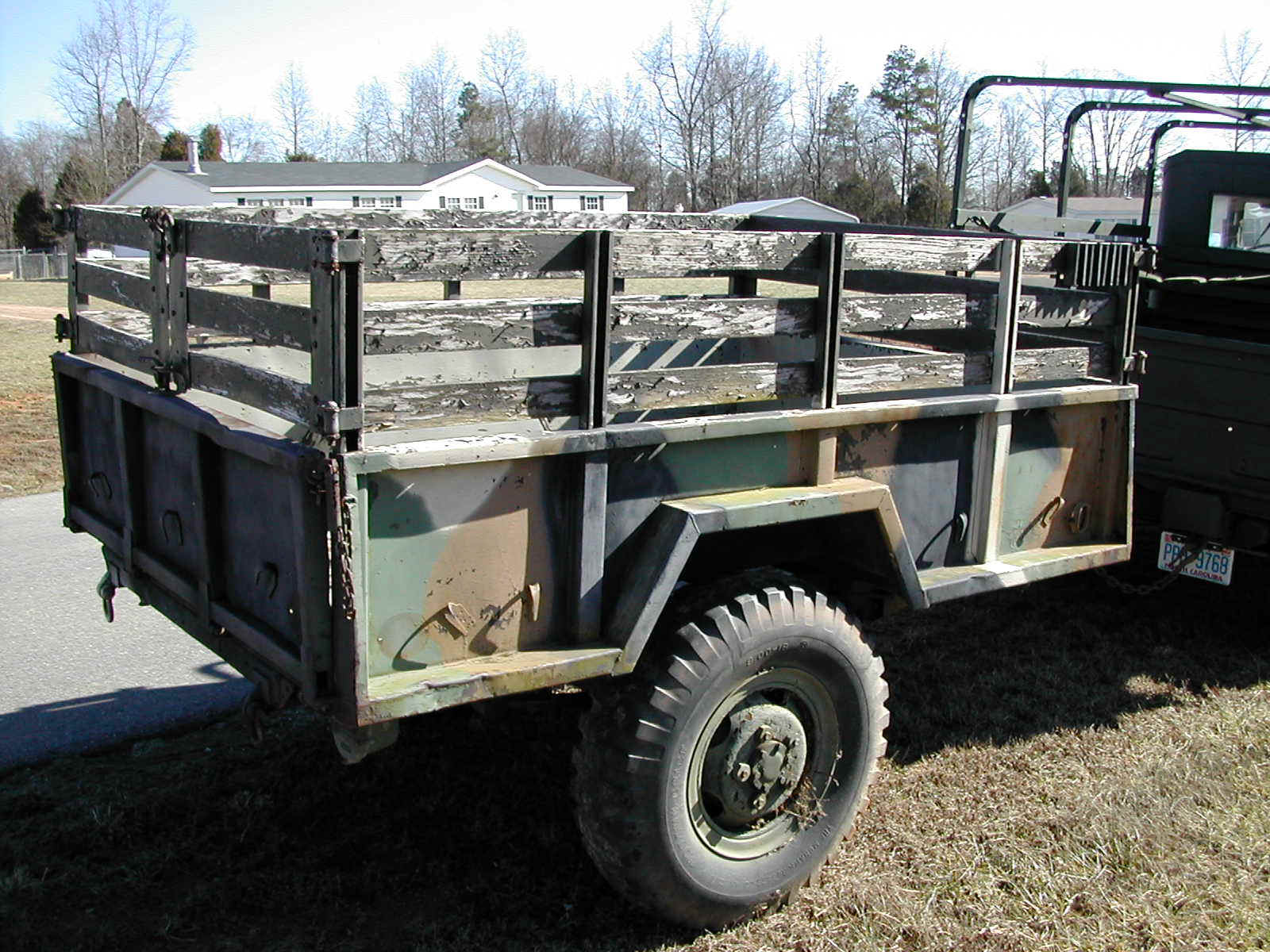

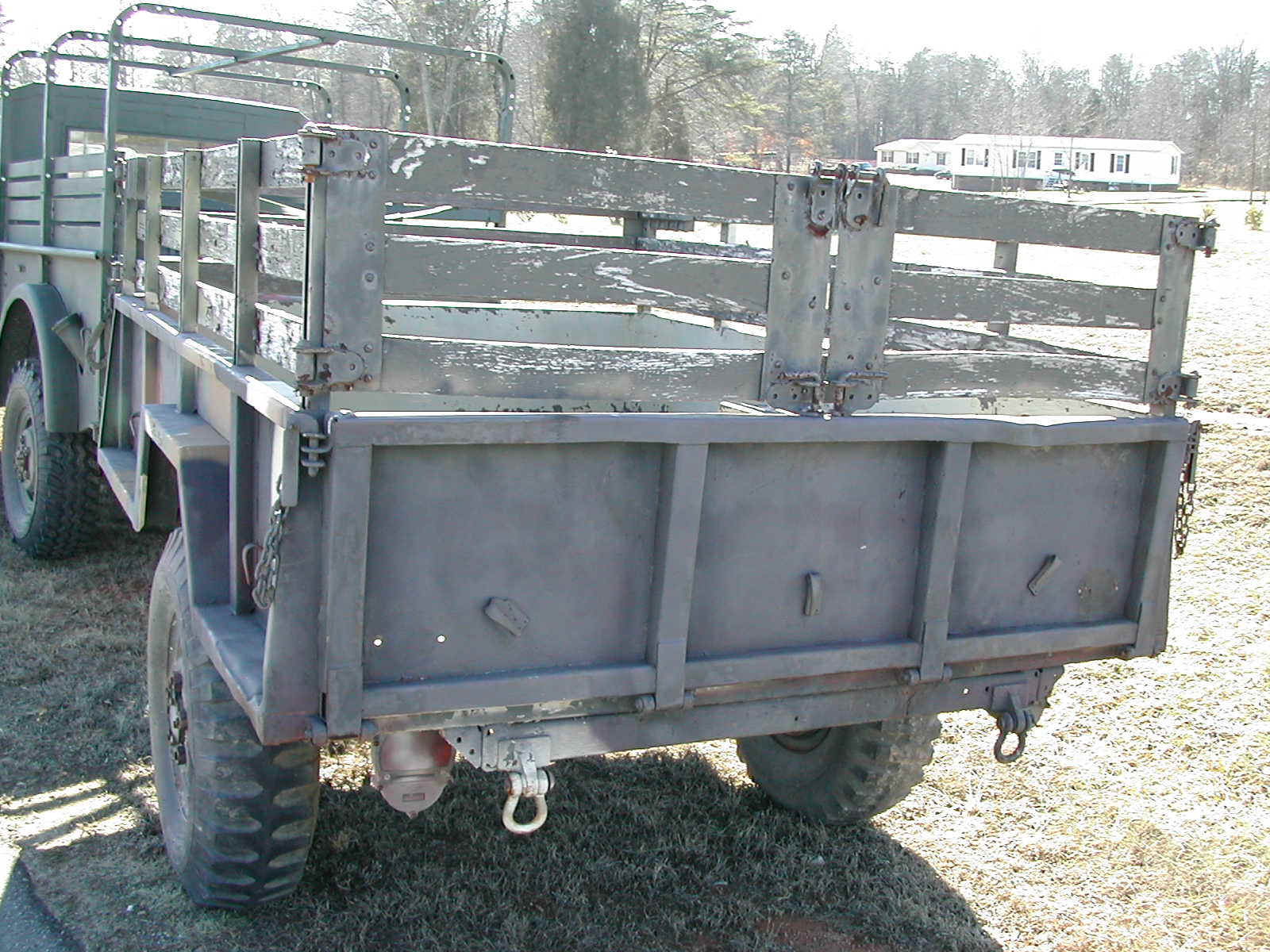

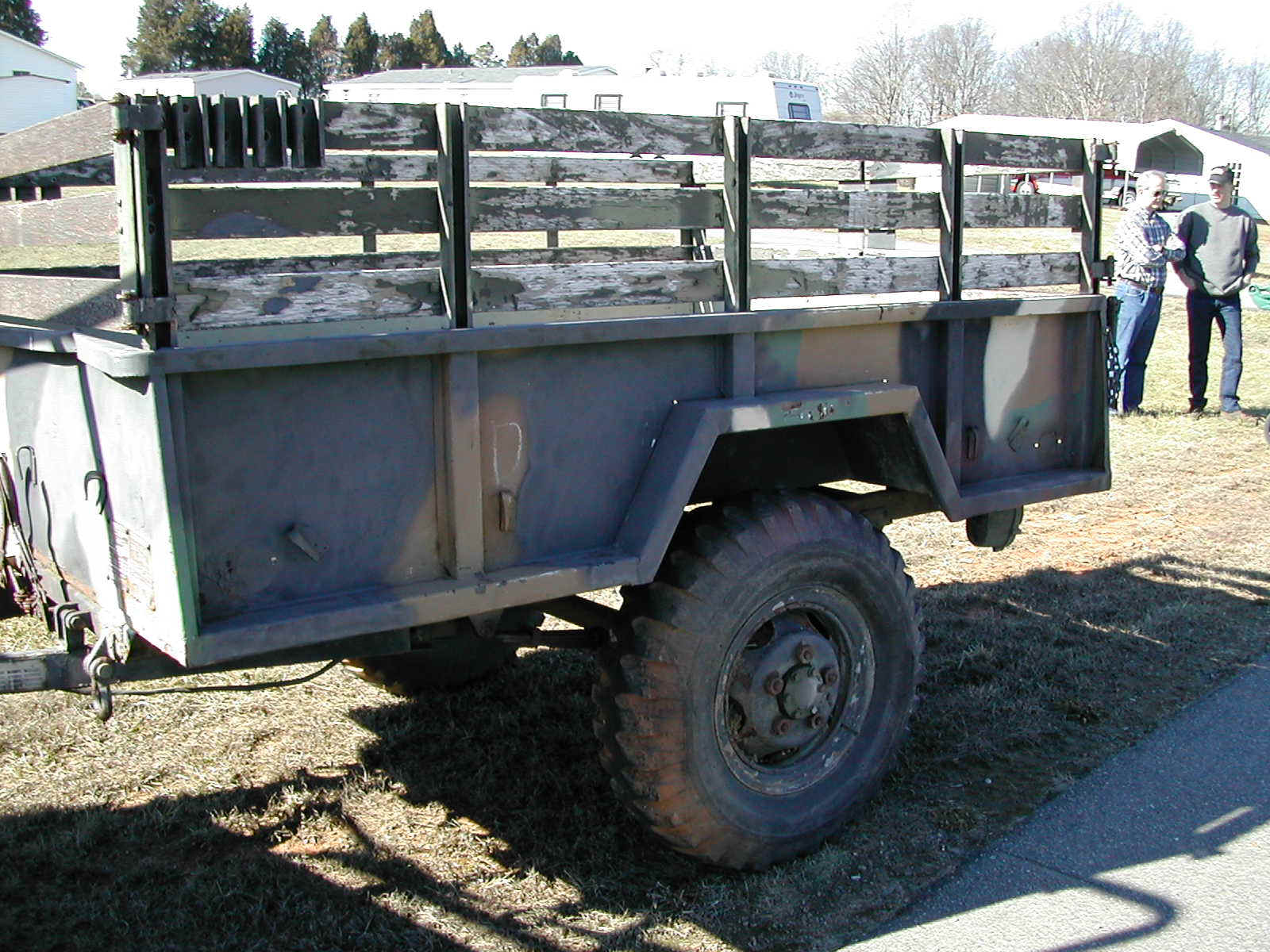

 Dscn0251.jpg (240118 bytes)9  Dscn0252.jpg (239911 bytes)10  Dscn0253.jpg (244535 bytes)11  Dscn0254.jpg (239112 bytes)12

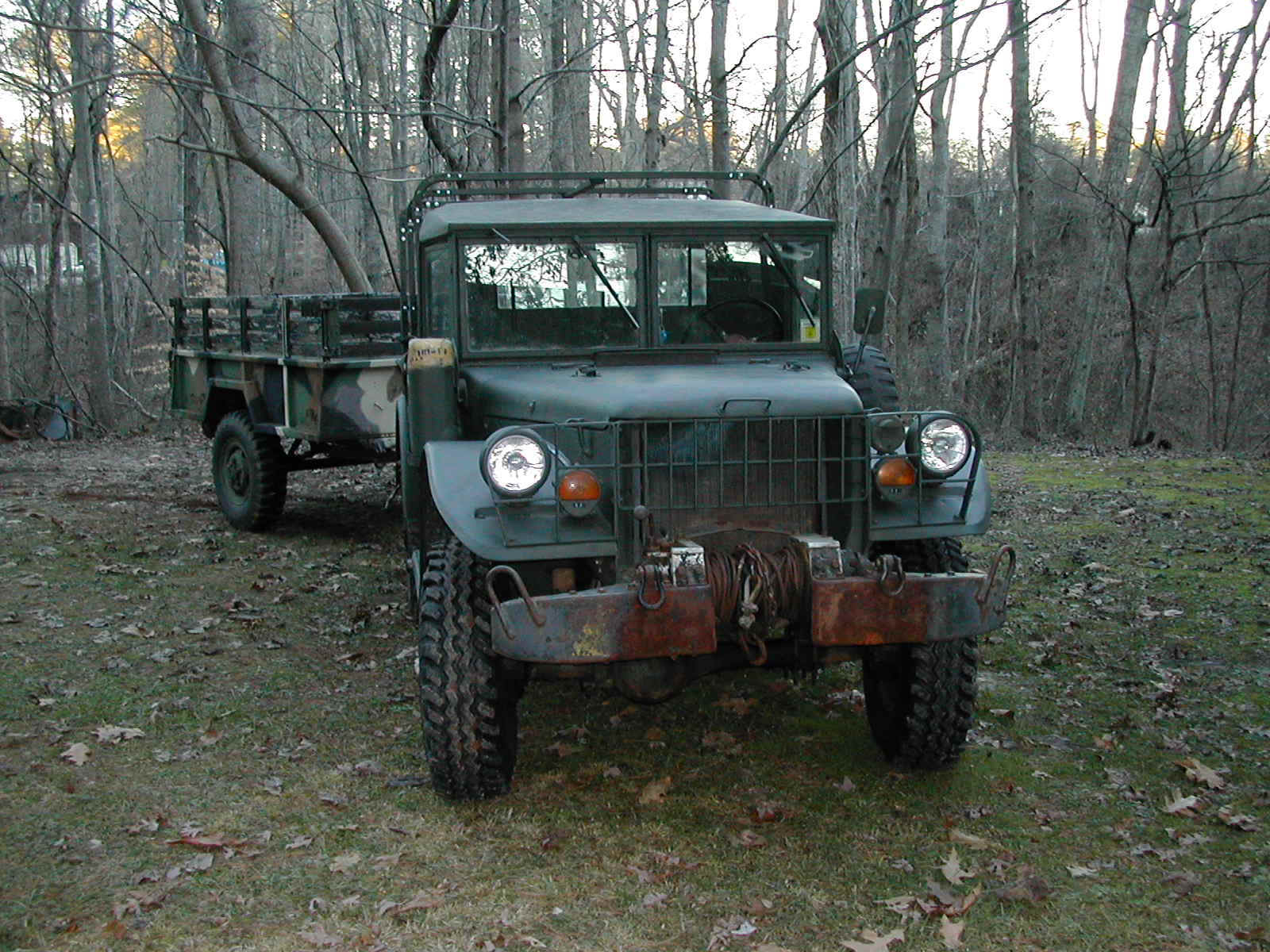

 Dscn0255.jpg (218591 bytes)13  Dscn0256.jpg (212992 bytes)14  Dscn0257.jpg (233417 bytes)15  Dscn0258.jpg (236067 bytes)16

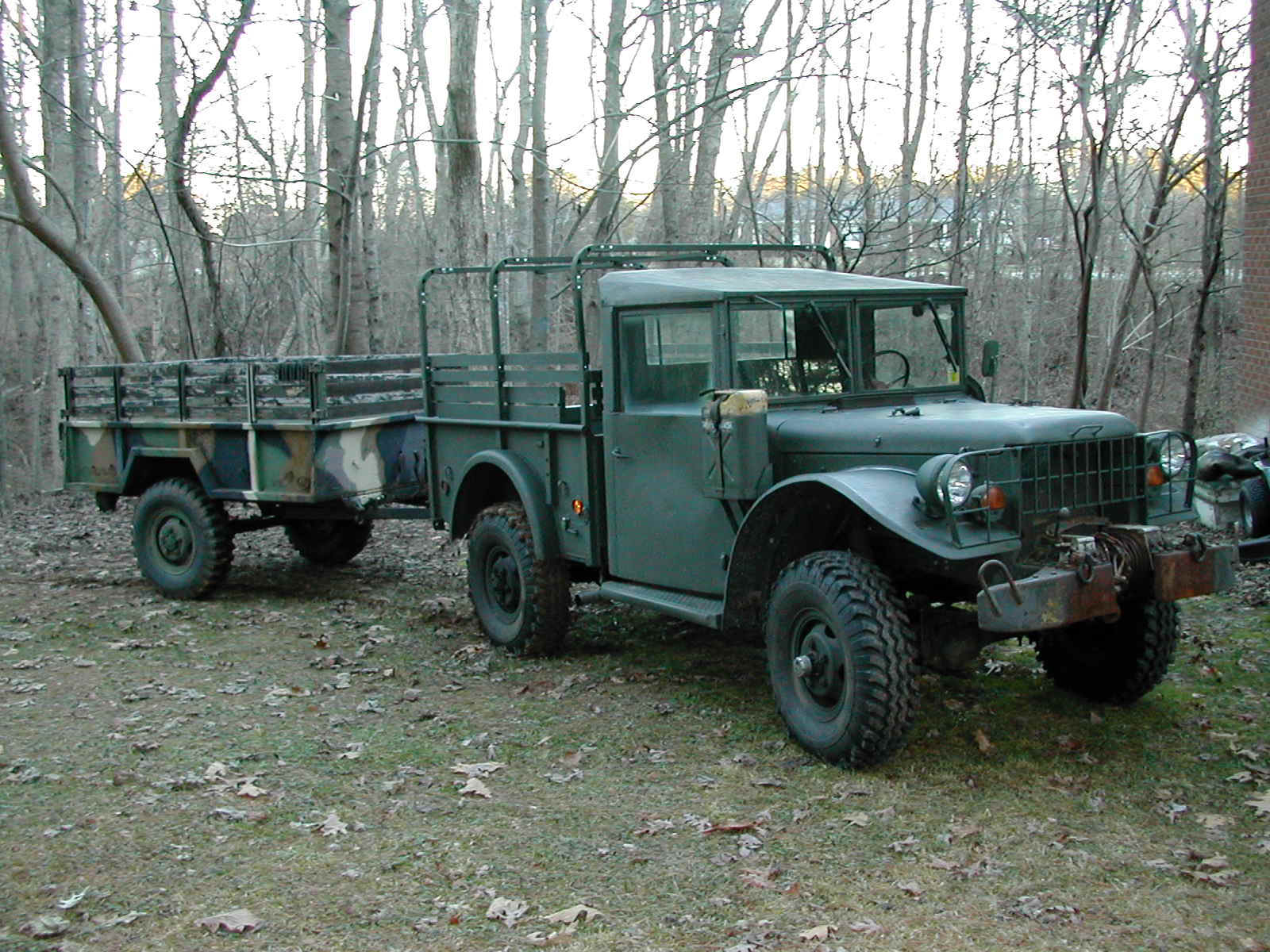

 Dscn0259.jpg (242573 bytes)17 Dscn0260.jpg (215156 bytes)18  Dscn0261.jpg (229739 bytes)19  Dscn0262.jpg (191223 bytes)20

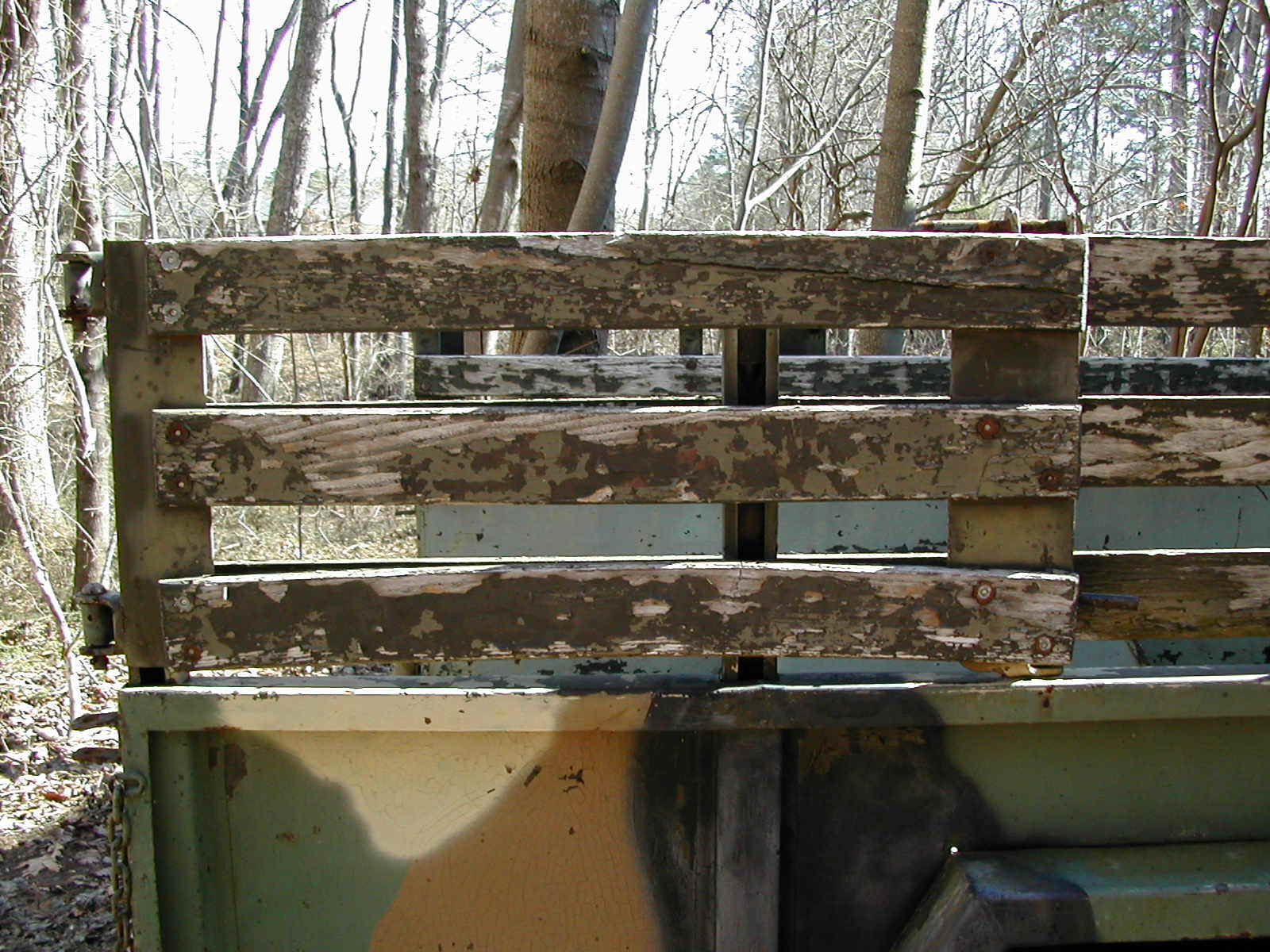

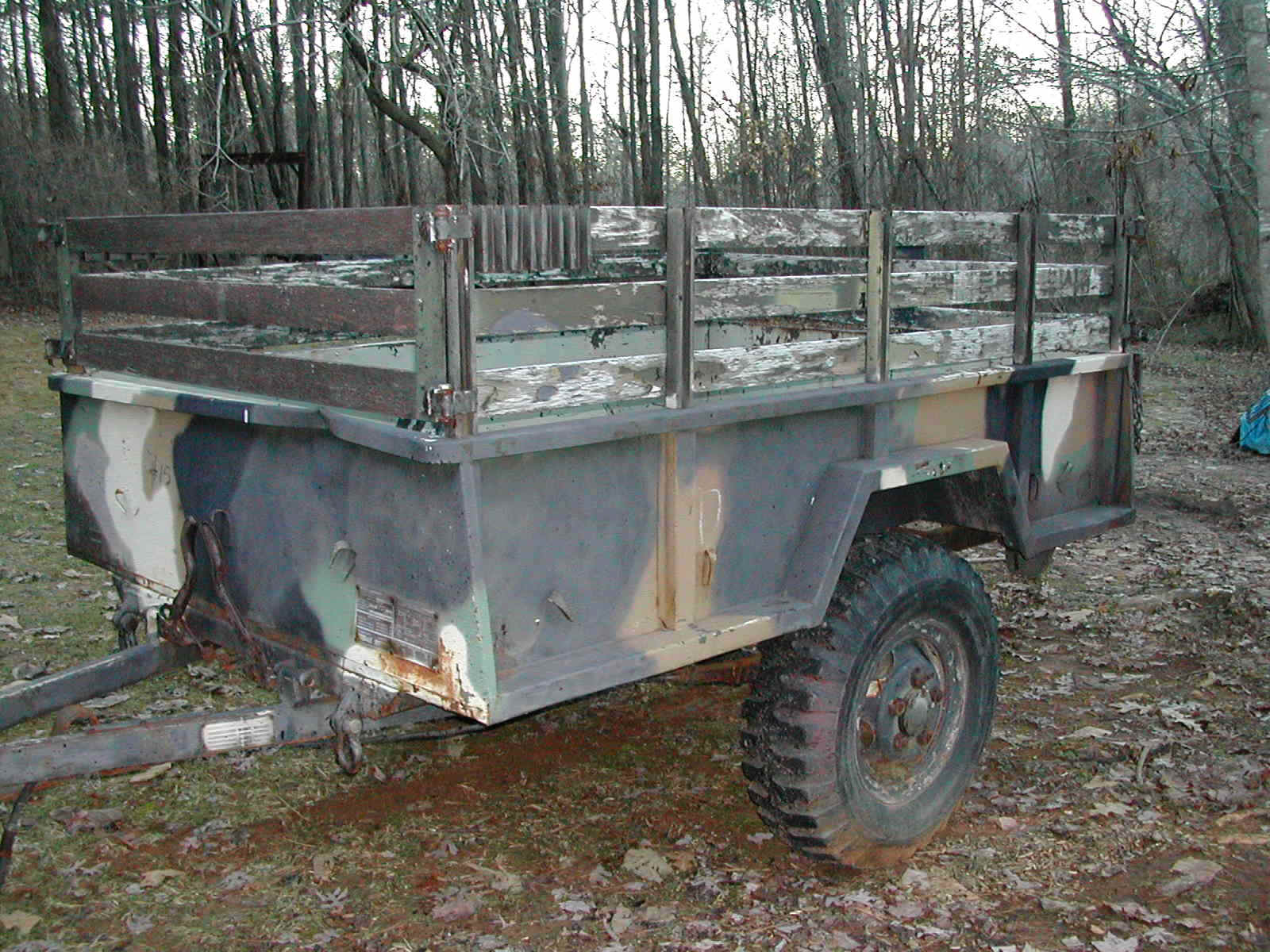

 Dscn0263.jpg (229173 bytes)21 Dscn0264.jpg (227169 bytes)22  Dscn0265.jpg (240003 bytes)23  Dscn0266.jpg (239522 bytes)24

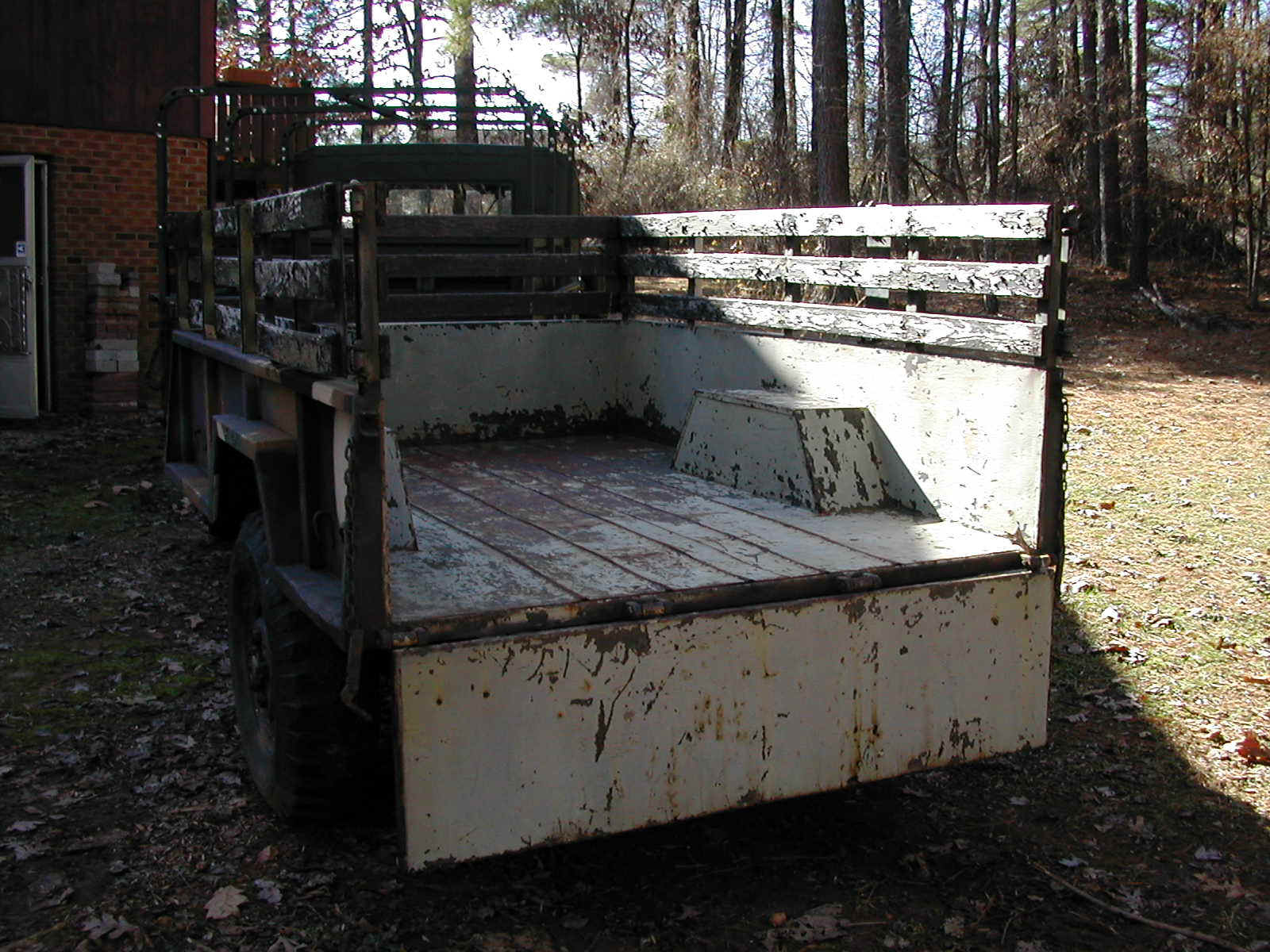

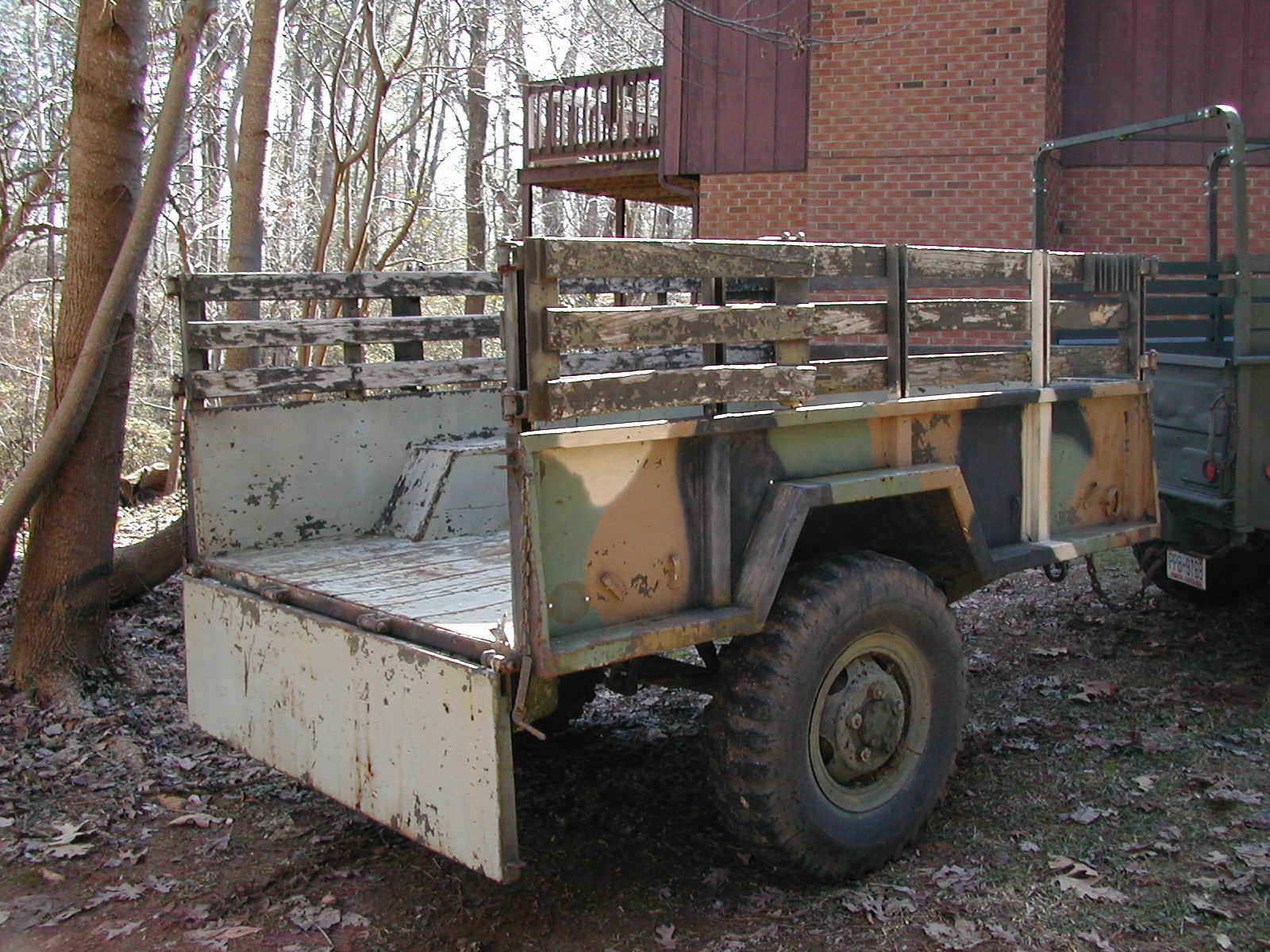

Dscn0267.jpg (217067 bytes)25 Dscn0268.jpg (225925 bytes)26 Dscn0269.jpg (234138 bytes)27 Dscn0270.jpg (243001 bytes)28
Dscn0271.jpg (207421 bytes)29 Dscn0272.jpg (238179 bytes)30 Dscn0273.jpg (224466 bytes)31 Dscn0274.jpg (226342 bytes)32

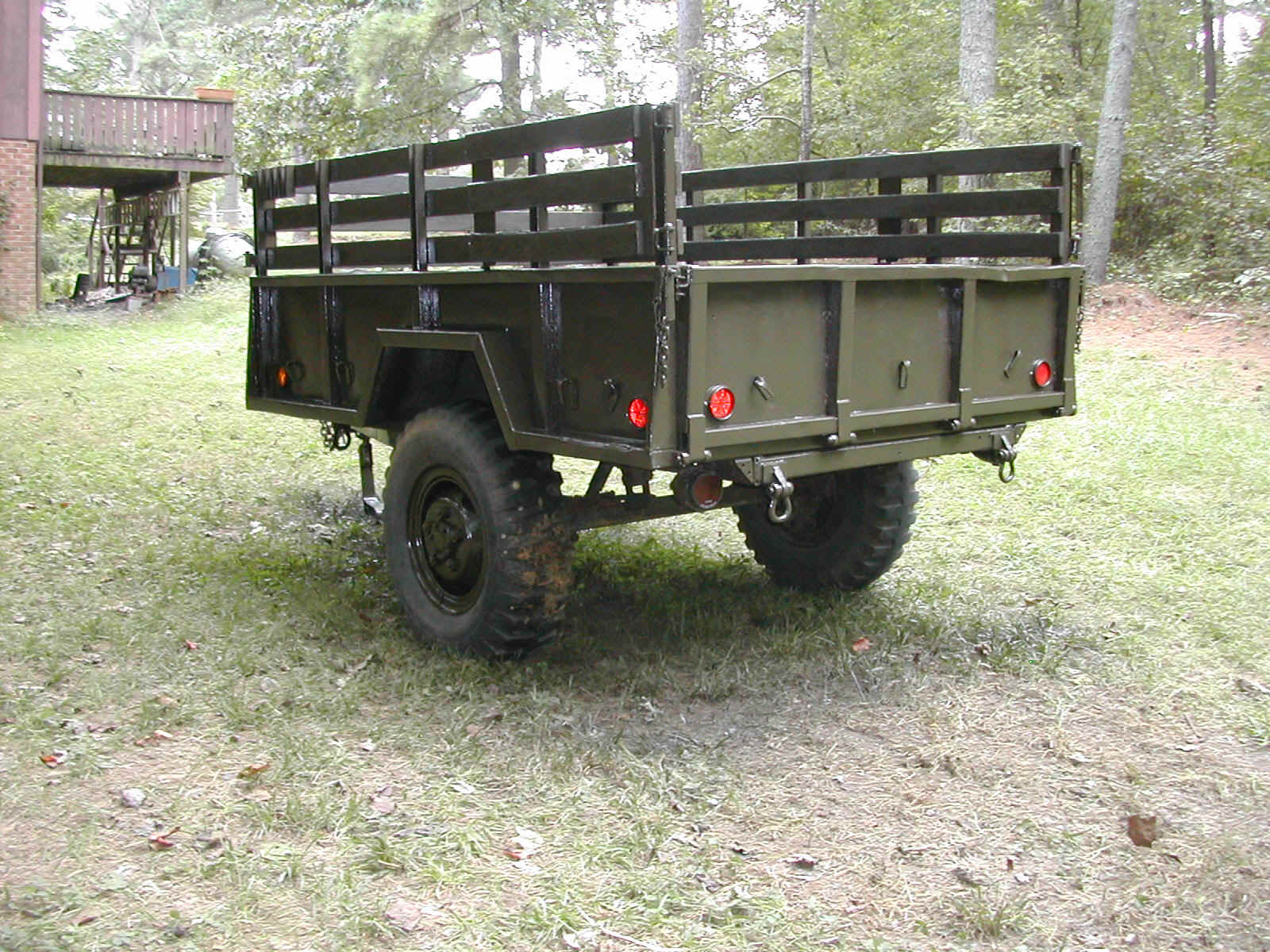

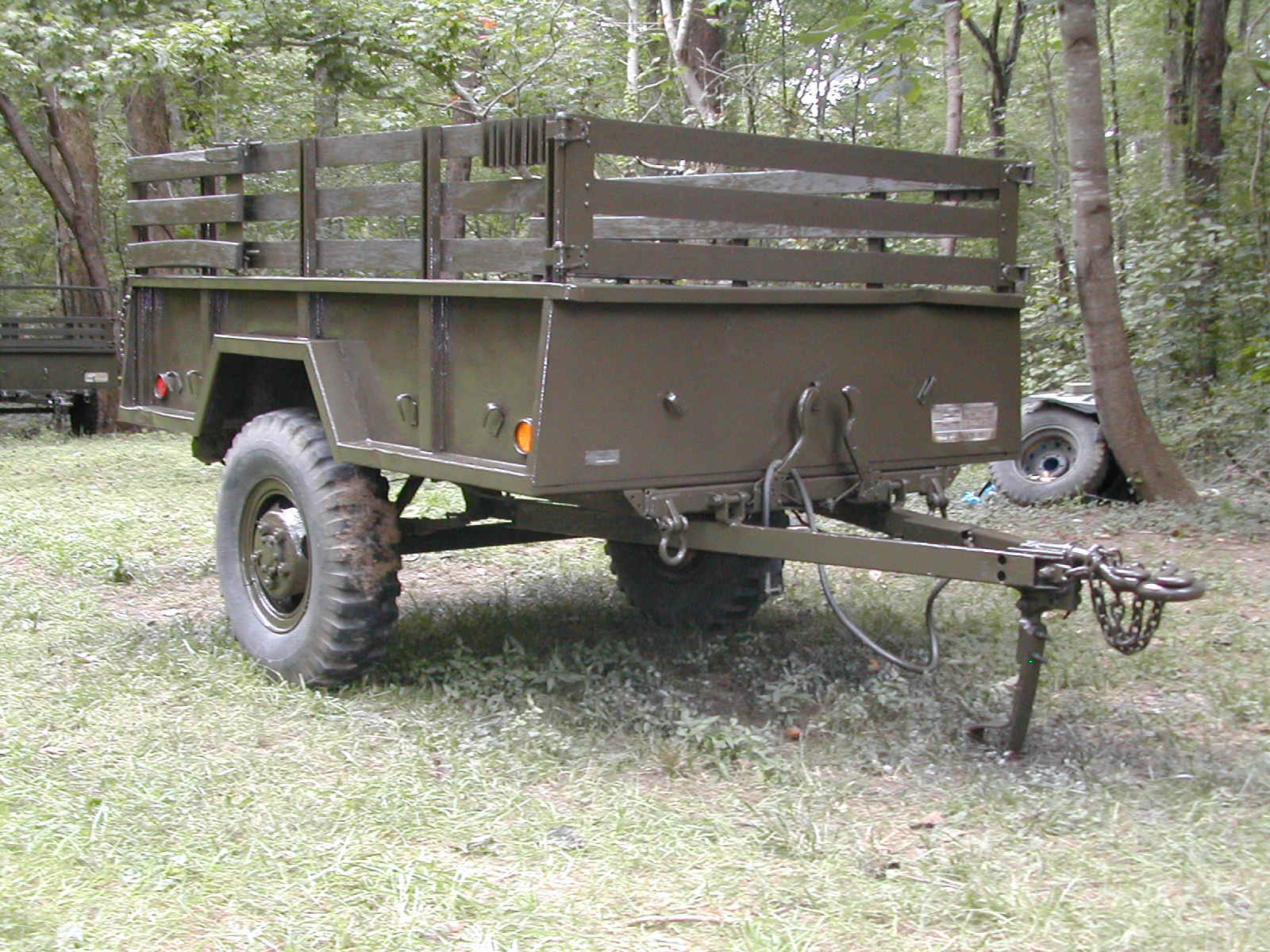

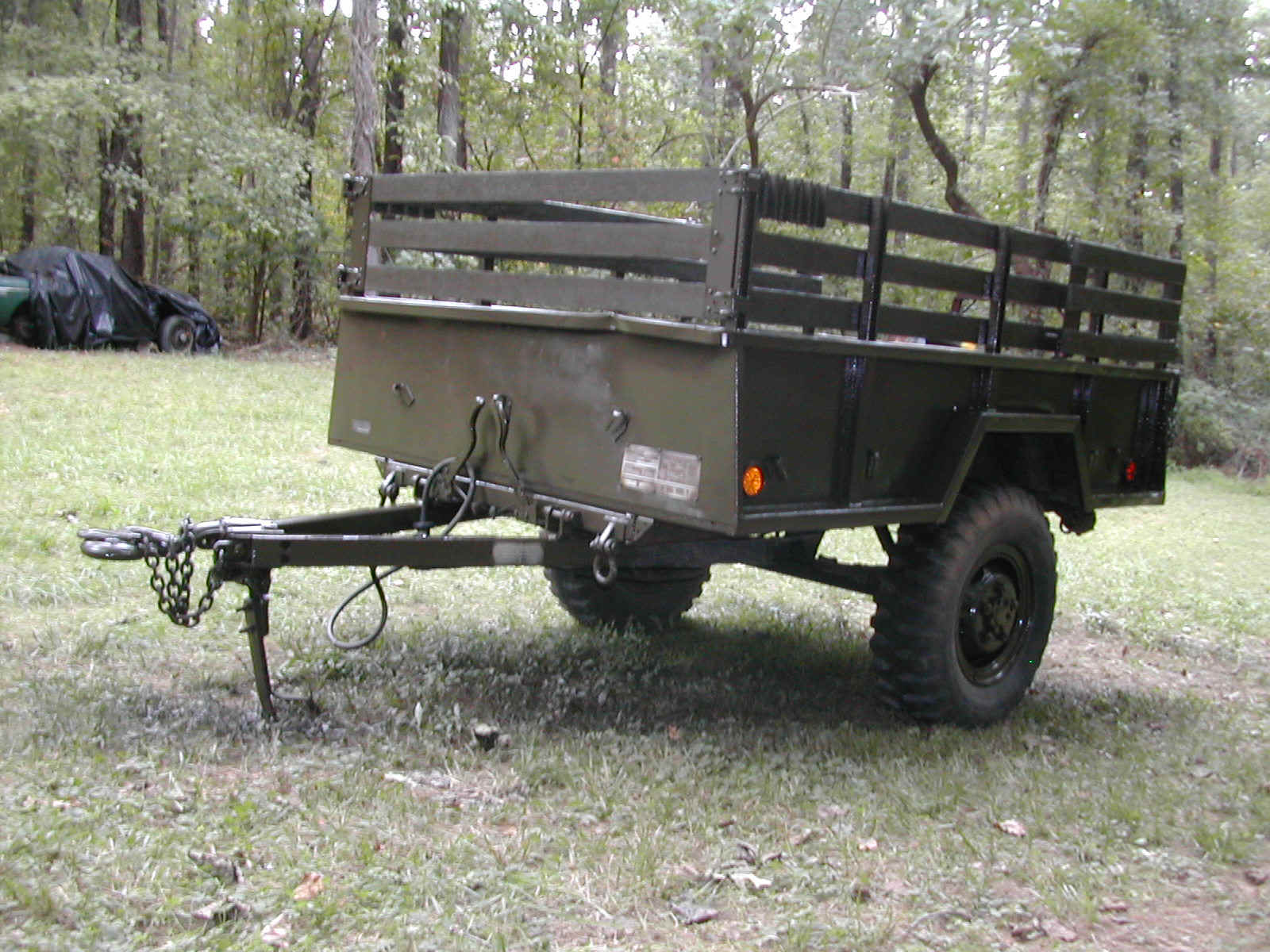

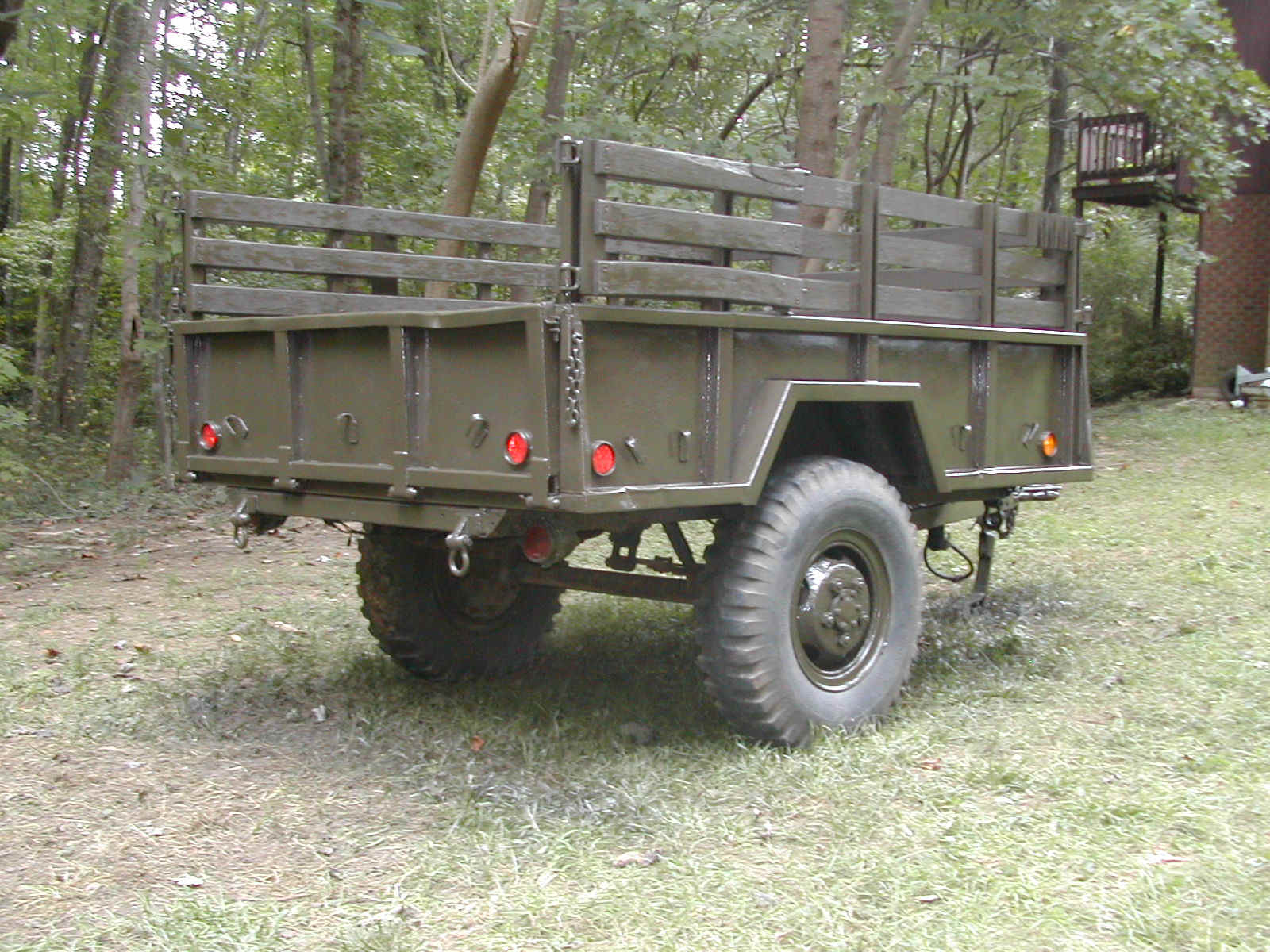

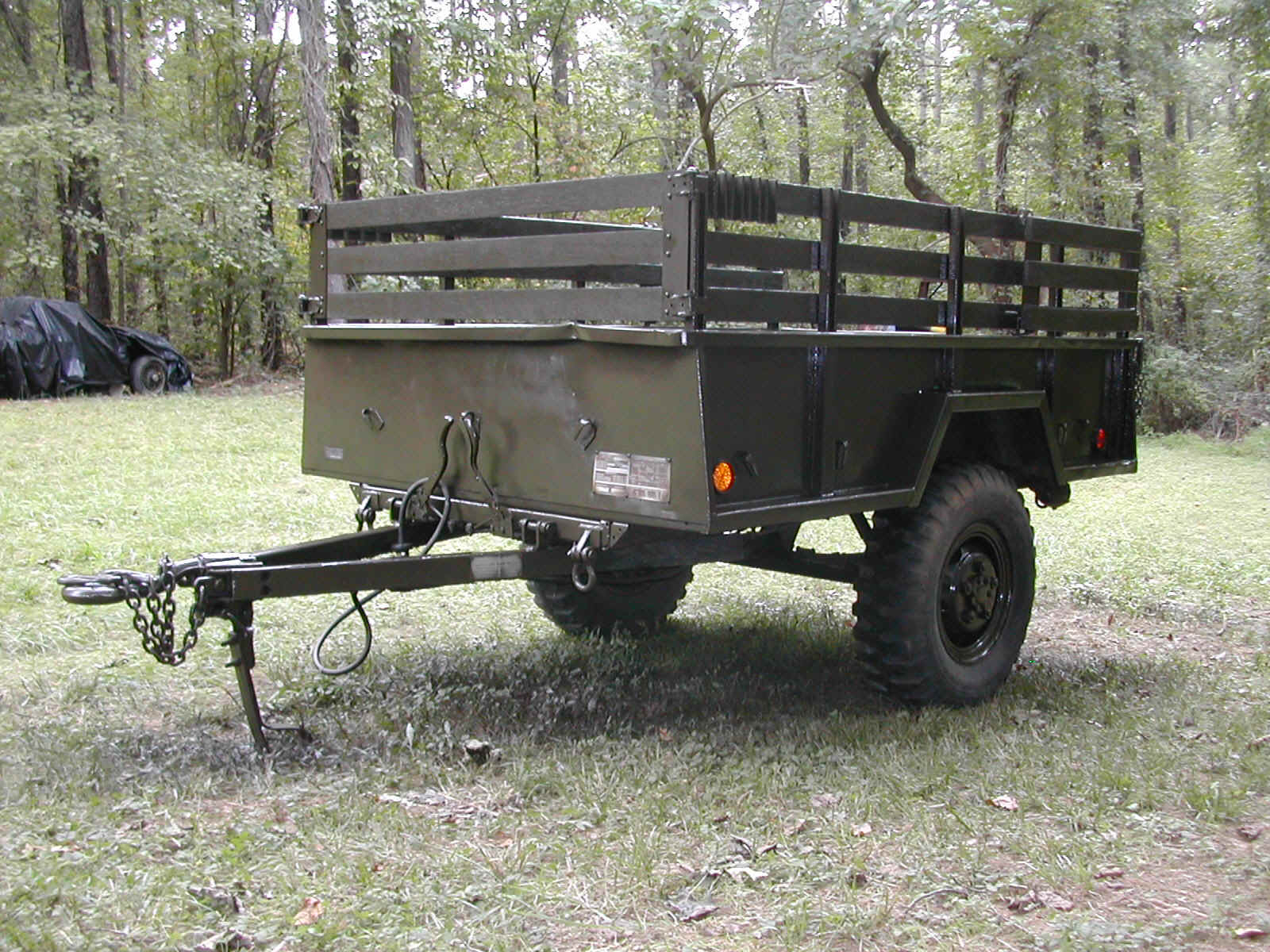

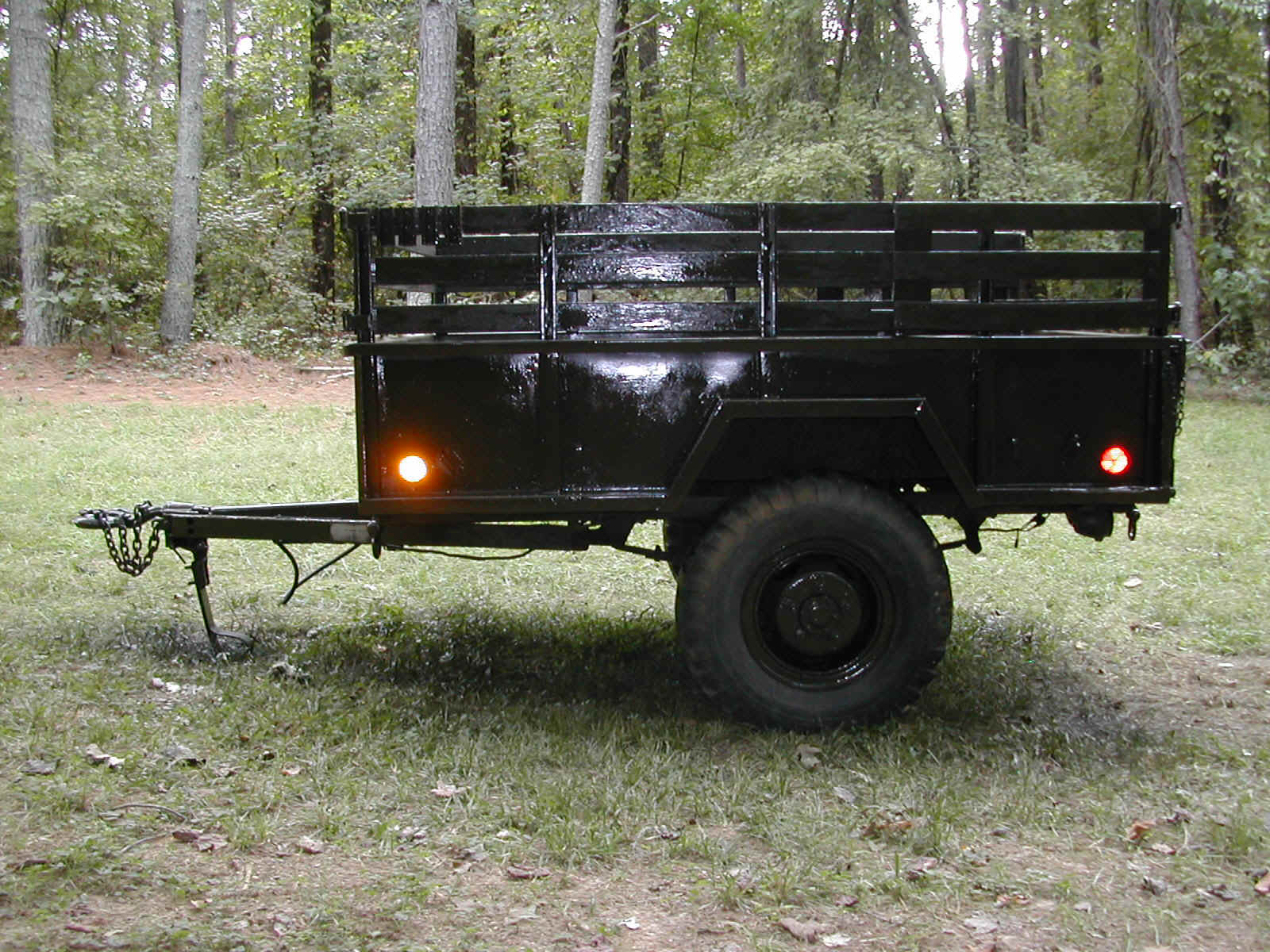

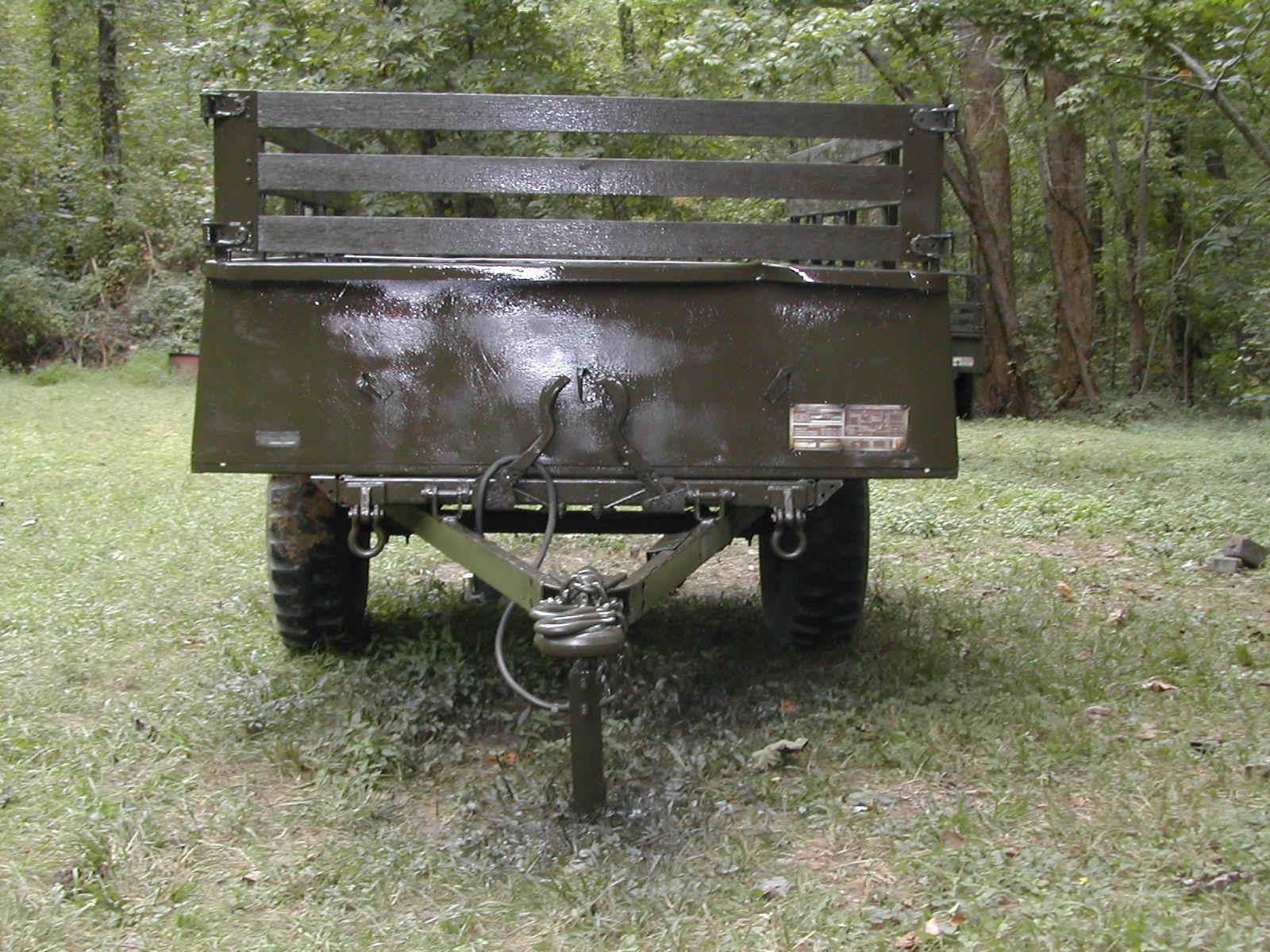

In September 2004, I had a little spare time, some great weather, and a gallon each of Rust-Oleum Hunter Green and Leather Brown and decided to see what this trailer and my M101A1 would look like with a fresh coat of "homebrew" olive...    Since the paint was gloss and I didn't have any flattening agent on hand, the final color on the trailer is an olive gloss.   The hunter green, leather brown and Xylene were mixed at a 4:4:1 ratio and then the resulting mix was sprayed using a pair of older siphon paint guns (one quart production and a half cup detail) running at 25psi with ambient are temps in the mid to upper eighties with high humidity.   The trailer was scraped and sanded before the paint was applied and spot primed using Rust-Oleum clean metal primer thinned at 4:1 with Xylene.

m101paint1.jpg (421811 bytes)33 m101paint2.jpg (435124 bytes)34 m101paint3.jpg (428069 bytes)35 m101paint4.jpg (447458 bytes)36

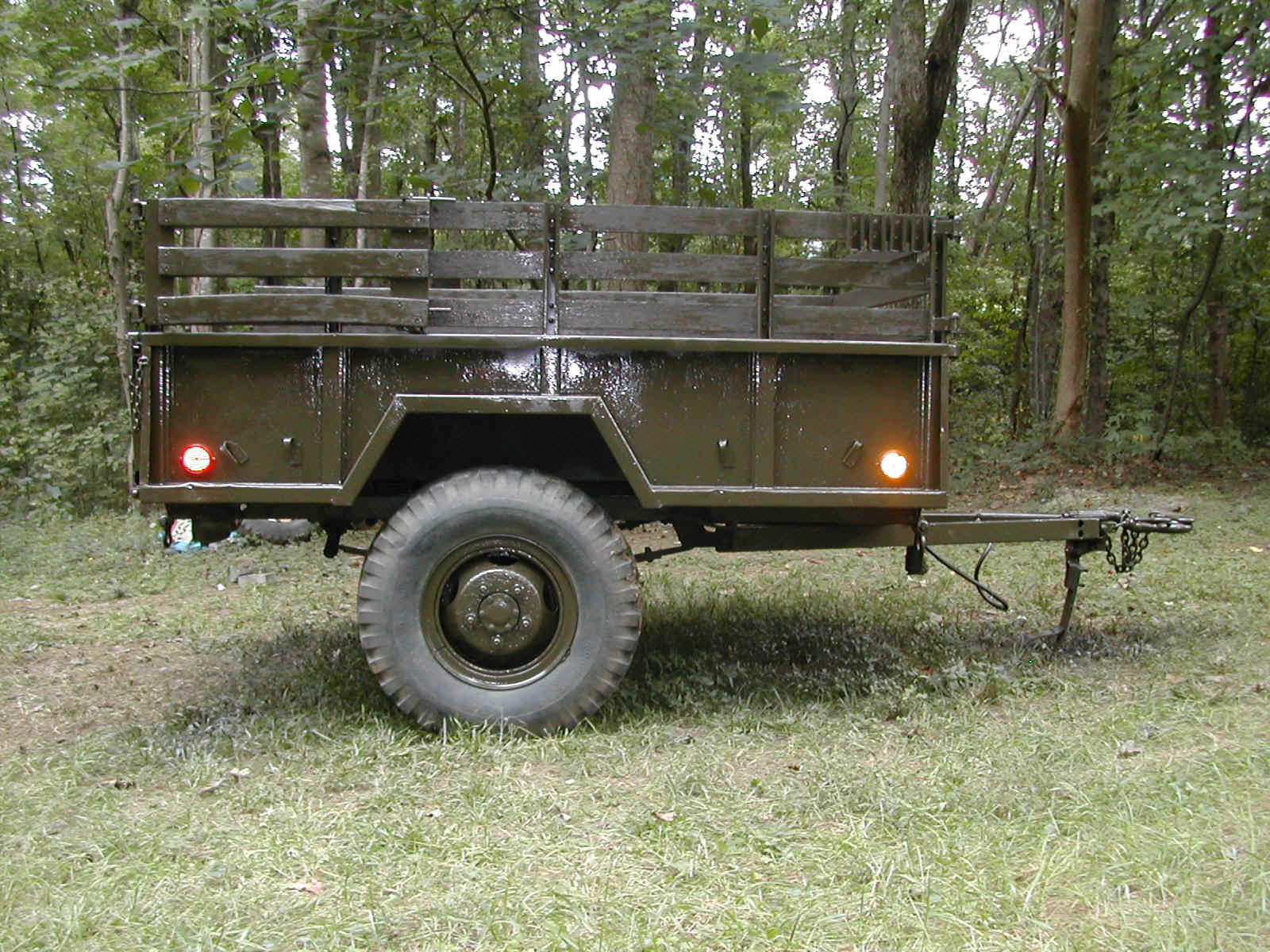

m101paint5.jpg (421661 bytes)37 m101paint6.jpg (430222 bytes)38 m101paint7.jpg (434722 bytes)39 m101paint8.jpg (443123 bytes)40
