Photos of my right hand mirror installation in my M37

These are a few pictures of the right hand mirror that I installed on my truck.

If you have questions about any of these photos, send me an email and I'll try to provide an answer.

 chevyarm.jpg (198189 bytes)1  armontruck.jpg (322032 bytes)2  bracketcloseup.jpg (236005 bytes)3  behinddoor.jpg (229834 bytes)4
 mountedmirror.jpg (221850 bytes)5  gascan.jpg (220542 bytes)6  nocan.jpg (371772 bytes)7 shadow.jpg (230495 bytes) 8
wadetwo.jpg (227786 bytes)9  wadefour.jpg (239518 bytes)10  wadeone.jpg (240791 bytes)11 wadethree.jpg (238150 bytes)12
Photo Caption

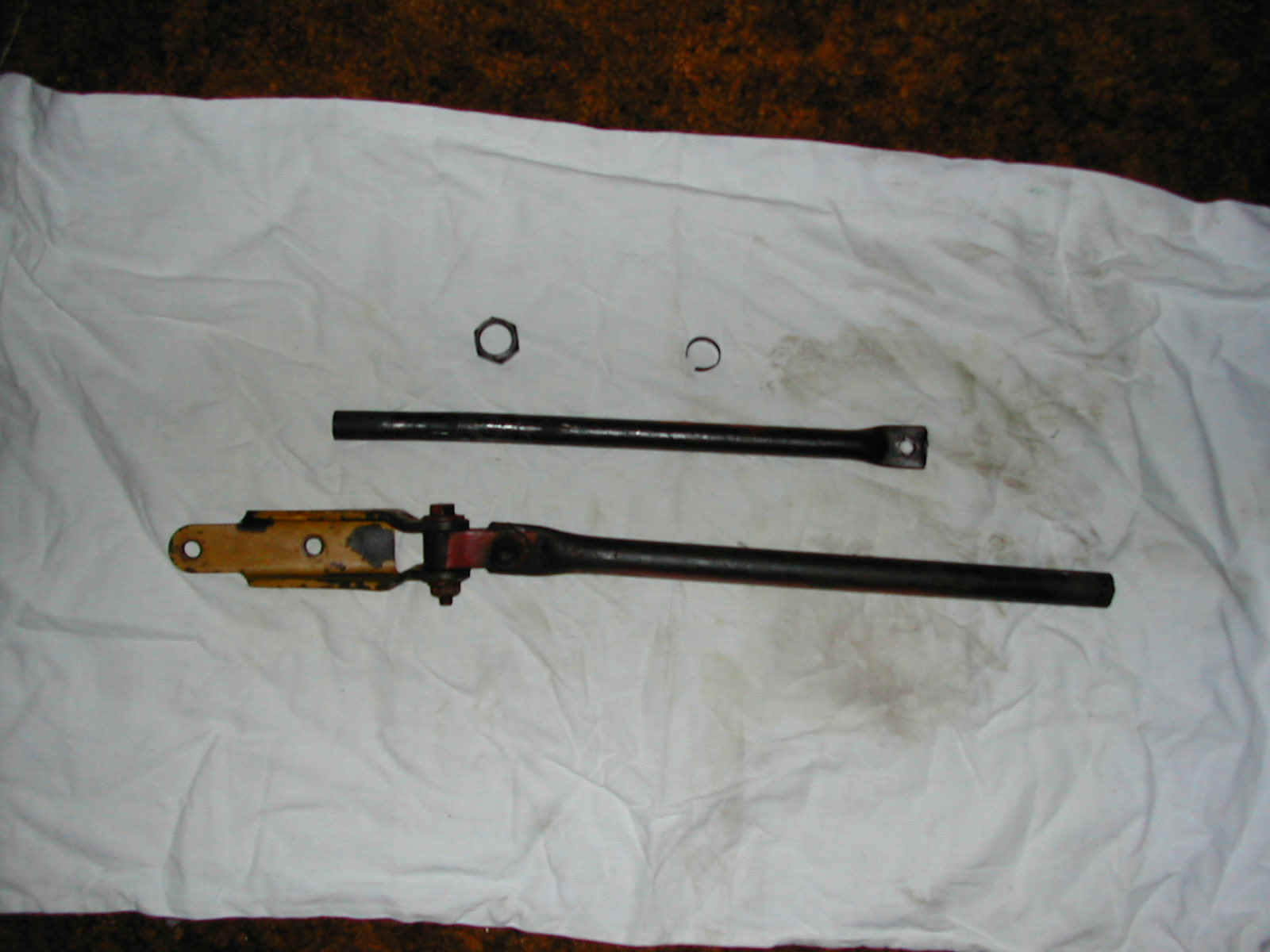

1 Mirror bracket from WWII 2.5 ton truck (Chevy) and arm from 1949 Chevy 1.5 ton truck.
2 Mirror mounted on truck.

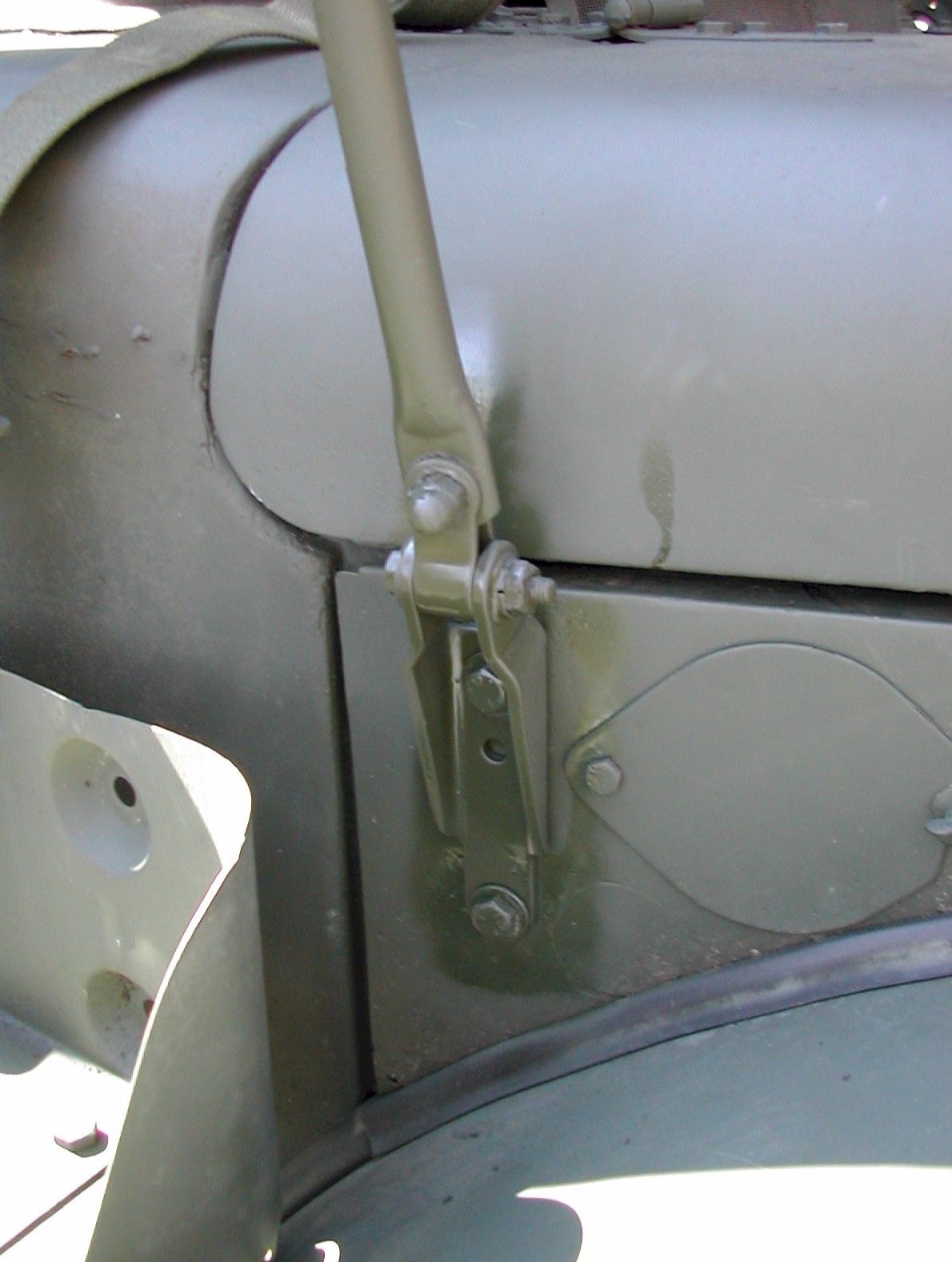

3 Close-up of bracket showing new hole drilled to match engine side panel bolts, fresh (wet) paint.

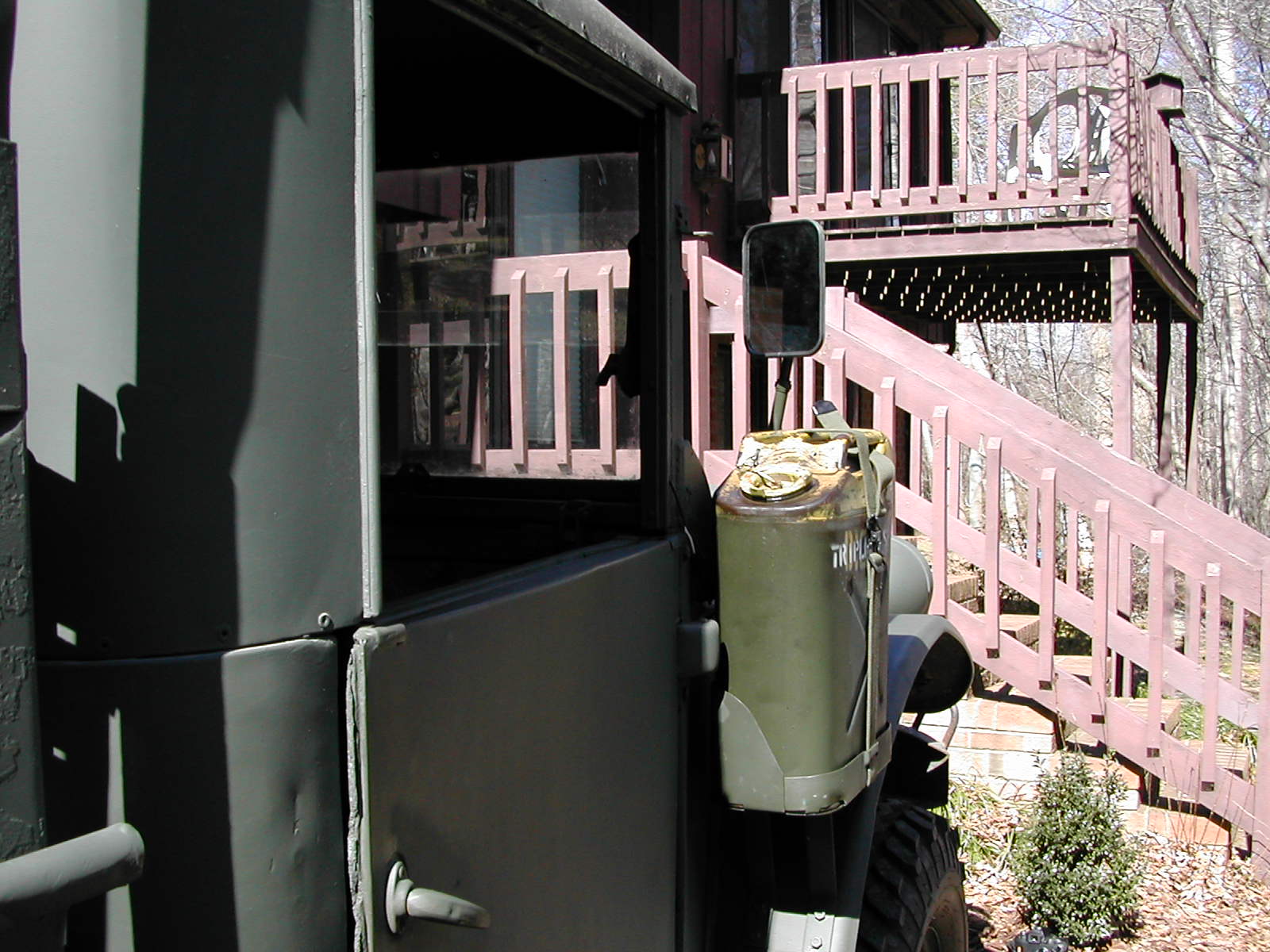

4 View of mirror from the blind spot beside the bed.
5 Mirror arm without jerry can in place.

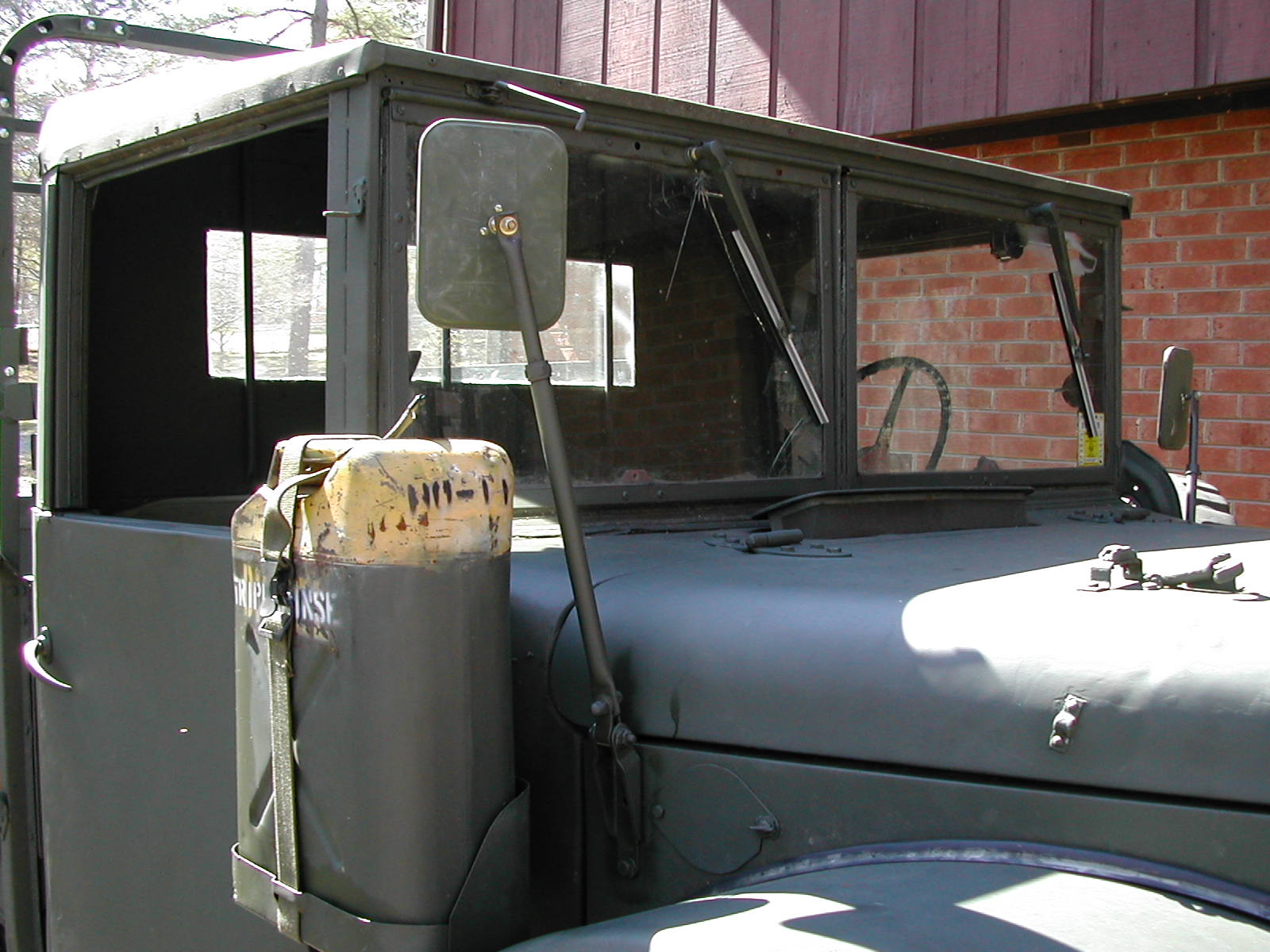

6 Mirror arm with jerry can in place.

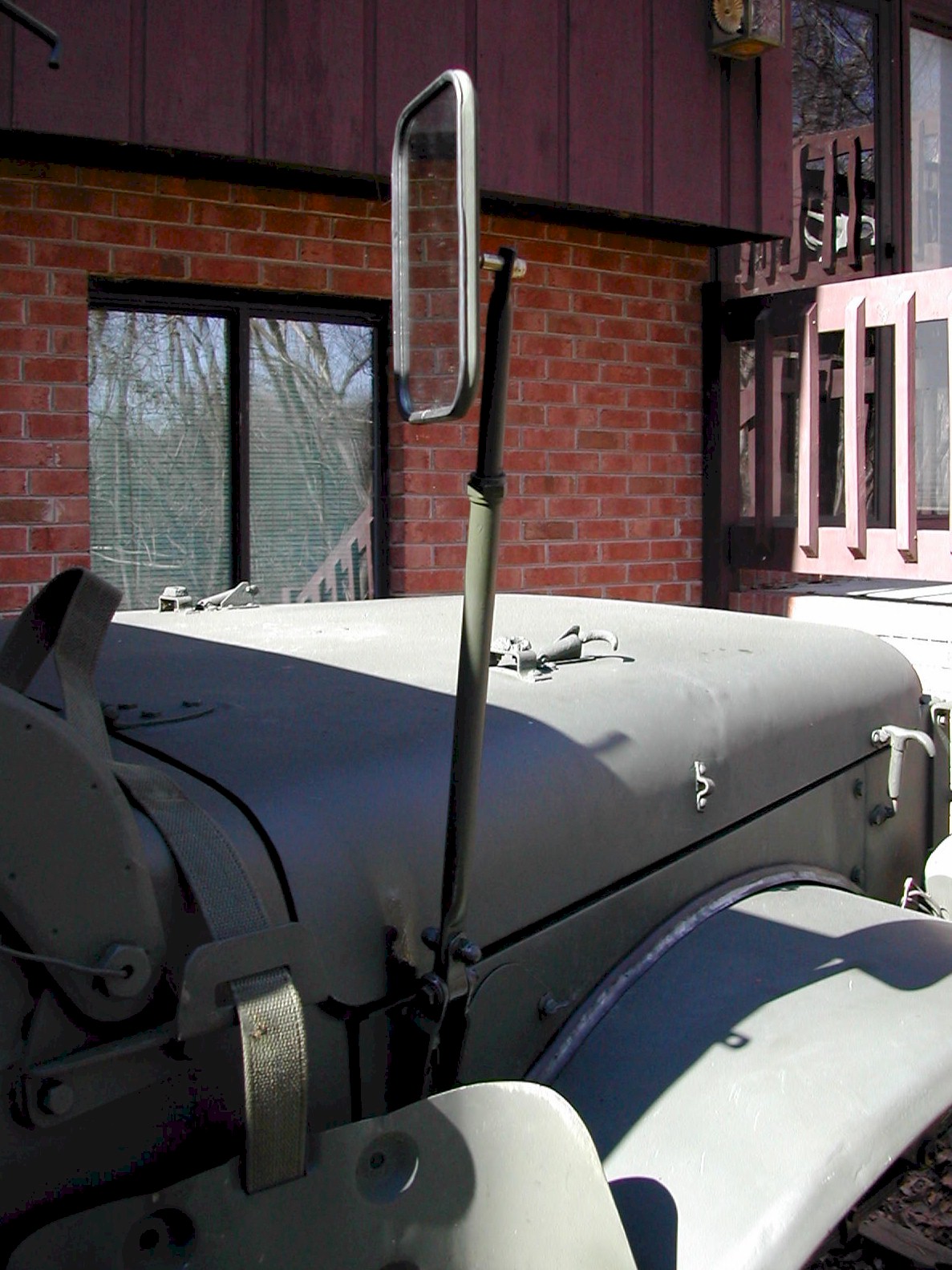

7 Mirror arm from the side.

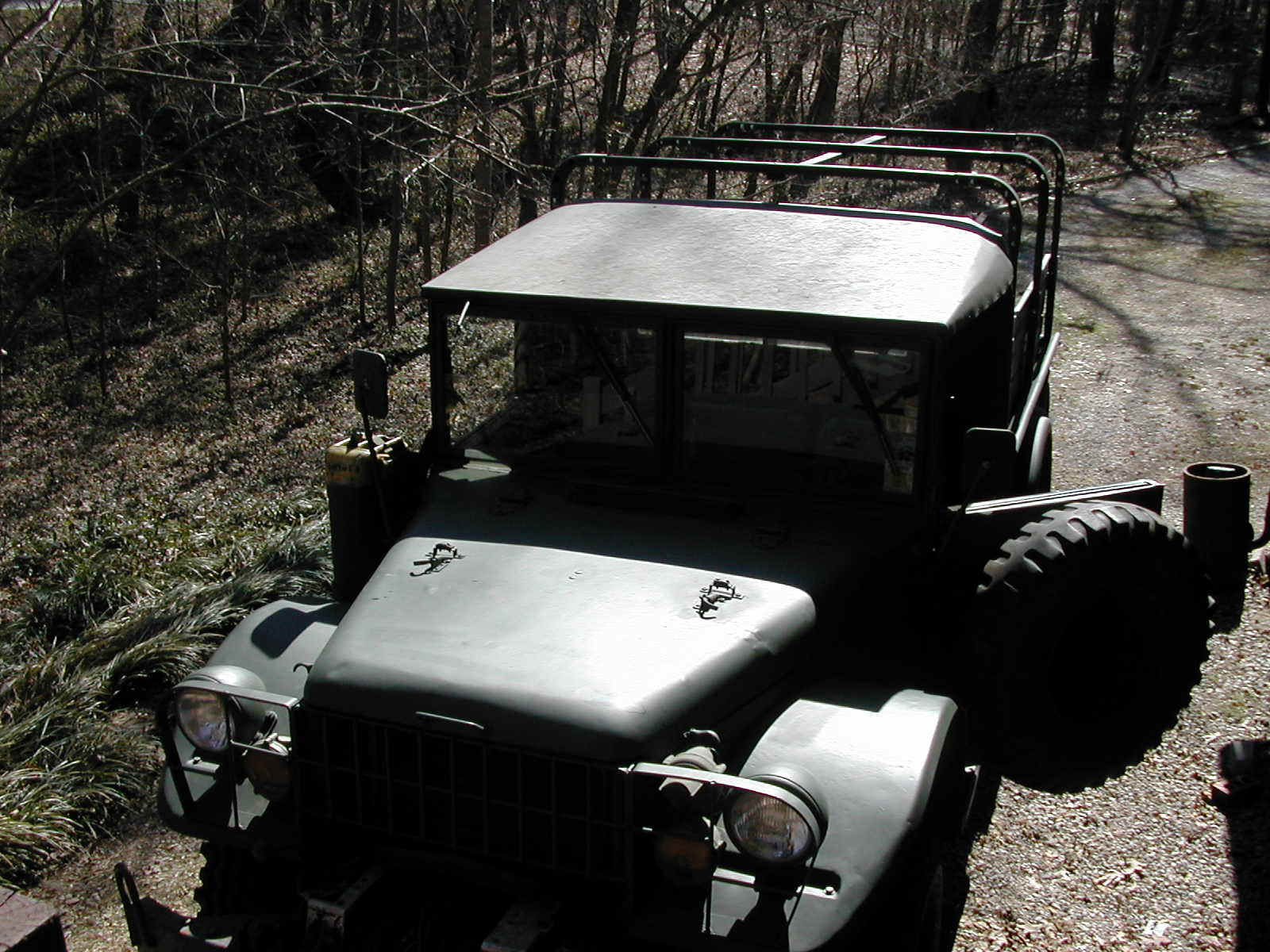

8 Truck in shadow.

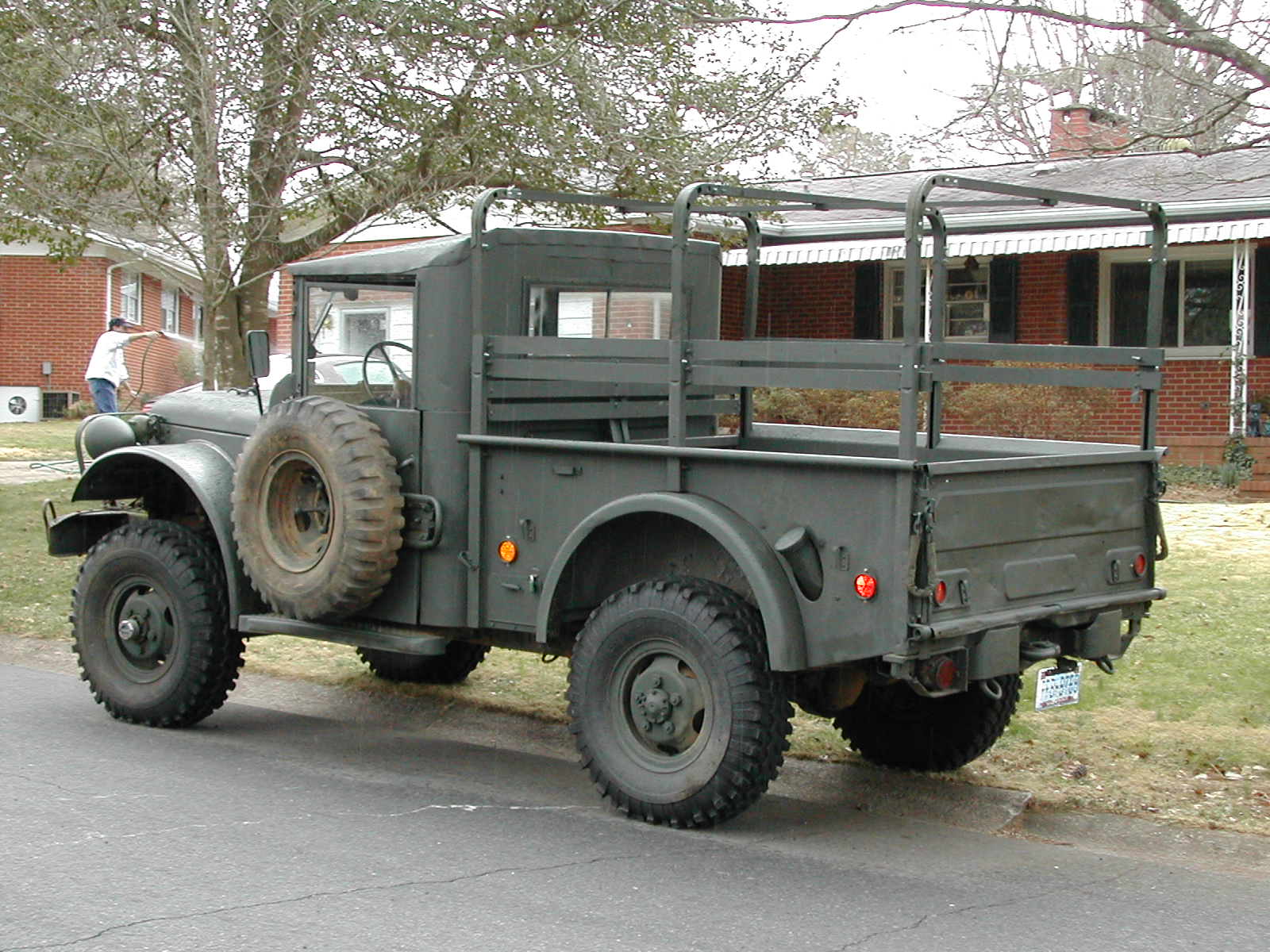

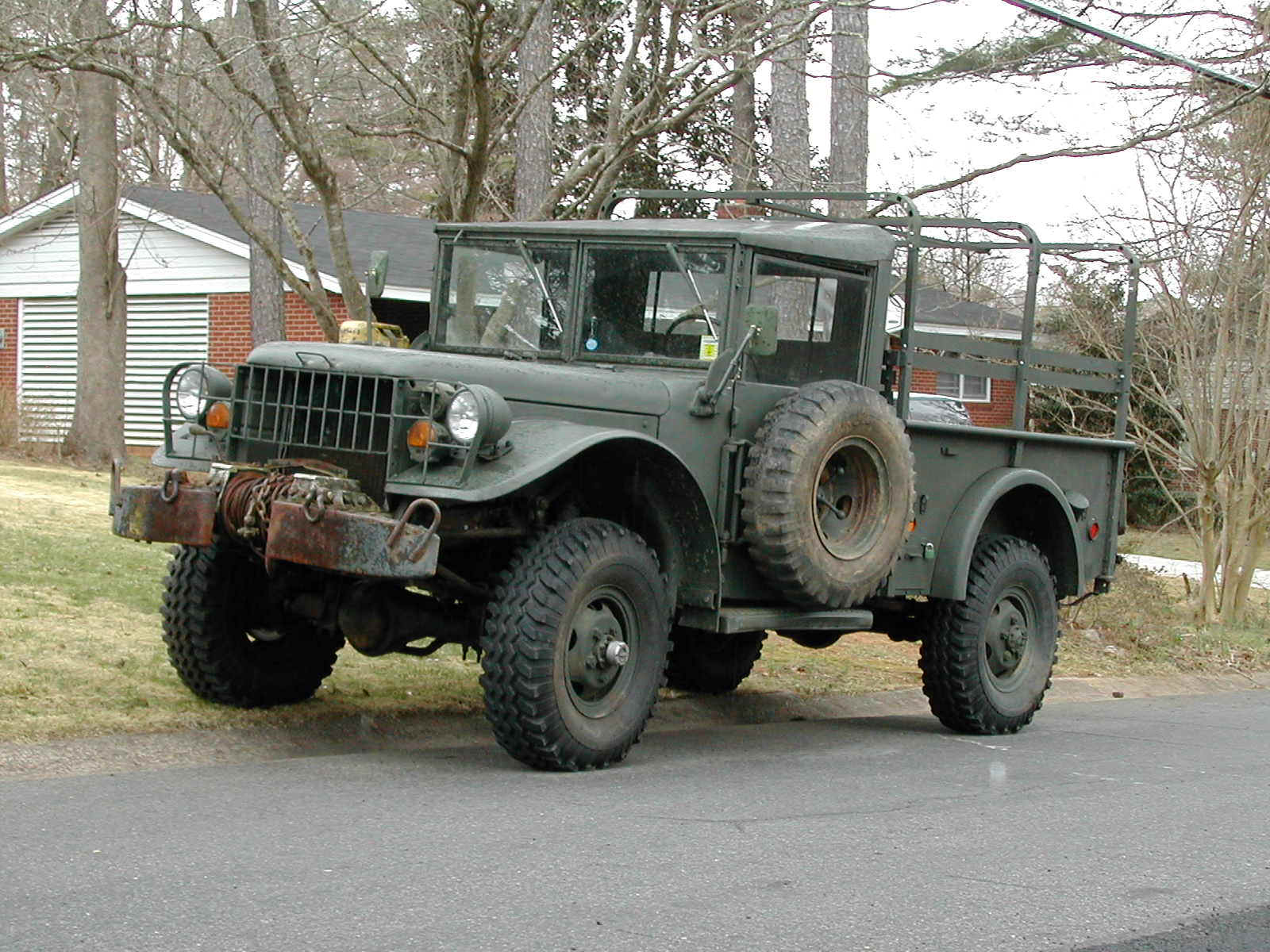

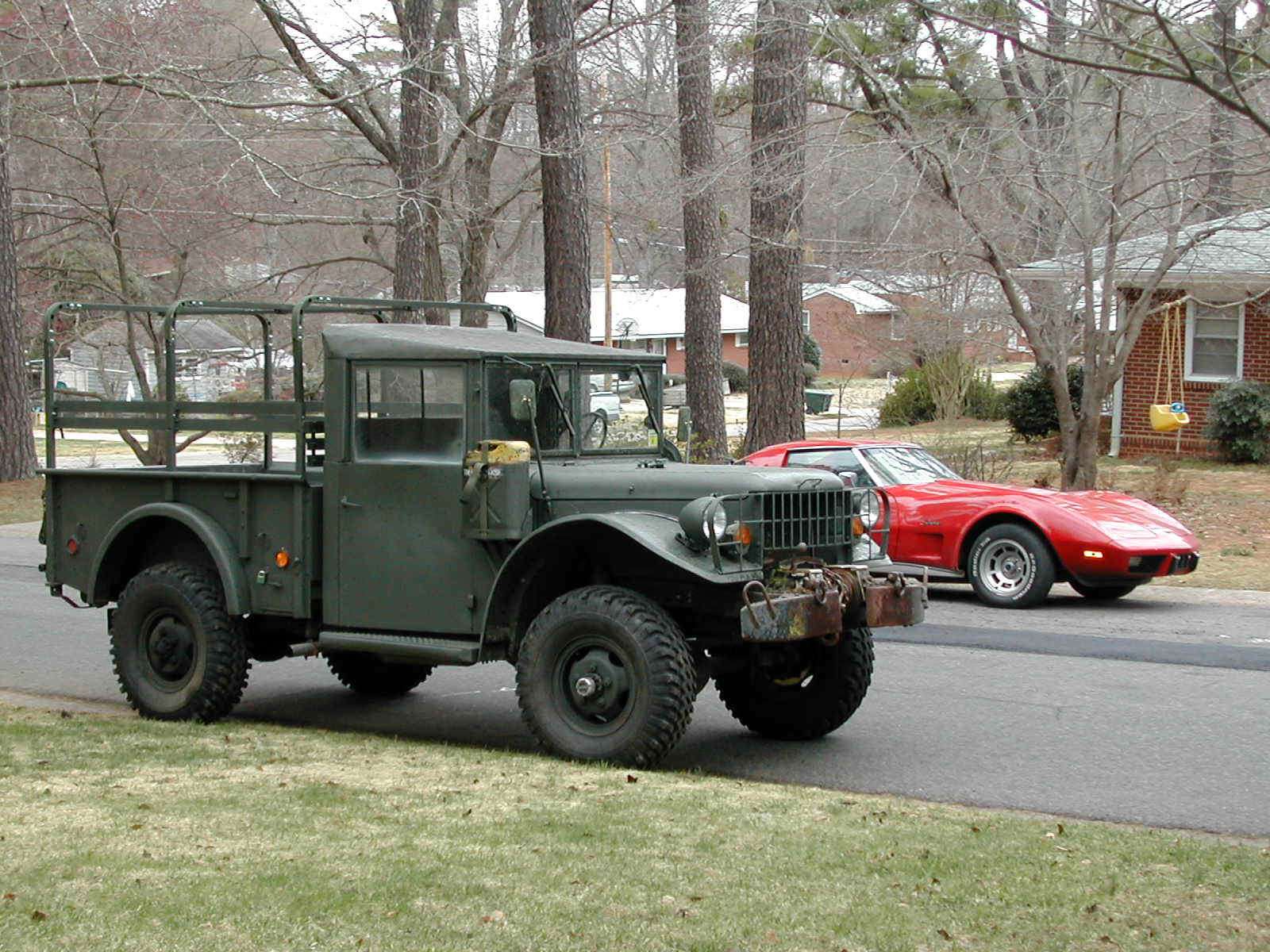

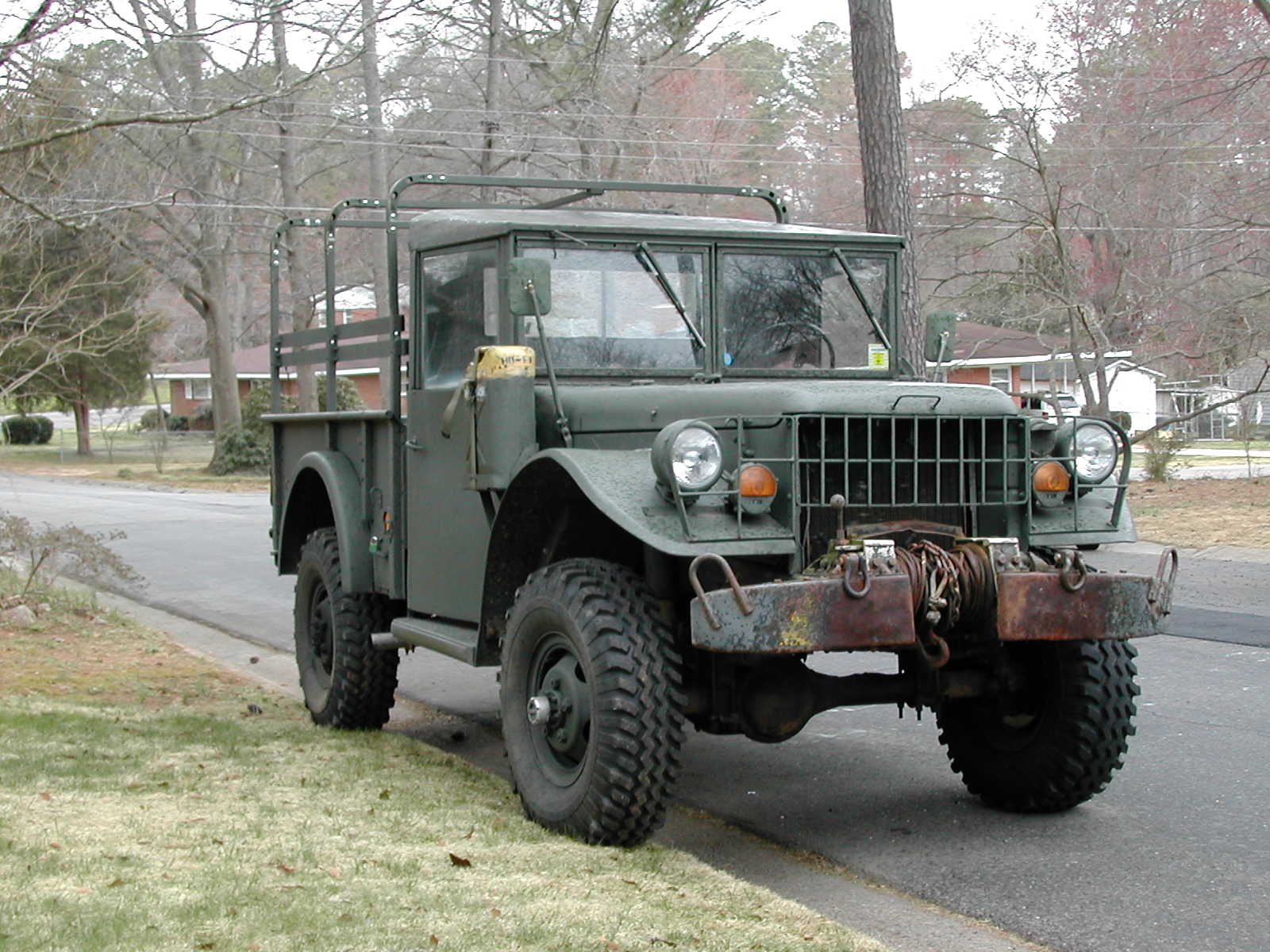

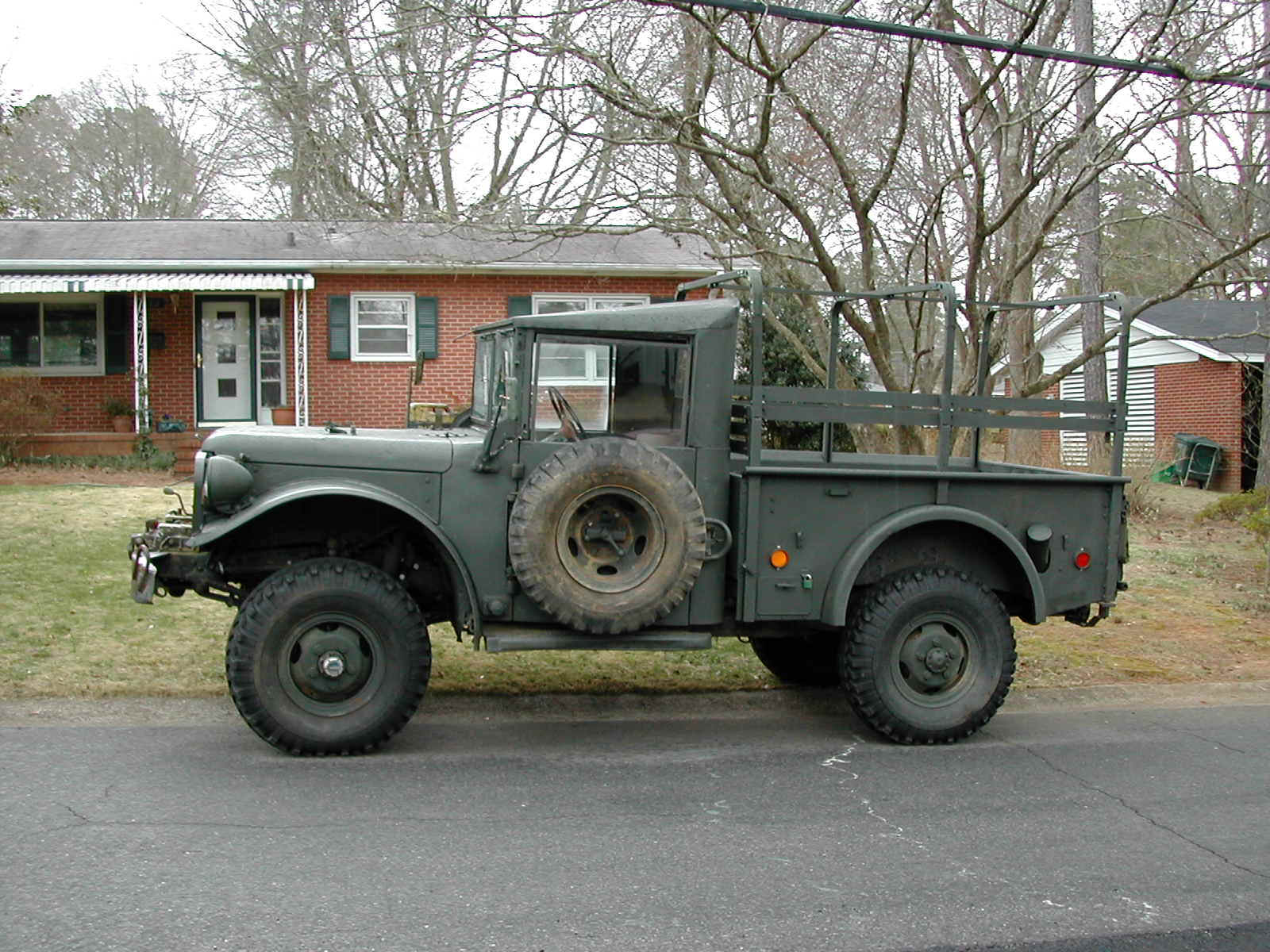

9-13 Truck at a friend's house across town...  February 2002.

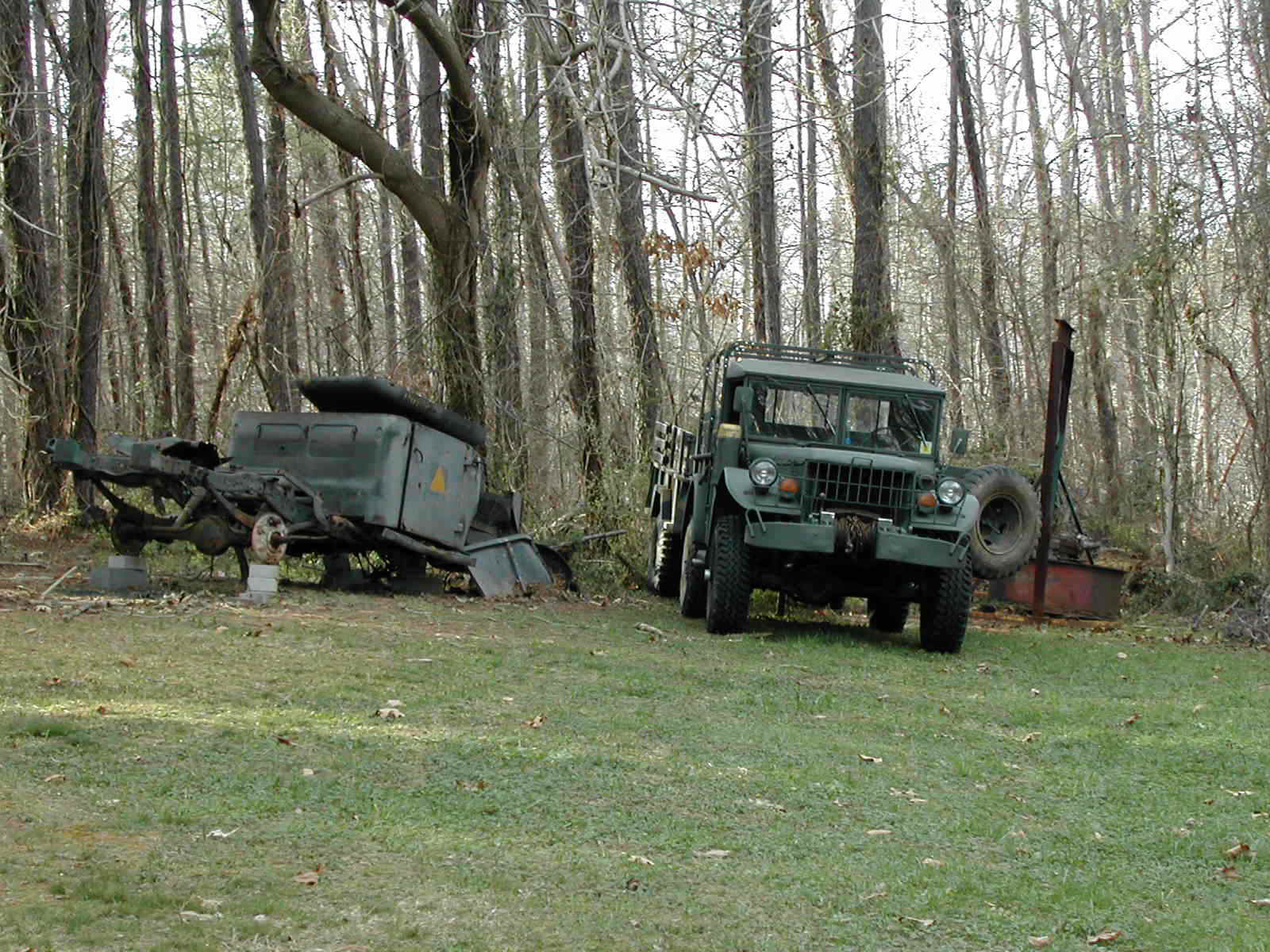

14 Backyard March 2002, hooking up to the M101 trailer.
