11Color, Markings, and Camouflage Painting
These are scans from TB 43-0209/Color, Markings, and Camouflage Painting of Military Vehicles, Construction Equipment and Materials Handling Equipment/October 1976 that were sent to me by Mark from the BigElectric M37 forum. Information given for the M715 and M38A1 is applicable for marking M37's that were still in use at the time that the manual was published.
| 1 |
2 |
3 |
4 |
| 5 |
6 |
7 |
8 |
| 9 |
10 |
11 |
| Image | Title |

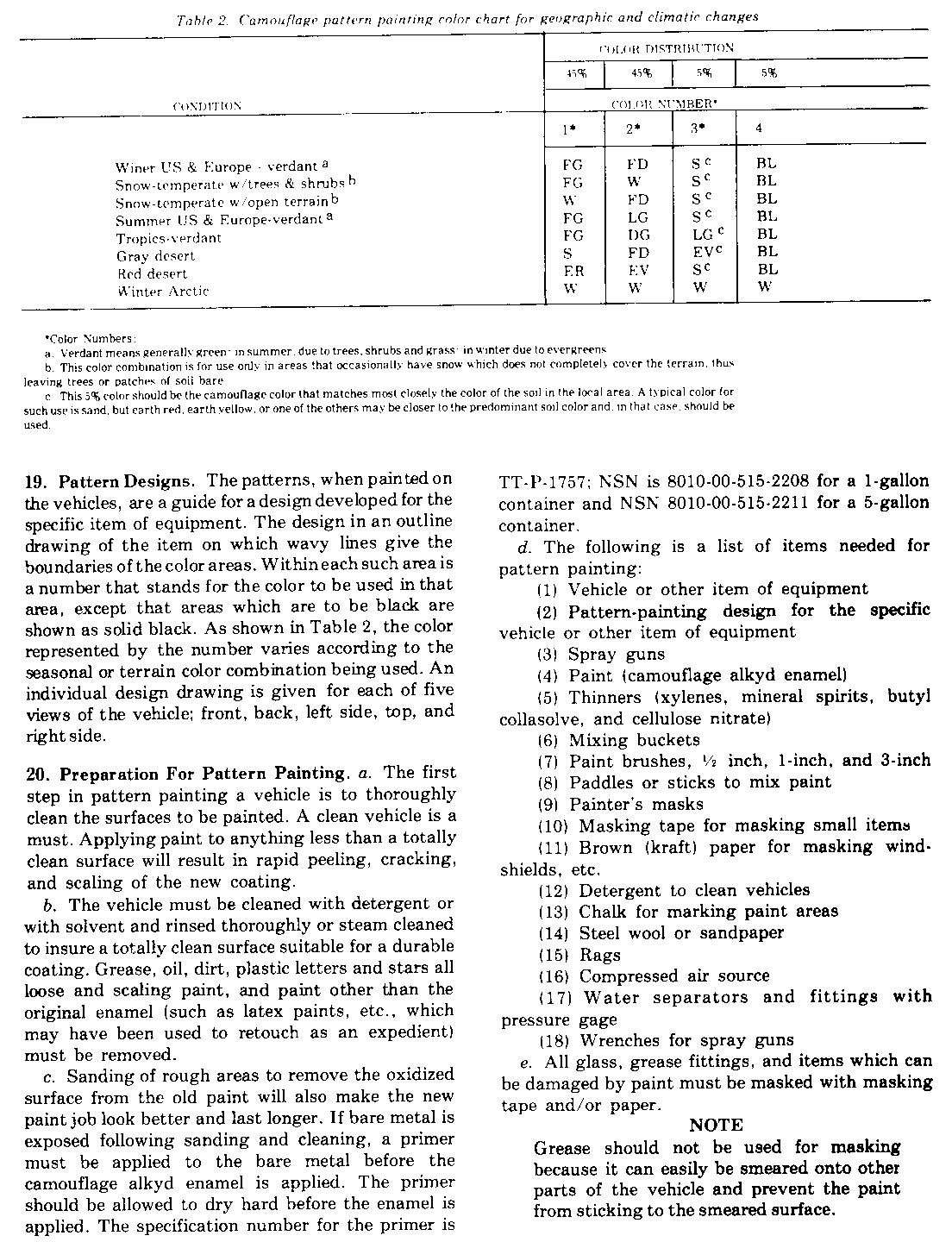

| 1 | Camo Pattern Painting Color Chart for Geographical & Climate Changes |

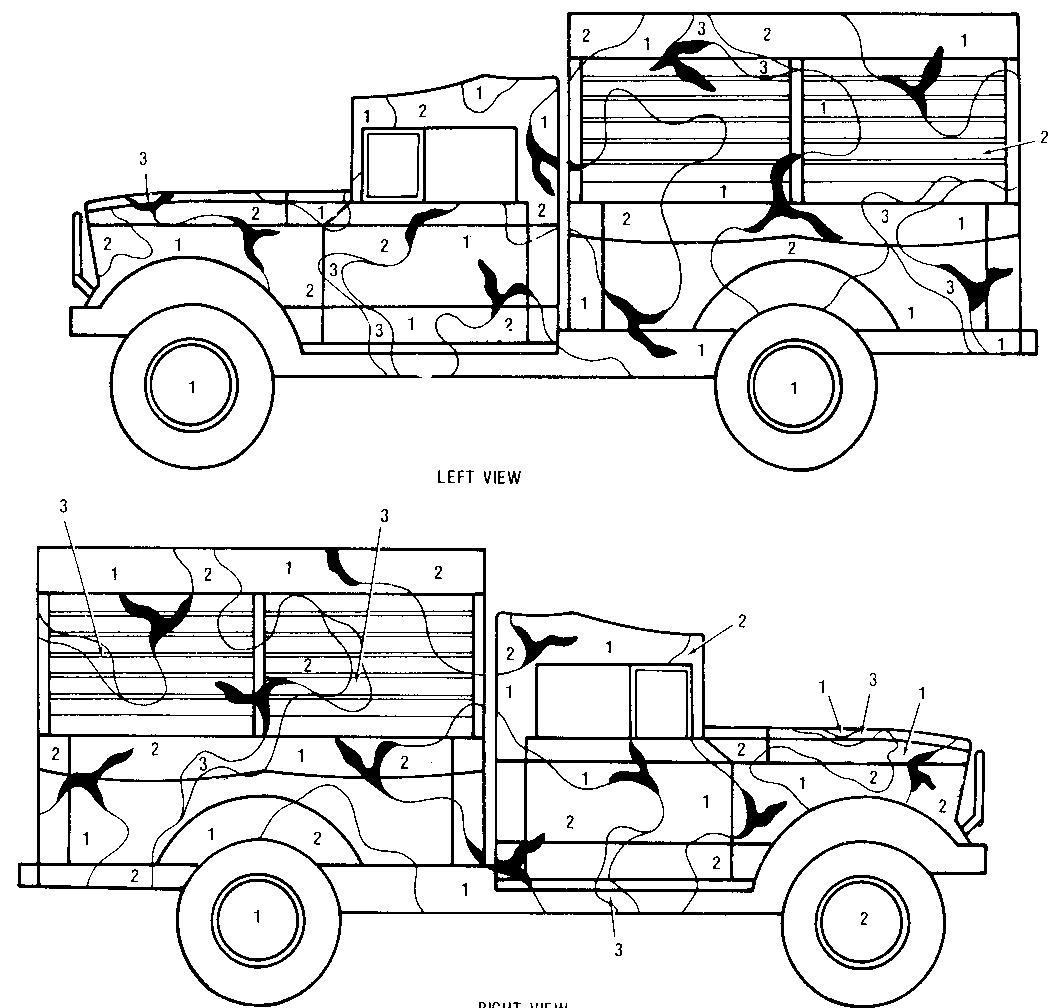

| 2 | M715 Camo Scheme Page 1 of 3 Layout Left & Right Sides (adapt for use on M37) |
| 3 | M715 Camo Scheme Layout Page 2 of 3 Front, Back & Top (adapt for use on M37) |
| 4 | M715 Camo Scheme Layout Page 3 of 3 Cab Back, Bed Right & Left Sides, Front Panel & Floor (adapt for use on M37) |

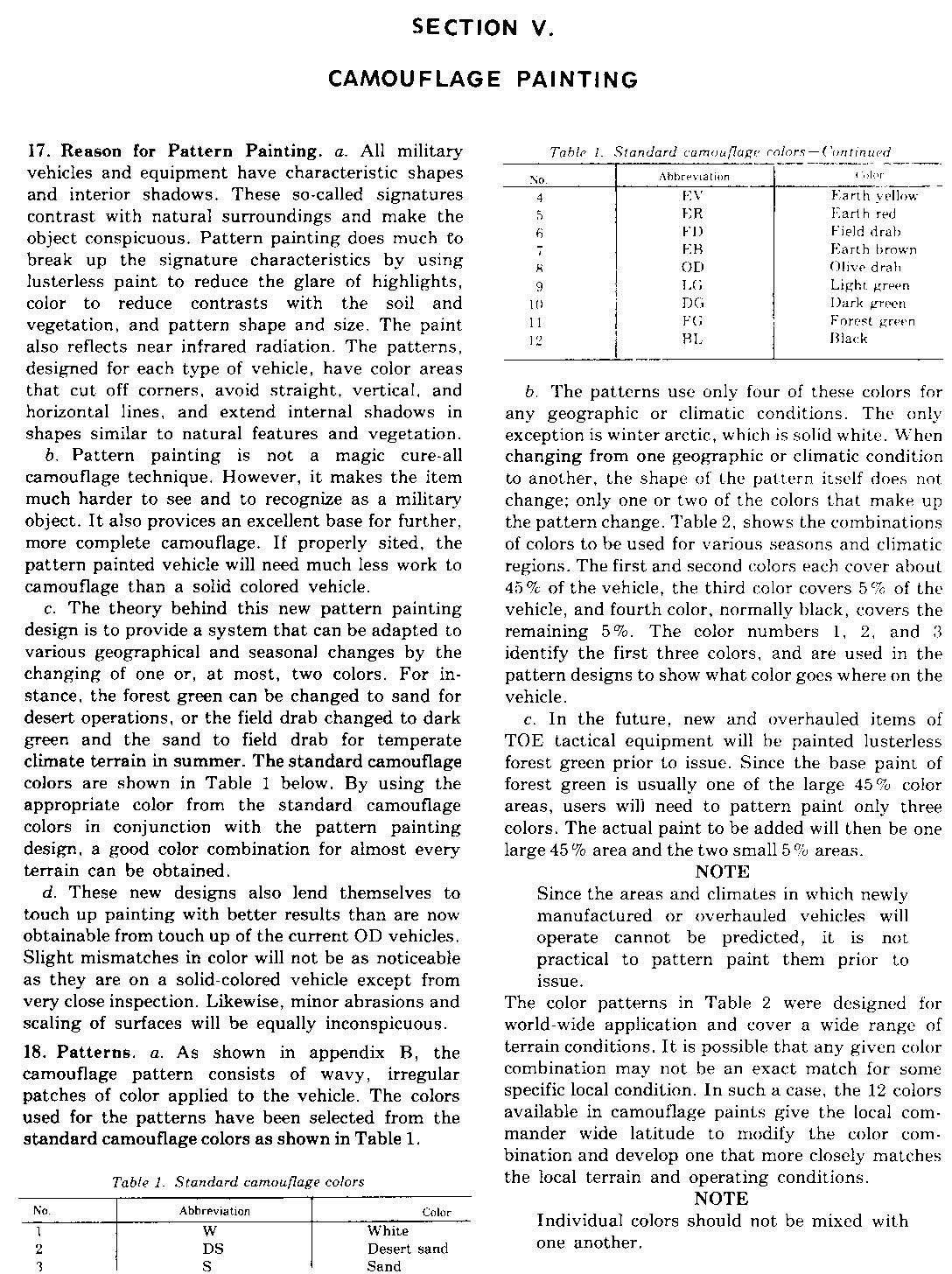

| 5 | Color with Abbreviations Page |

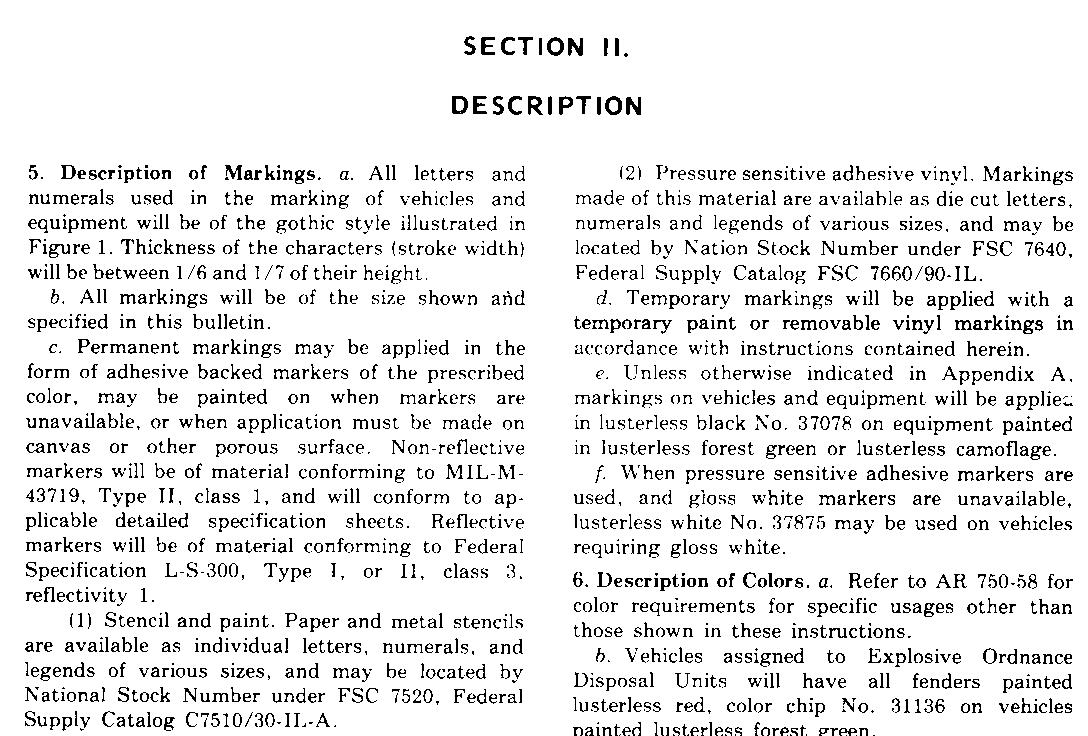

| 6 | Unit Identification Markings, Page 1 of 6 |

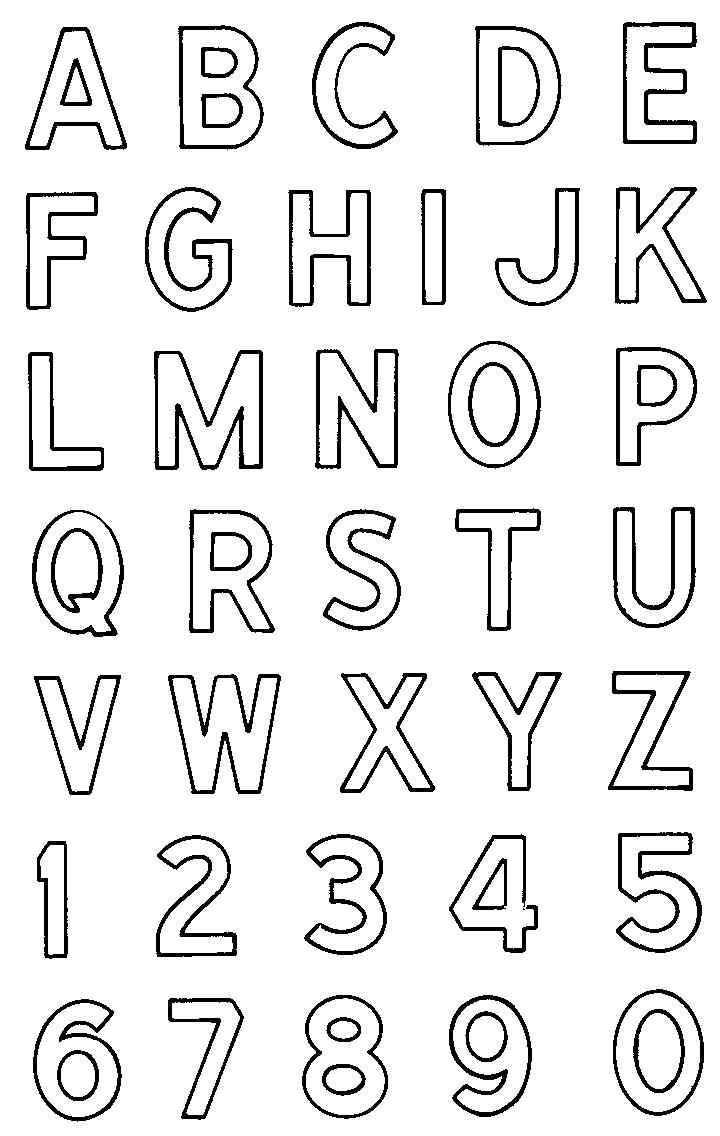

| 7 | Unit Identification Markings, Page 2 of 6, AlphaBet |

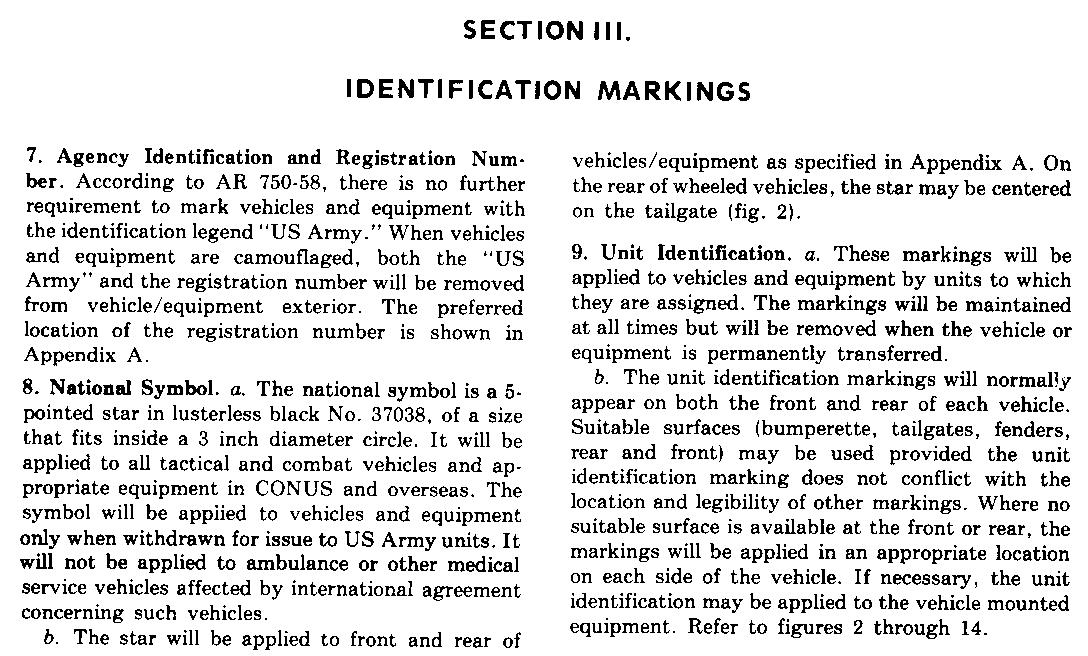

| 8 | Unit Identification Markings, Page 3 of 6, Registration Number & Star |

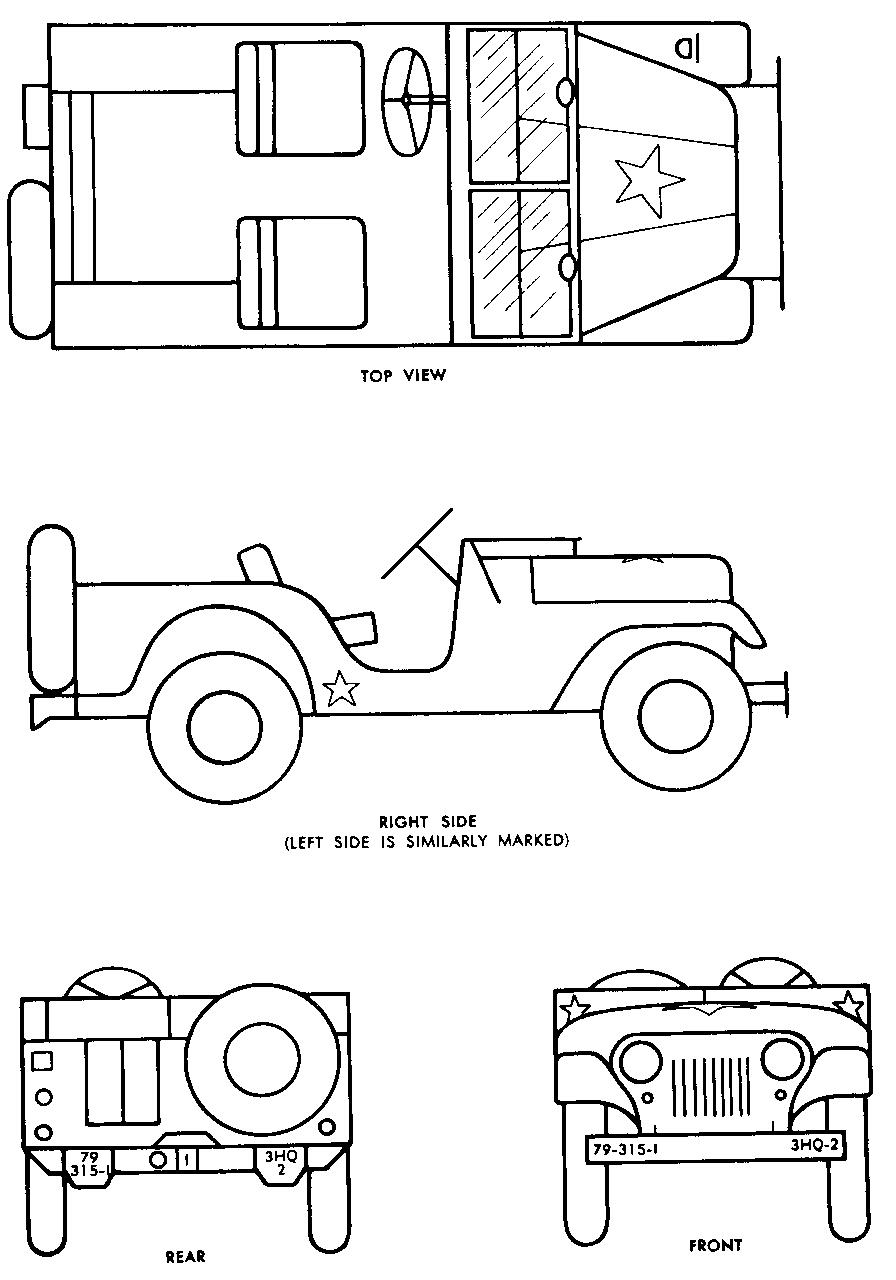

| 9 | Unit Identification Markings, Page 4 of 6, Registration Number & Star Location (M38A1 shown adapt for use on M37) |

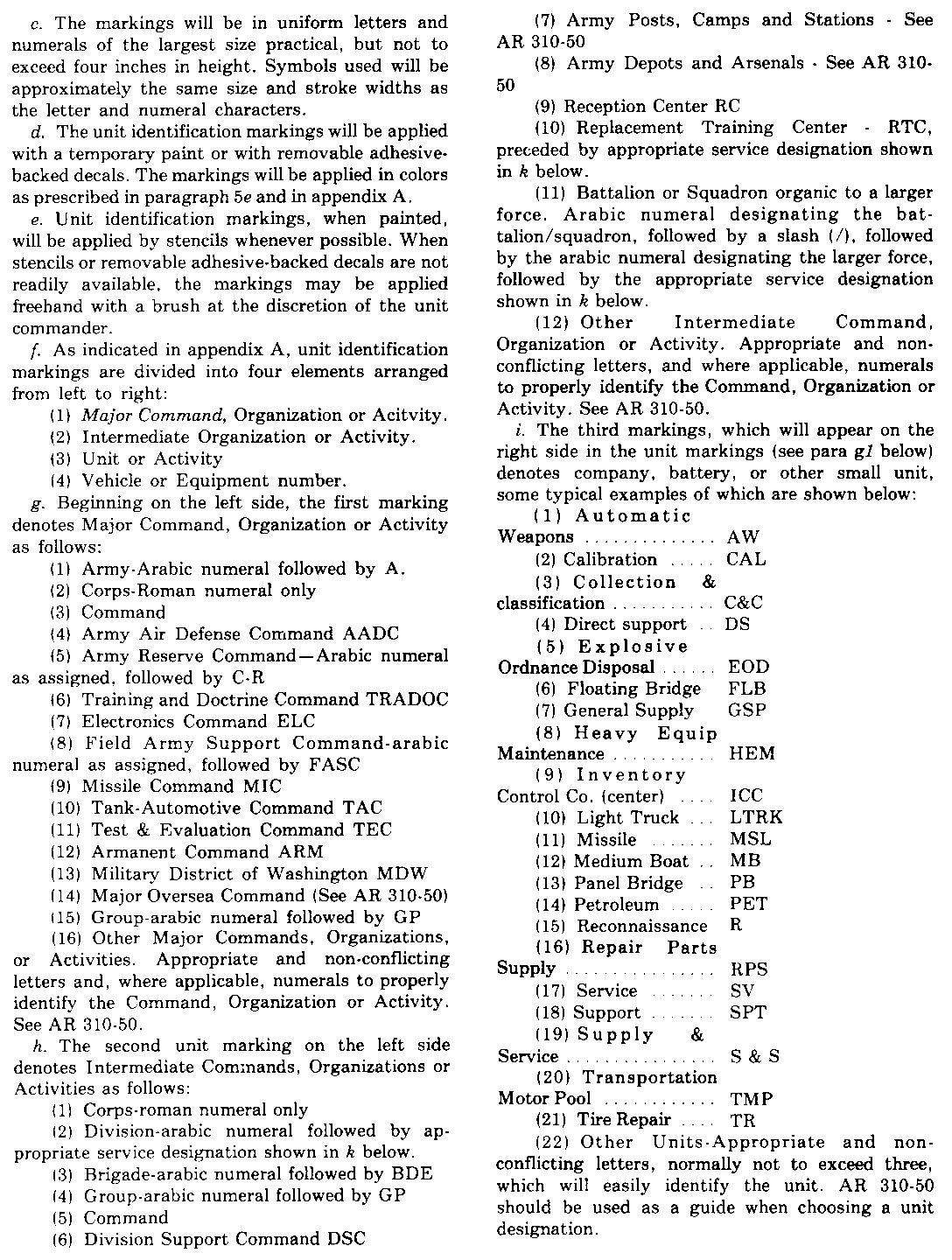

| 10 | Unit Identification Markings, Page 5 of 6 |

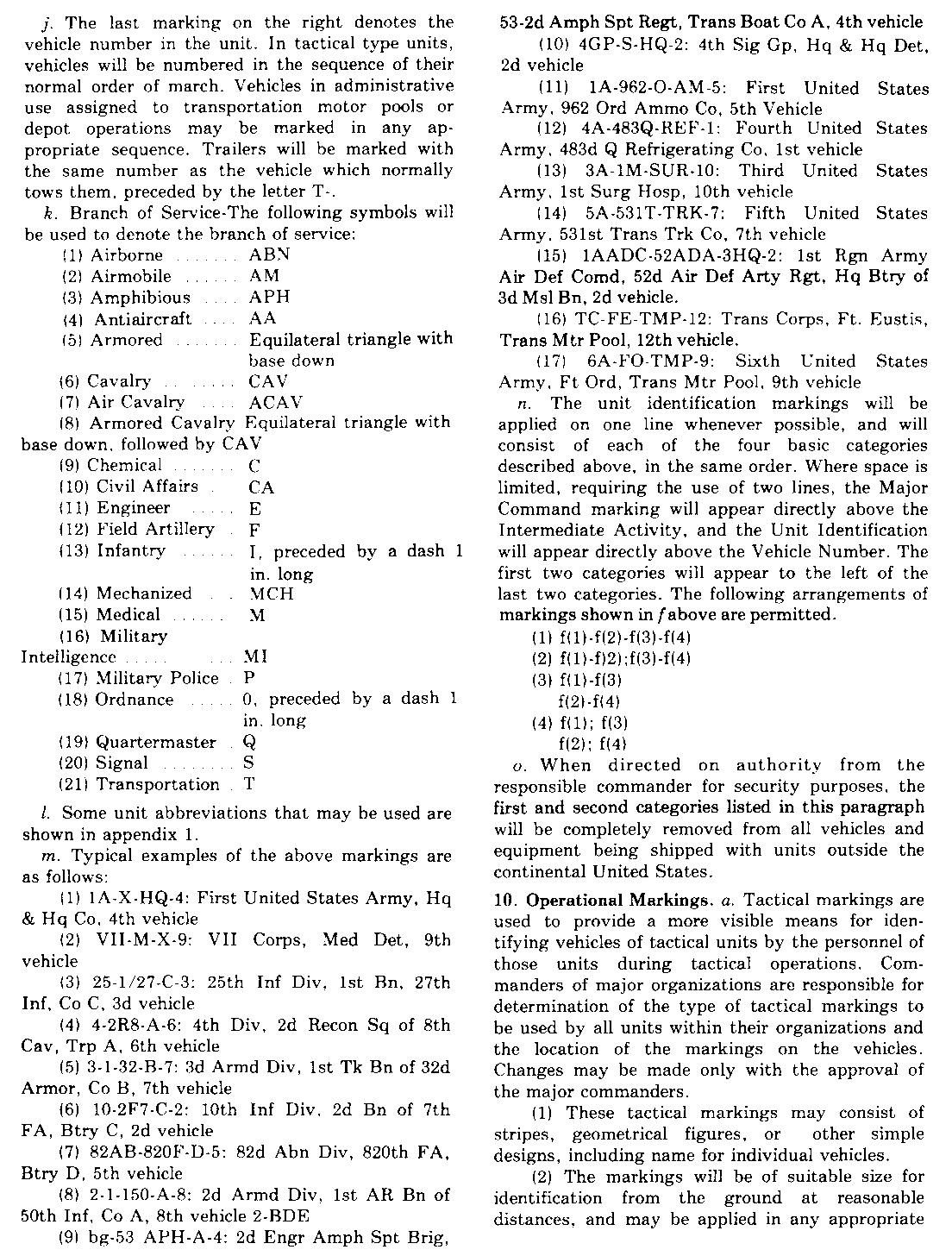

| 11 | Unit Identification Markings, Page 6 of 6 |
