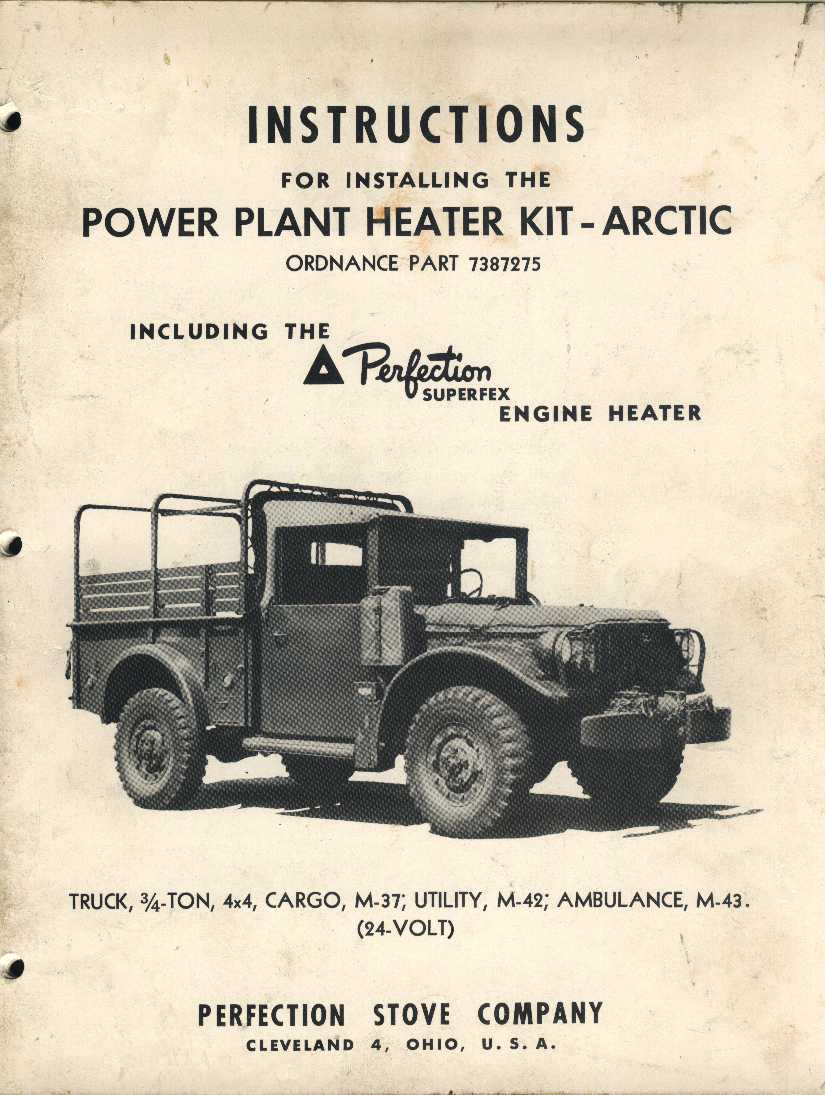

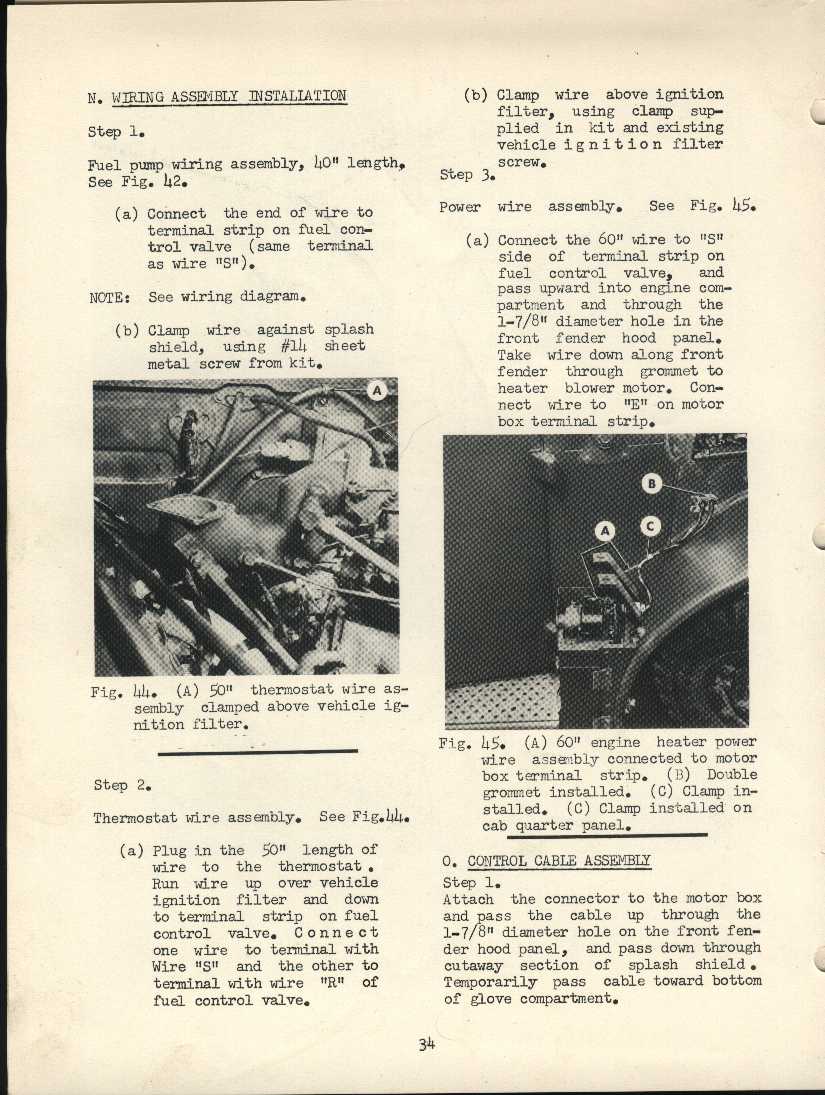

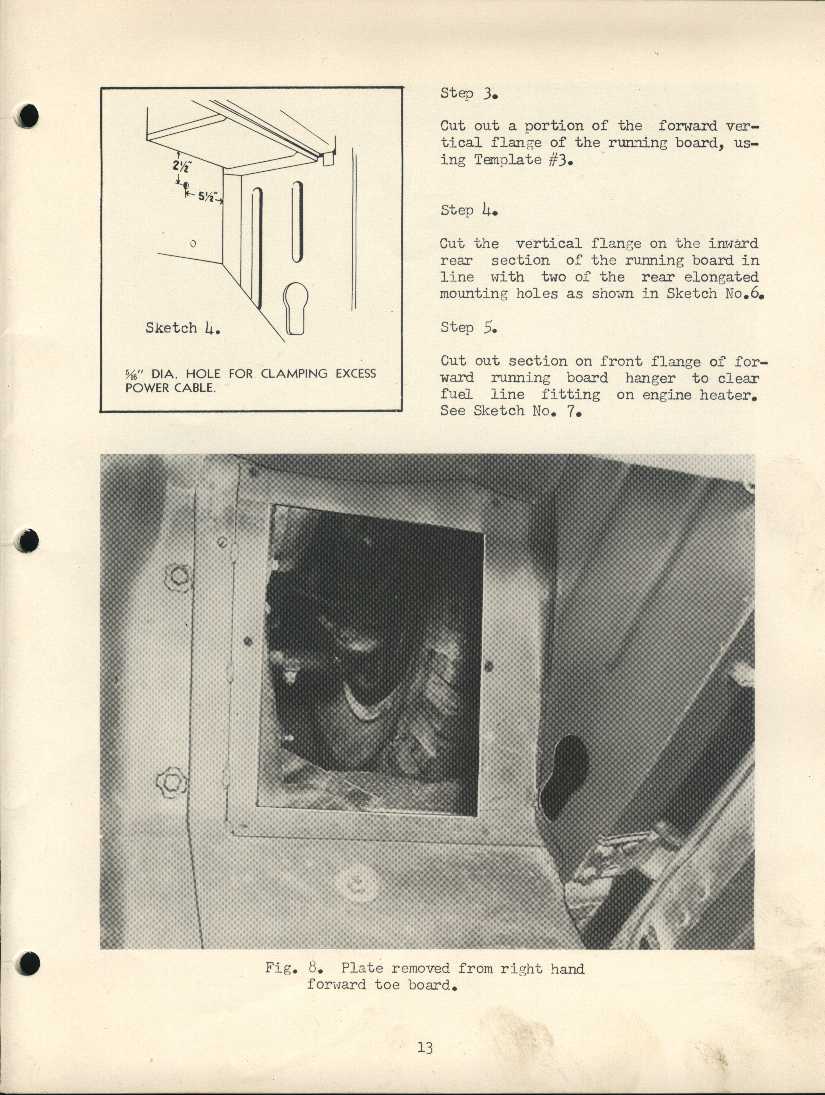

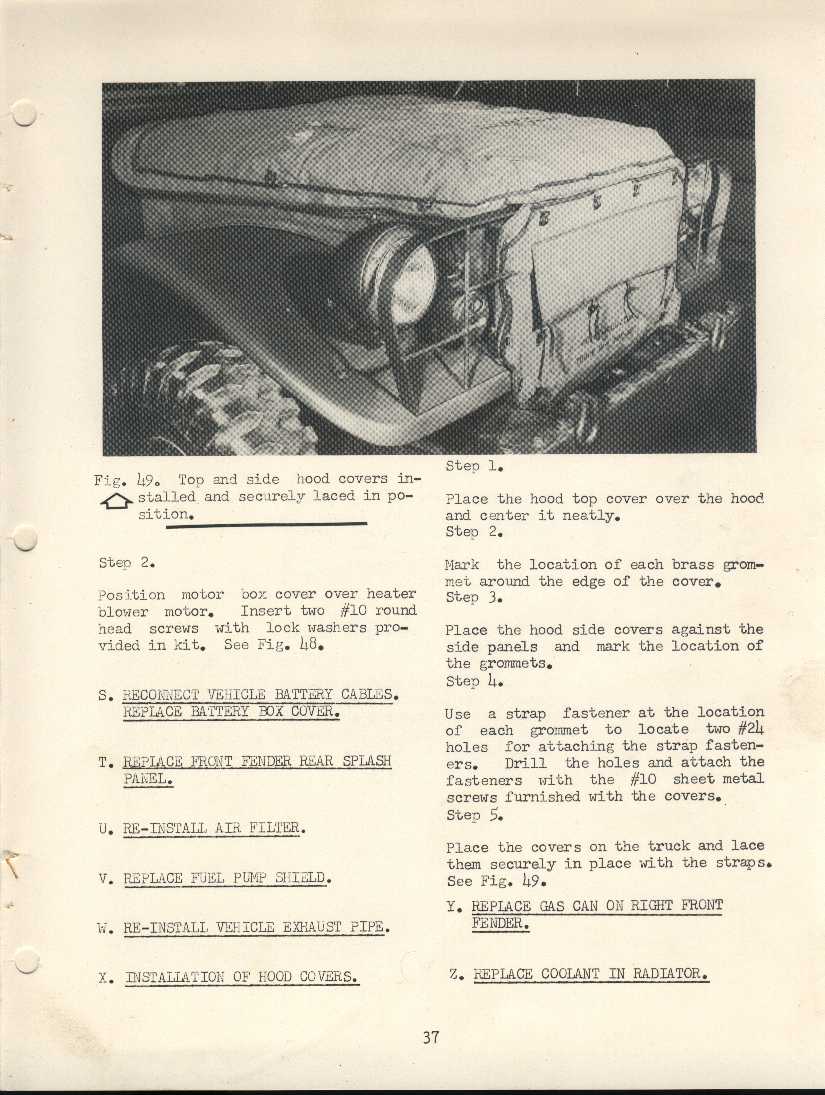

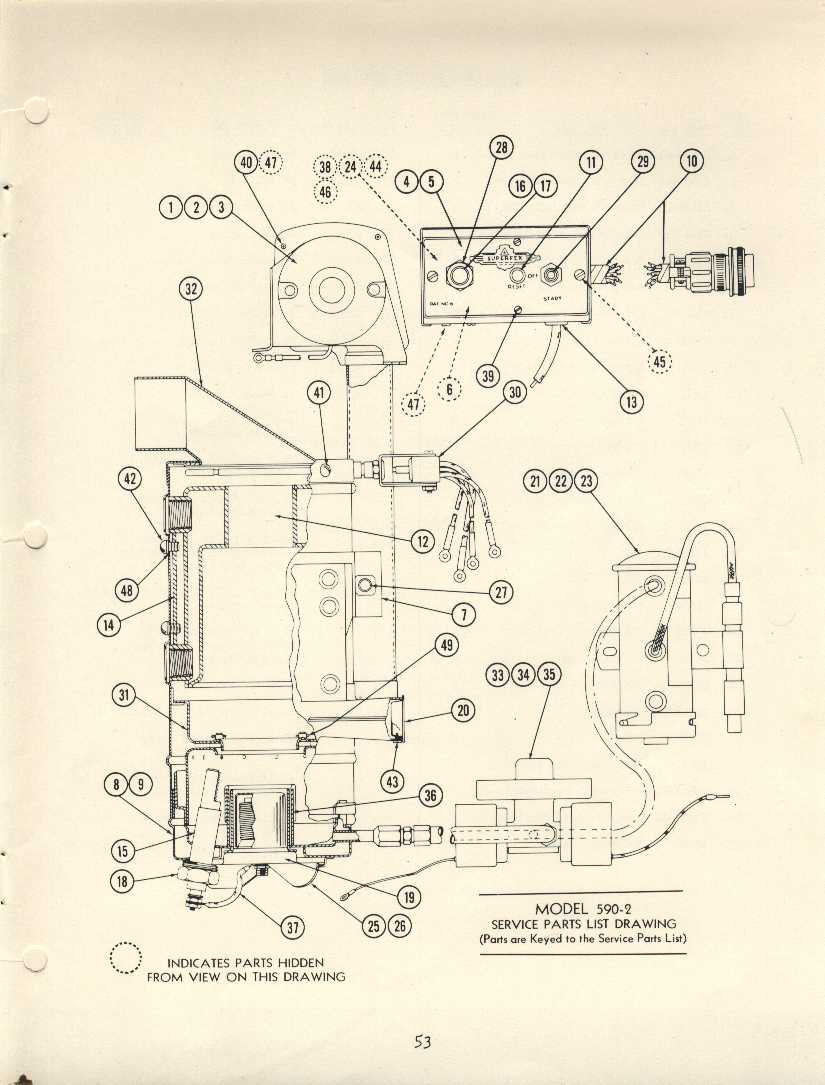

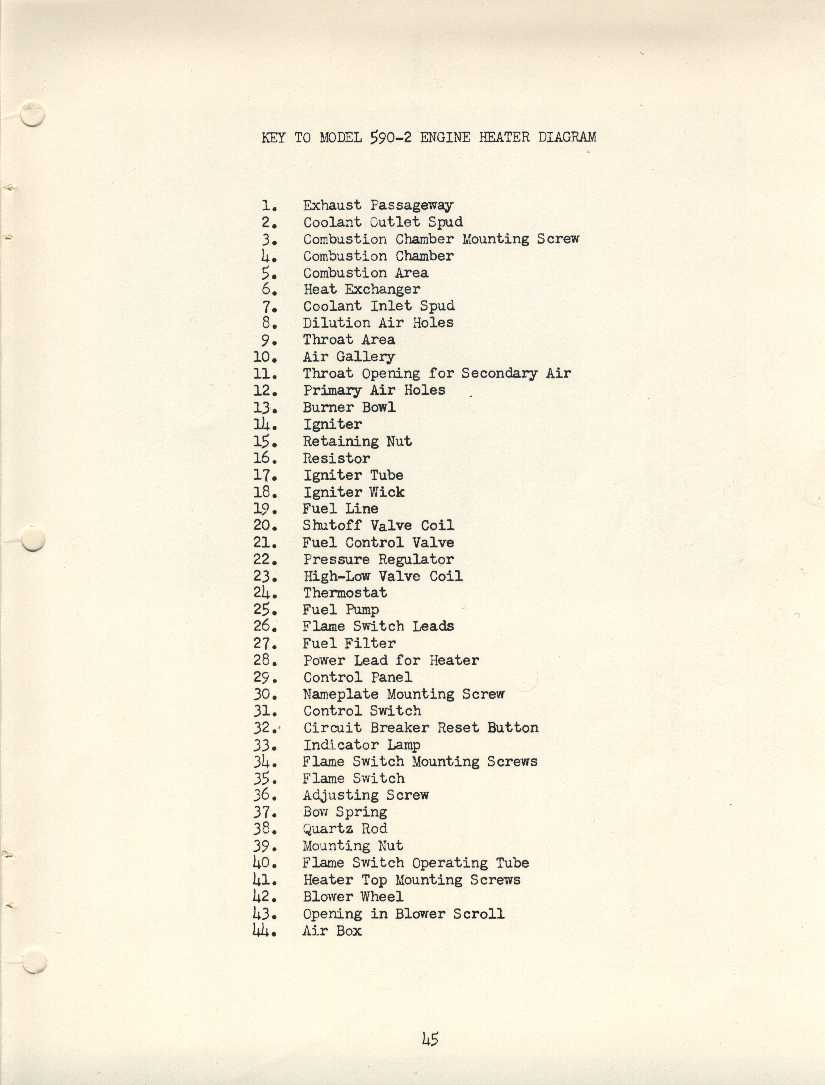

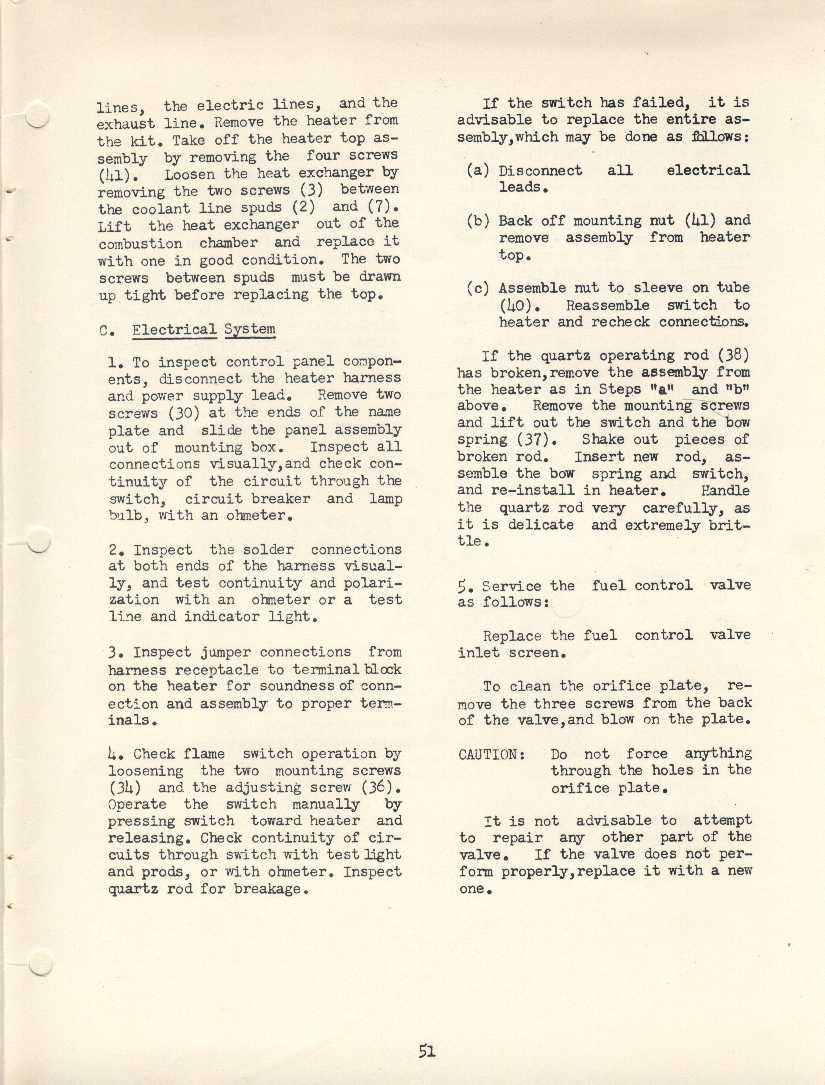

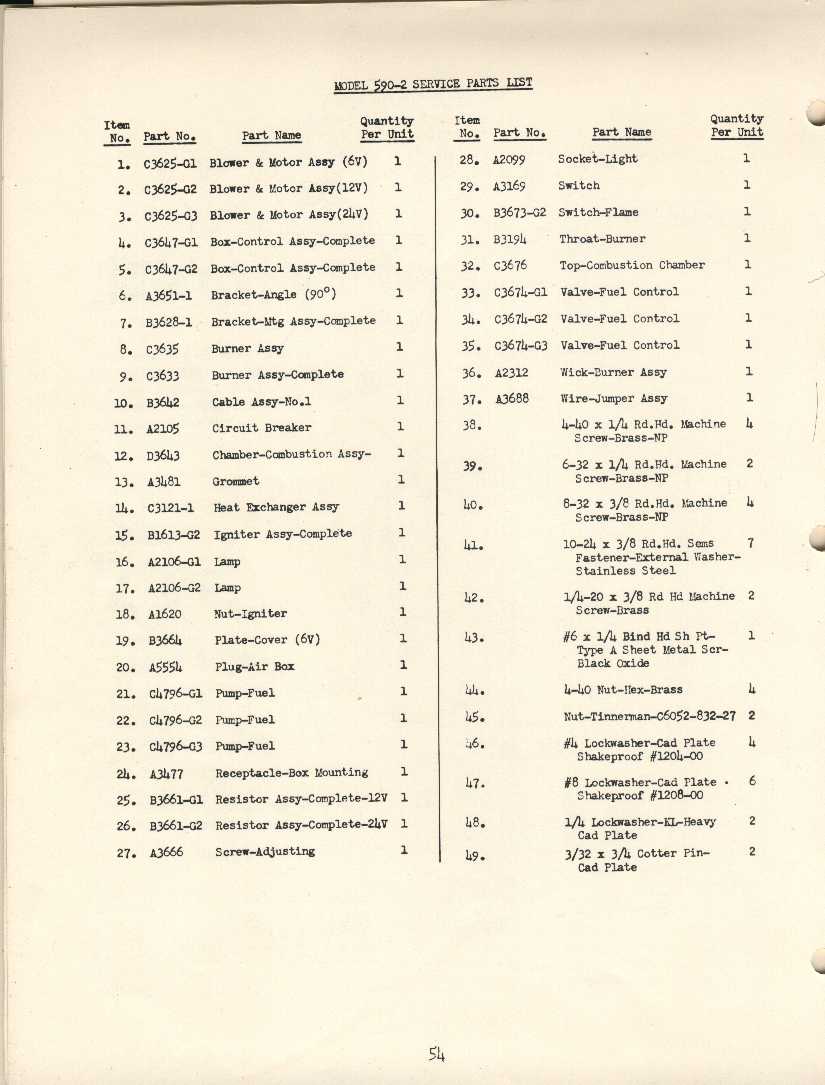

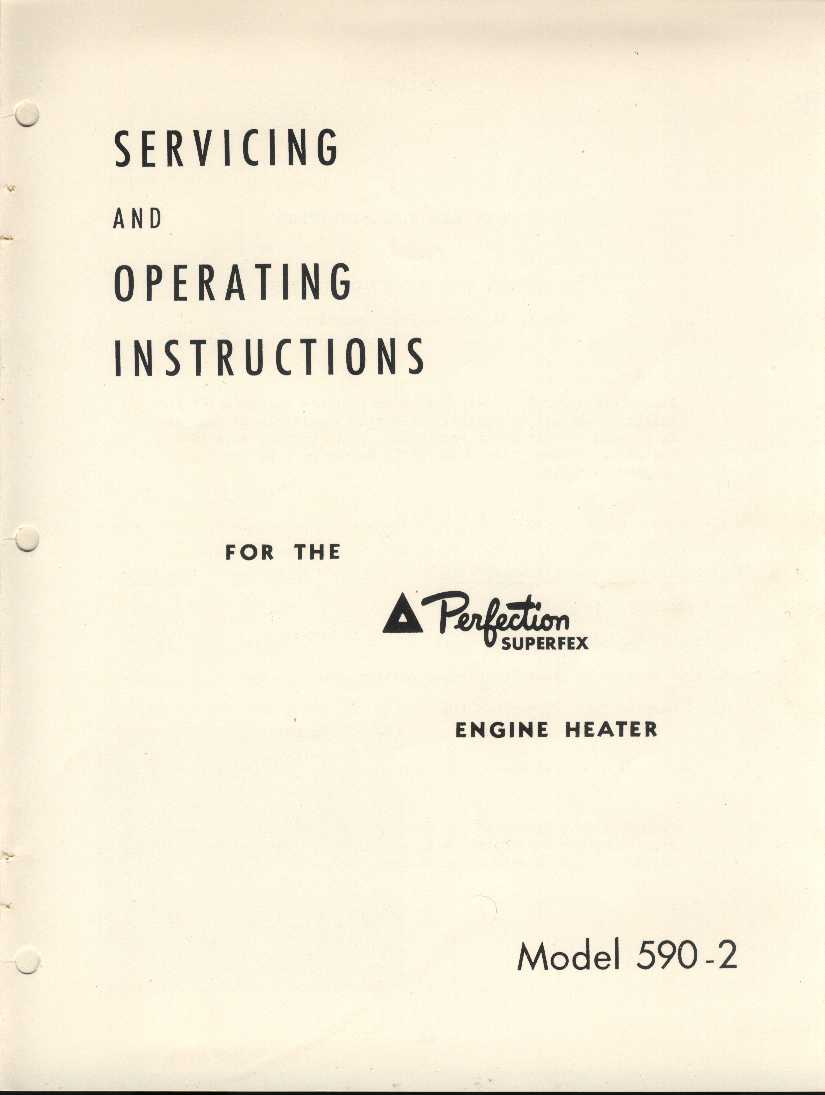

53Perfection Arctic Heater Kit Installation Instructions

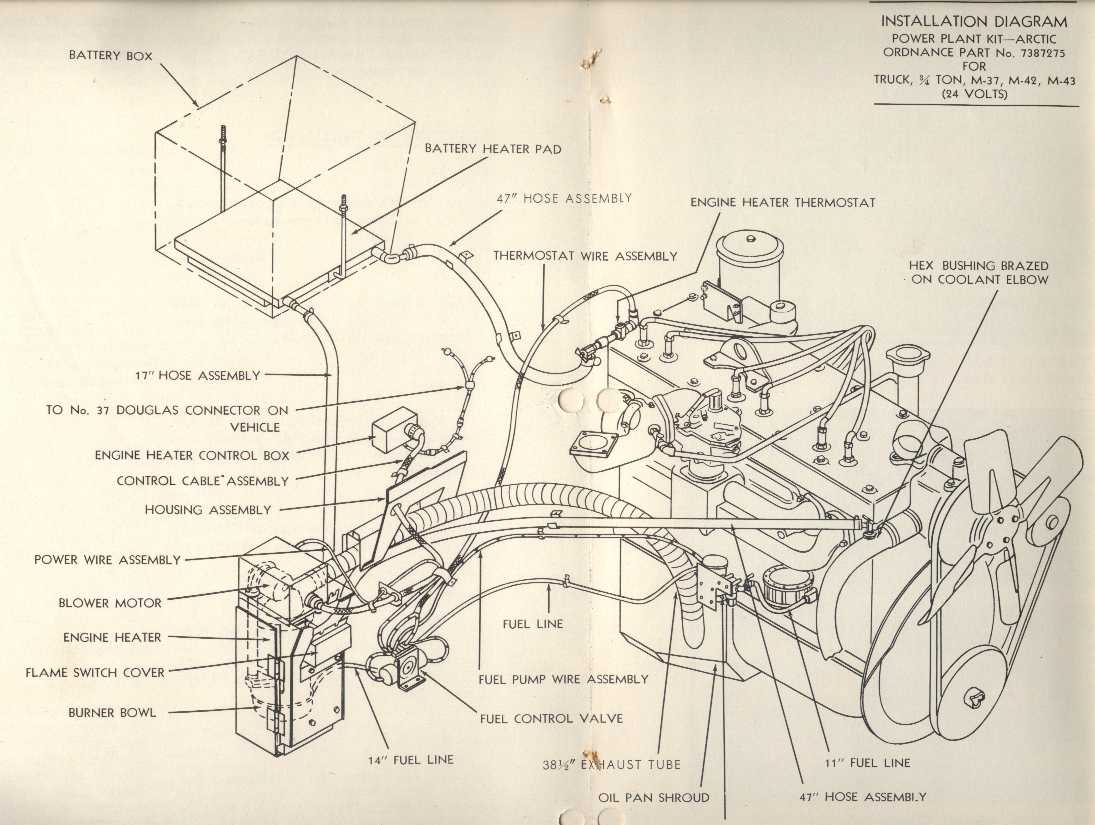

These are scans of the pages from the Perfection Arctic Heater Kit Installation Instructions that were sent to me by Bruce in Australia. This is the gas fired unit that circulated warmed coolant through the engine and battery tray. Its exhaust was routed via a duct down to the "box" that surrounded the oil pan in order to assist in warming the oil as well.
|
1 |
2 |
3 |
4 |
| 5 |
6 |
7 |
8 |
9 |
| 10 |
11 |
12 |
13 |
14 |
| 15 |
16 |
17 |
18 |
19 |
| 20 |
21 |
22 |
23 |
24 |
| 25 |
26 |
27 |
28 |
29 |
| 30 |
31 |
32 |
33 |
34 |
| 35 |
36 |
37 |
38 |
39 |
| 40 |
41 |
42 |
43 |
44 |
| 45 |
46 |
47 |
48 |
49 |
| 50 |
51 |
52 |
53 |
